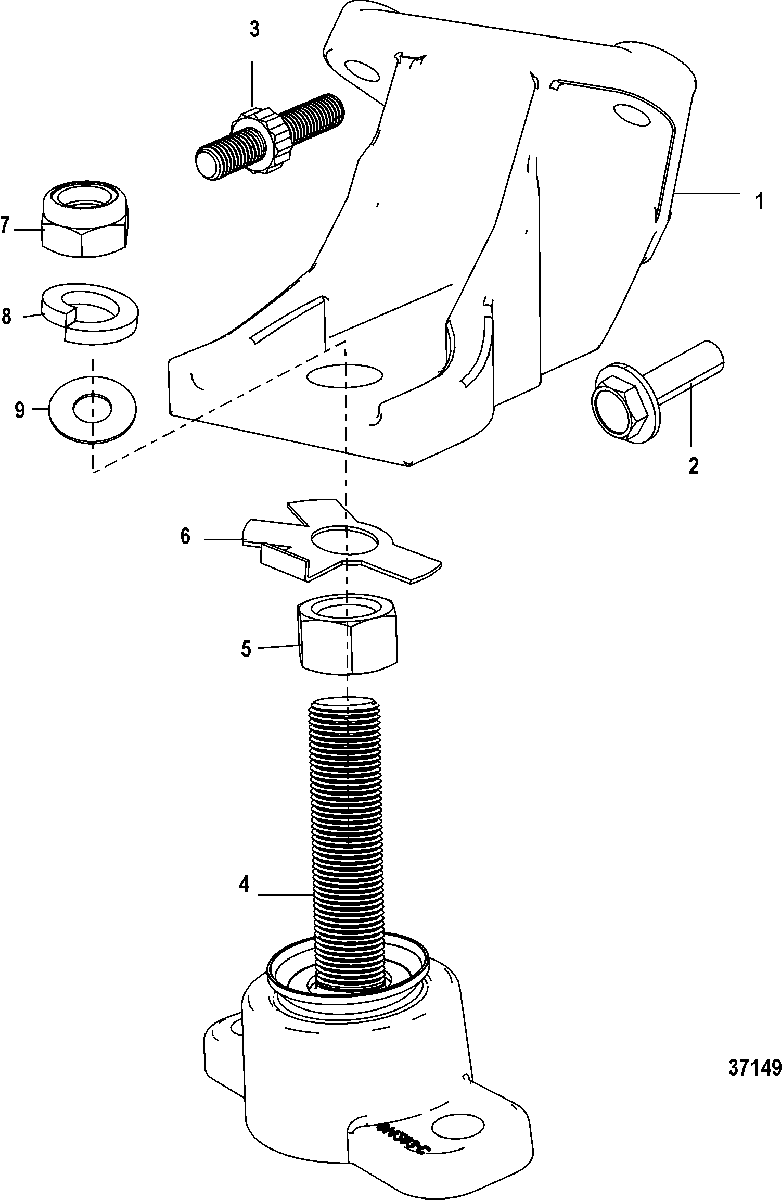

Engine Mounts для Mercruiser - 496 MAG EC (Base Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
179550A1 BRACKET, Engine MountingBRACKET, Engine Mounting
-
210-40001197 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
316-861580 STUD, Double Ended Metric
PortSTUD, Double Ended Metric
Port -
310-40001195 SCREW, (M10 x 30)
StarboardSCREW, (M10 x 30)
Starboard -
4814263A1 BASE ASSEMBLYBASE ASSEMBLY
-
4866708T01 BASE ASSEMBLY
(SEACORE)BASE ASSEMBLY
(SEACORE) -
511-816331 NUT, (.750-16), JamNUT, (.750-16), Jam
-
511-866710 NUT, (.750-16) Stainless Steel
(SEACORE)NUT, (.750-16) Stainless Steel
(SEACORE) -
614-12657 TAB WASHERTAB WASHER
-
711-859126 NUT, (.750-16), JamNUT, (.750-16), Jam
-
711-18304 NUT, Jam
(SEACORE)NUT, Jam
(SEACORE) -
813-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
-
813-33164 LOCKWASHER, Stainless (.750)
(SEACORE)LOCKWASHER, Stainless (.750)
(SEACORE) -
912-44164 WASHER
(SEACORE)WASHER
(SEACORE)
