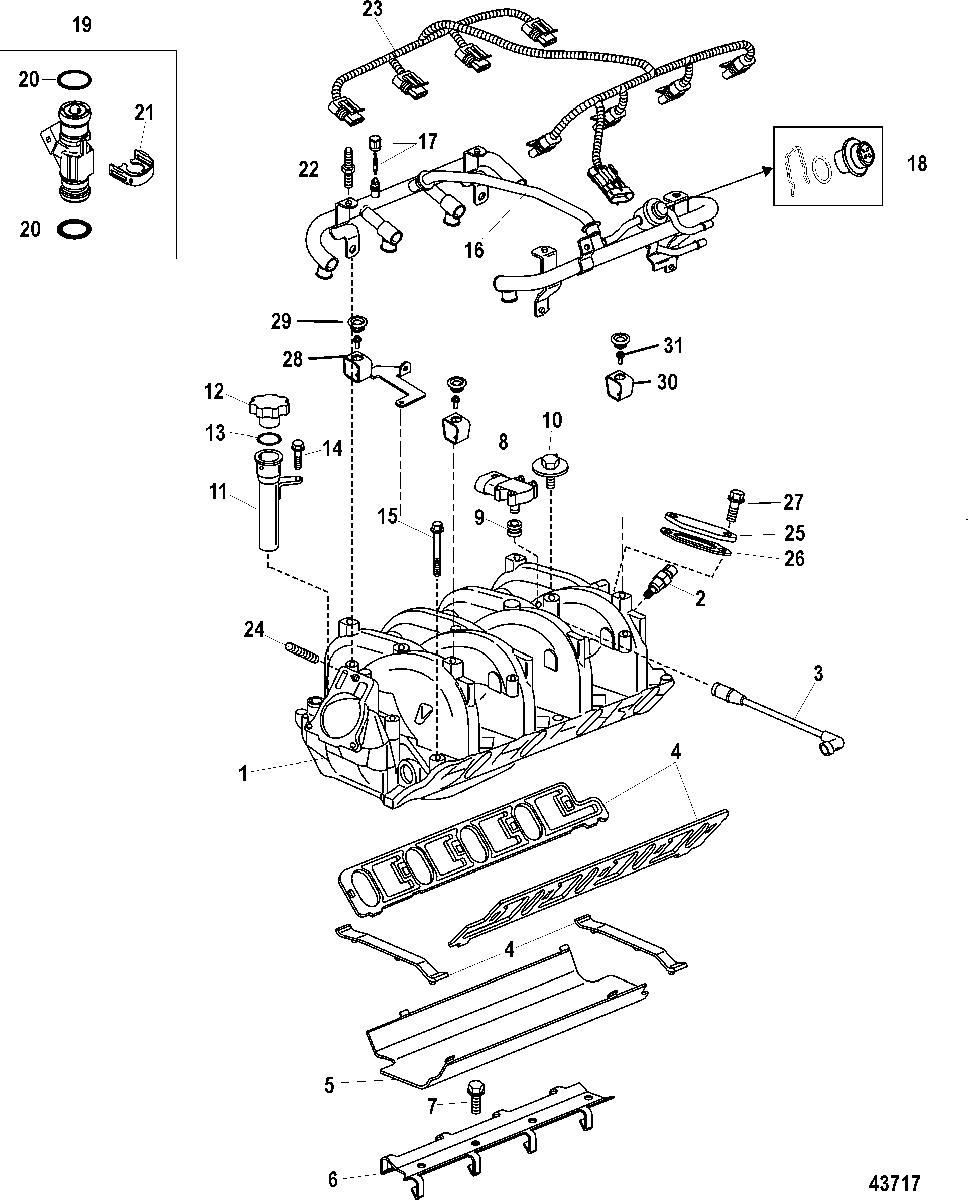

Intake Manifold для Mercruiser - 496 MAG EC (Base Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
18M0064079 MANIFOLD, IntakeMANIFOLD, Intake
-
2805223T SENSORSENSOR
-
332-881734 HOSE, Fuel Pressure RegulatorHOSE, Fuel Pressure Regulator
-
427-895235 GASKET SET, Intake Manifold and ValleyGASKET SET, Intake Manifold and Valley
-
5881689 SHIELD, Oil SplashSHIELD, Oil Splash
-
68M0050807 RETAINER, Valve Lifter GuideRETAINER, Valve Lifter Guide
-
710-881570 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
88M0054726 SENSOR, Manifold Air PressureSENSOR, Manifold Air Pressure
-
925-881733 SEAL, Manifold Air Pressure SensorSEAL, Manifold Air Pressure Sensor
-
1010-881646 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
11864996 TUBE, Oil FillTUBE, Oil Fill
-
12864997 CAP, Oil Fill TubeCAP, Oil Fill Tube
-
13NSS NOT SOLD SEPARATE, Seal, Oil Fill CapNOT SOLD SEPARATE, Seal, Oil Fill Cap
-
1410-881645 BOLT, (M6 x 20), Oil Fill TubeBOLT, (M6 x 20), Oil Fill Tube
-
1510-895234001 SCREW, (M6 x 73)SCREW, (M6 x 73)
-
168M0132702 FUEL RAIL, Fuel InjectionFUEL RAIL, Fuel Injection
-
1722-802631 VALVE AND CAP KIT, Fuel Pressure PortVALVE AND CAP KIT, Fuel Pressure Port
-
188M0046753 REGULATOR KIT, Fuel PressureREGULATOR KIT, Fuel Pressure
-
19881693002 INJECTOR, 3 hole pintleINJECTOR, 3 hole pintle
-
19881693001 INJECTOR, 2 hole pintleINJECTOR, 2 hole pintle
-
2025-881694001 SEAL KITSEAL KIT
-
21881695001 RETAINER KIT, Fuel InjectorRETAINER KIT, Fuel Injector
-
2216-881968001 STUD, Fuel Injection RailSTUD, Fuel Injection Rail
-
2384-8M0127600 HARNESS ASSEMBLY, Fuel Injection WiringHARNESS ASSEMBLY, Fuel Injection Wiring
-
2416-8M0077391 STUD, Throttle BodySTUD, Throttle Body
-
25NSS NOT SOLD SEPARATE, Plate, Block Off
Digital Throttle ShiftNOT SOLD SEPARATE, Plate, Block Off
Digital Throttle Shift -
2627-863285 GASKET
Digital Throttle ShiftGASKET
Digital Throttle Shift -
2710-898101392 SCREW, (M8 x 30)
Digital Throttle ShiftSCREW, (M8 x 30)
Digital Throttle Shift -
288M2005404 BRACKETBRACKET
-
2925-8M2001671 GROMMETGROMMET
-
308M2003380 BRACKET, Mount, Cover
MechanicalBRACKET, Mount, Cover
Mechanical -
308M2003380 BRACKET, Mount, Cover
Digital ThrottleBRACKET, Mount, Cover
Digital Throttle -
3110-4010612 SCREW, (M6 x 12) Stainless SteelSCREW, (M6 x 12) Stainless Steel
