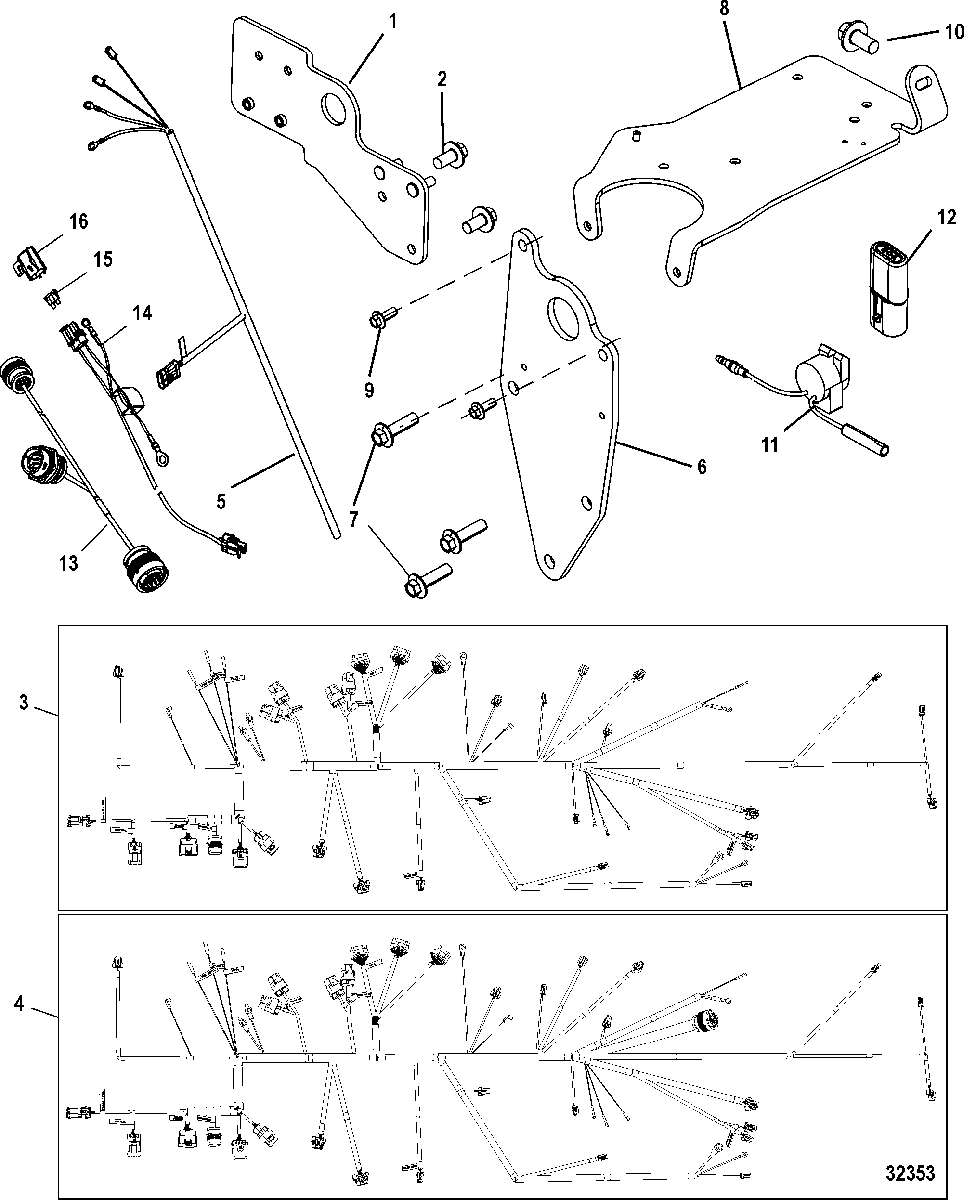

Lifting Brackets and Wiring Harness для Mercruiser - 496 MAG EC (Base Model) 1A066166 THRU 1A350440
-
№АртикулНазвание
-
1866626T BRACKET, Front Lifting EyeBRACKET, Front Lifting Eye
-
210-4010816 SCREW, (M10 x 16) Hex Flange - Stainless SteelSCREW, (M10 x 16) Hex Flange - Stainless Steel
-
384-8M0046180 HARNESS ASSEMBLY, Engine
Mechanical Throttle and ShiftHARNESS ASSEMBLY, Engine
Mechanical Throttle and Shift -
384-8M0046178 HARNESS ASSEMBLY, Engine
Digital Throttle and ShiftHARNESS ASSEMBLY, Engine
Digital Throttle and Shift -
484-8M0046179 HARNESS ASSEMBLY, Engine
Digital Throttle and Shift (Axius Gen I) (SEE NOTE 1)HARNESS ASSEMBLY, Engine
Digital Throttle and Shift (Axius Gen I) (SEE NOTE 1) -
584-865677T01 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
6879288T61 BRACKET, Lifting Eye, RearBRACKET, Lifting Eye, Rear
-
710-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
8866407 BRACKET, Shift PlateBRACKET, Shift Plate
-
910-4010725 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
1010-4010612 SCREW, (M6 x 12) Stainless SteelSCREW, (M6 x 12) Stainless Steel
-
11816492A15 ALARM KITALARM KIT
-
1283-865913A01 DIODE ASSEMBLYDIODE ASSEMBLY
-
1384-879194T53 HARNESS ASSEMBLY, Y-HarnessHARNESS ASSEMBLY, Y-Harness
-
1484-8M0113732 HARNESS ASSEMBLY, Clean PowerHARNESS ASSEMBLY, Clean Power
-
15862646 FUSE, Tan - 5 AmpereFUSE, Tan - 5 Ampere
-
16828054 COVER, FuseCOVER, Fuse
