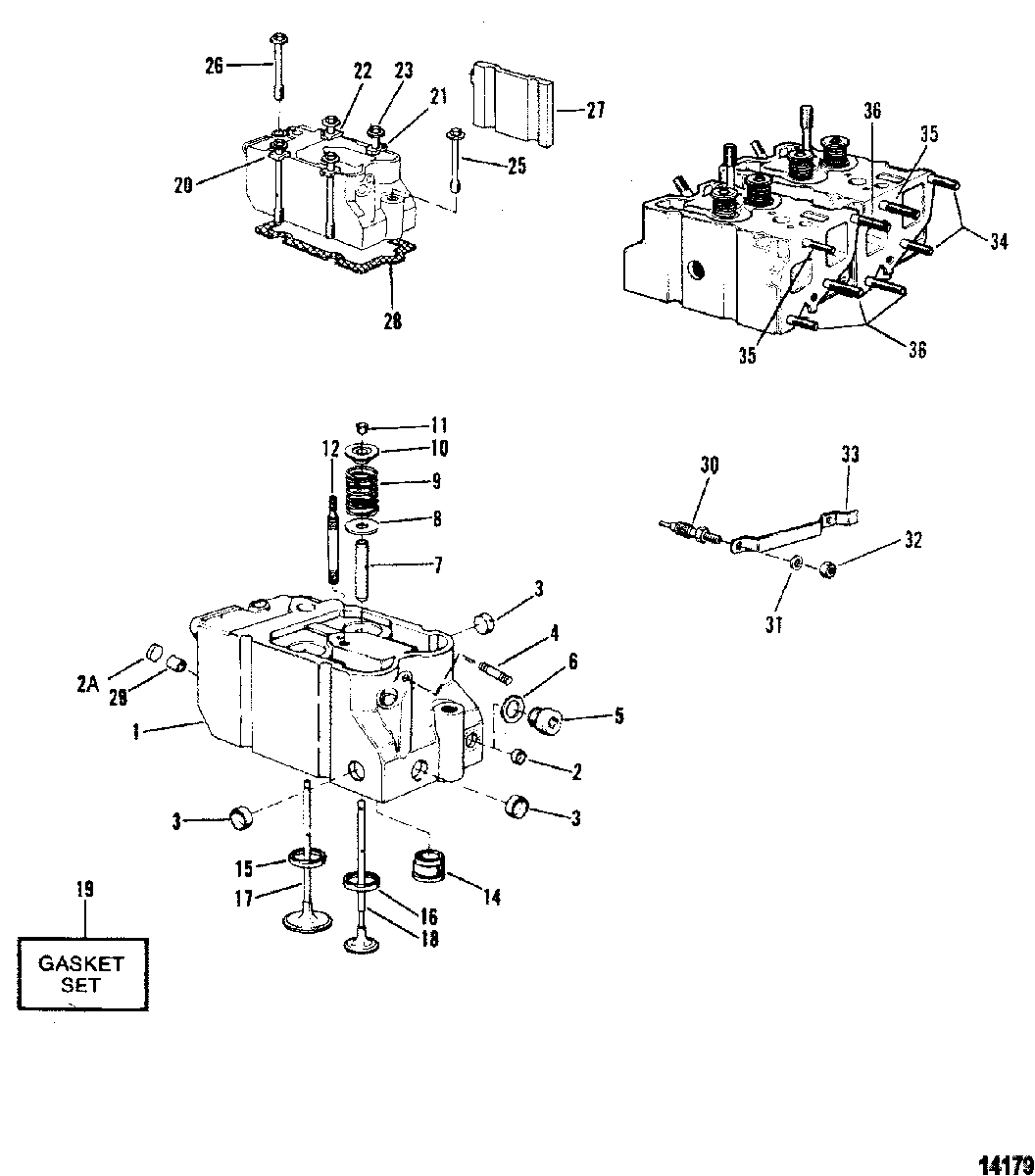

Cylinder Head для Mercruiser - D3.0L VM 183 I/L5 1994-1995 0D725152 THRU 0F999999
-
№АртикулНазвание
-
1806680 CYLINDER HEAD, With Valves
(Quantities (5 CYL) - 5; (6 CYL) - 6)CYLINDER HEAD, With Valves
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
2801331664 EXPANSION PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6)EXPANSION PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
2A19-809937241 PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6)PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
319-811389 PLUG
(Quantities (5 CYL) - 10; (6 CYL) - 12)PLUG
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
416-898101520 STUD
(Quantities (5 CYL) - 5; (6 CYL) - 6)STUD
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
510-879148010 PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6)PLUG
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
625-809963342 O-RING
(Quantities (5 CYL) - 5; (6 CYL) - 6)O-RING
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
7801331659 GUIDE, Valve
(Quantities (5 CYL) - 10; (6 CYL) - 12)GUIDE, Valve
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
8801331752 PLATE, Spring
(Quantities (5 CYL) - 10; (6 CYL) - 12)PLATE, Spring
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
924-8M0116896 SPRING
(Quantities (5 CYL) - 10; (6 CYL) - 12)SPRING
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
10801331754 CAP, Spring
(Quantities (5 CYL) - 10; (6 CYL) - 12)CAP, Spring
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
11801331755 KEEPER
(Quantities (5 CYL) - 20; (6 CYL) - 24)KEEPER
(Quantities (5 CYL) - 20; (6 CYL) - 24) -
1216-801331662 STUD
(Quantities (5 CYL) - 5; (6 CYL) - 6)STUD
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
14806713 PRECHAMBER
(Quantities (5 CYL) - 5; (6 CYL) - 6)PRECHAMBER
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
15806715 VALVE SEAT, Inlet
(Quantities (5 CYL) - 5; (6 CYL) - 6)VALVE SEAT, Inlet
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
16806714 VALVE SEAT, Outlet
(Quantities (5 CYL) - 5; (6 CYL) - 6)VALVE SEAT, Outlet
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
17811489 VALVE, Inlet
(Quantities (5 CYL) - 5; (6 CYL) - 6)VALVE, Inlet
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
18811488 VALVE, Outlet
(Quantities (5 CYL) - 5; (6 CYL) - 6)VALVE, Outlet
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
1927-801763764 GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0)GASKET SET
(Quantities (5 CYL) - 1; (6 CYL) - 0) -
1927-801763381 GASKET SET, Cylinder Head
(Quantities (5 CYL) - 0; (6 CYL) - 1)GASKET SET, Cylinder Head
(Quantities (5 CYL) - 0; (6 CYL) - 1) -
20801331671 BRIDGE
(Quantities (5 CYL) - 6; (6 CYL) - 7)BRIDGE
(Quantities (5 CYL) - 6; (6 CYL) - 7) -
21801331673 BRIDGE
(Quantities (5 CYL) - 2; (6 CYL) - 2)BRIDGE
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
22801331674 BRIDGE
(Quantities (5 CYL) - 4; (6 CYL) - 5)BRIDGE
(Quantities (5 CYL) - 4; (6 CYL) - 5) -
2310-8M0058844 BOLT, (M14 x 149.5), Center
(Quantities (5 CYL) - 12; (6 CYL) - 14)BOLT, (M14 x 149.5), Center
(Quantities (5 CYL) - 12; (6 CYL) - 14) -
2510-8M0057699 BOLT, (M12 x 94.5), Injector Side
(Quantities (5 CYL) - 5; (6 CYL) - 6)BOLT, (M12 x 94.5), Injector Side
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
2610-8M0057732 BOLT, (M12 x 127.5), Manifold Side
(Quantities (5 CYL) - 5; (6 CYL) - 6)BOLT, (M12 x 127.5), Manifold Side
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
2723-801331670 SPACER
(Quantities (5 CYL) - 2; (6 CYL) - 2)SPACER
(Quantities (5 CYL) - 2; (6 CYL) - 2) -
2827-854078 GASKET (1.42 MM)
(Quantities (5 CYL) - 5; (6 CYL) - 6)GASKET (1.42 MM)
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
2827-823297 GASKET, Cylinder Head (1.52 MM)
(Quantities (5 CYL) - OPT; (6 CYL) - OPT)GASKET, Cylinder Head (1.52 MM)
(Quantities (5 CYL) - OPT; (6 CYL) - OPT) -
2827-854079 GASKET (1.62 MM)
(Quantities (5 CYL) - OPT; (6 CYL) - OPT)GASKET (1.62 MM)
(Quantities (5 CYL) - OPT; (6 CYL) - OPT) -
2932-806769 TUBE, Water
(Quantities (5 CYL) - 1; (6 CYL) - 1)TUBE, Water
(Quantities (5 CYL) - 1; (6 CYL) - 1) -
3033-811495 PLUG, Glow
(Quantities (5 CYL) - 5; (6 CYL) - 6)PLUG, Glow
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
3113-809932047 LOCKWASHER
(Quantities (5 CYL) - 5; (6 CYL) - 6)LOCKWASHER
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
3211-809921038 NUT
(Quantities (5 CYL) - 5; (6 CYL) - 6)NUT
(Quantities (5 CYL) - 5; (6 CYL) - 6) -
33811494 CONNECTING BRIDGE
(Quantities (5 CYL) - 3; (6 CYL) - 4)CONNECTING BRIDGE
(Quantities (5 CYL) - 3; (6 CYL) - 4) -
3416-801333451 STUD, (M8 x 90)
(Quantities (5 CYL) - 10; (6 CYL) - 12)STUD, (M8 x 90)
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
3516-898101517 STUD
(Quantities (5 CYL) - 10; (6 CYL) - 12)STUD
(Quantities (5 CYL) - 10; (6 CYL) - 12) -
3616-898101518 STUD, (M8 x 150)
(Quantities (5 CYL) - 20; (6 CYL) - 24)STUD, (M8 x 150)
(Quantities (5 CYL) - 20; (6 CYL) - 24)
