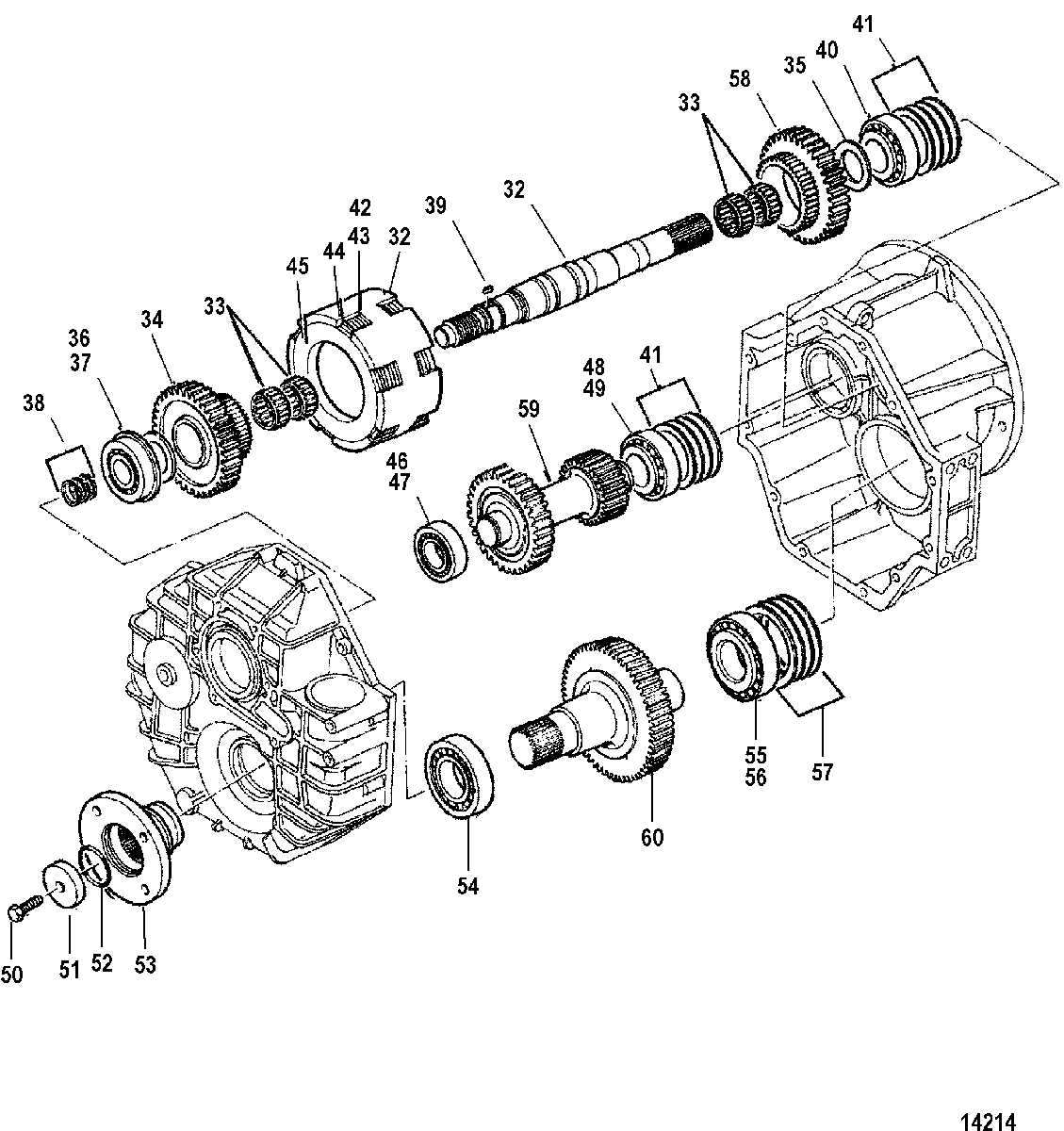

Transmission(Direct Drive) (Inboard) (P. 2/2) для Mercruiser - D3.0L VM 183 I/L5 1994-1995 0D725152 THRU 0F999999
-
№АртикулНазвание
-
-863744T2 TRANSMISSION, (1.5:1 Ratio)TRANSMISSION, (1.5:1 Ratio)
-
-863744T3 TRANSMISSION, (2.0:1 Ratio)TRANSMISSION, (2.0:1 Ratio)
-
-863744T4 TRANSMISSION, (2.5:1 Ratio)TRANSMISSION, (2.5:1 Ratio)
-
32813306 SHAFT, InputSHAFT, Input
-
3331-813307 BEARING, RollerBEARING, Roller
-
3443-813308 GEARGEAR
-
3512-813309 WASHERWASHER
-
3631-852066 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
3731-852066 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
3853-813312 RINGRING
-
3928-813313 KEYKEY
-
4030-813314 BEARINGBEARING
-
4115-813315 SHIM, (.10 mm)SHIM, (.10 mm)
-
4115-813316 SHIM, (.15 mm)SHIM, (.15 mm)
-
4115-813317 SHIM, (.20 mm)SHIM, (.20 mm)
-
4115-813318 SHIM, (.50 mm)SHIM, (.50 mm)
-
42813319 DISCDISC
-
43813320 DISCDISC
-
4453-813321 RINGRING
-
45813322 PRESSURE DISCPRESSURE DISC
-
4631-813323 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
4731-813324 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
4831-813325 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
4931-813326 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
5010-813327 SCREWSCREW
-
5123-813328 SPACERSPACER
-
5225-813329 O-RINGO-RING
-
53813330 FLANGE, OutputFLANGE, Output
-
5431-813331 BEARING, Tapered RollerBEARING, Tapered Roller
-
5531-813332 BEARING, Tapered Roller, InnerBEARING, Tapered Roller, Inner
-
5631-813333 BEARING, Tapered Roller, OuterBEARING, Tapered Roller, Outer
-
5715-813334 SHIM, (.10 mm)SHIM, (.10 mm)
-
5715-813335 SHIM, (.15 mm)SHIM, (.15 mm)
-
5715-813336 SHIM, (.30 mm)SHIM, (.30 mm)
-
5715-813337 SHIM, (.50 mm)SHIM, (.50 mm)
-
5843-813338 GEAR (1.5:1 Ratio)GEAR (1.5:1 Ratio)
-
59813339 SHAFT, Intermediate (1.5:1 Ratio)SHAFT, Intermediate (1.5:1 Ratio)
-
60813340 SHAFT, Output (1.5:1 Ratio)SHAFT, Output (1.5:1 Ratio)
-
5843-813341 GEAR (2.0:1 Ratio)GEAR (2.0:1 Ratio)
-
59813342 SHAFT, Intermediate (2.0:1 Ratio)SHAFT, Intermediate (2.0:1 Ratio)
-
60813343 SHAFT, Output (2.0:1 Ratio)SHAFT, Output (2.0:1 Ratio)
-
5843-813344 GEAR (2.5:1 Ratio)GEAR (2.5:1 Ratio)
-
59813345 SHAFT, Intermediate (2.5:1 Ratio)SHAFT, Intermediate (2.5:1 Ratio)
-
60813346 SHAFT, Output (2.5:1 Ratio)SHAFT, Output (2.5:1 Ratio)
