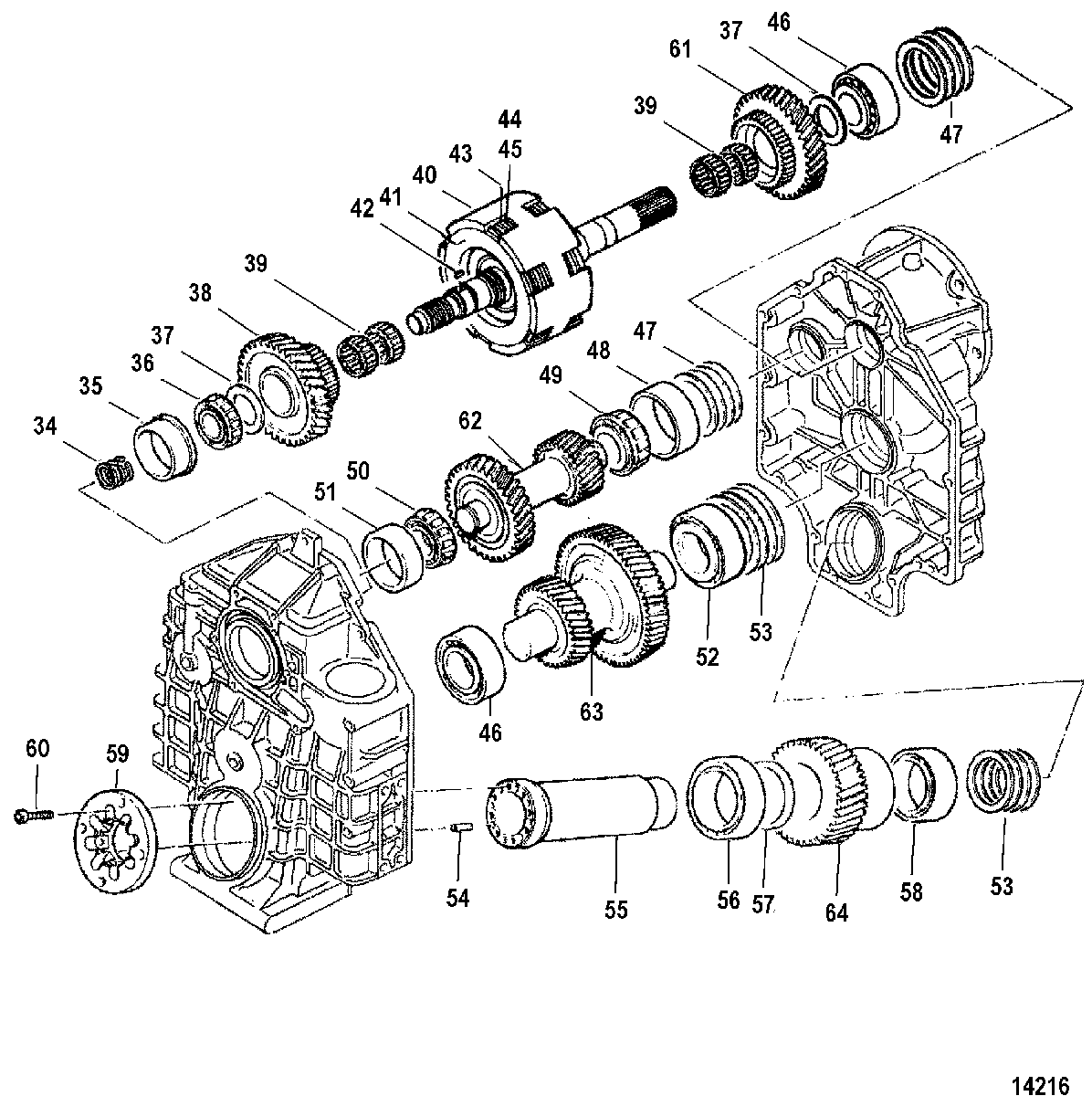

Transmission(V-Drive) (Inboard) (P. 2/2) для Mercruiser - D3.0L VM 183 I/L5 1994-1995 0D725152 THRU 0F999999
-
№АртикулНазвание
-
-863745T2 TRANSMISSION, (1.5:1 Ratio)TRANSMISSION, (1.5:1 Ratio)
-
-863745T3 TRANSMISSION, (2.0:1 Ratio)TRANSMISSION, (2.0:1 Ratio)
-
-863745T4 TRANSMISSION, (2.5:1 Ratio)TRANSMISSION, (2.5:1 Ratio)
-
3453-813312 RINGRING
-
3531-811970 BEARING, Tapered Roller CupBEARING, Tapered Roller Cup
-
3631-811969 BEARING, Tapered Roller ConeBEARING, Tapered Roller Cone
-
3712-811967 WASHERWASHER
-
3843-813308 GEARGEAR
-
3931-813307 BEARING, RollerBEARING, Roller
-
40813306 SHAFT, InputSHAFT, Input
-
41813322 PRESSURE DISCPRESSURE DISC
-
4228-813313 KEYKEY
-
4353-813321 RINGRING
-
44813319 DISCDISC
-
45813320 DISCDISC
-
4630-811968 BEARING, BallBEARING, Ball
-
4715-813315 SHIM, (.10 mm)SHIM, (.10 mm)
-
4715-813316 SHIM, (.15 mm)SHIM, (.15 mm)
-
4715-813317 SHIM, (.20 mm)SHIM, (.20 mm)
-
4715-813318 SHIM, (.50 mm)SHIM, (.50 mm)
-
4831-811979 BEARING, Tapered Roller CupBEARING, Tapered Roller Cup
-
4931-811978 BEARING, Tapered Roller ConeBEARING, Tapered Roller Cone
-
5031-811971 BEARING, Tapered Roller ConeBEARING, Tapered Roller Cone
-
5131-811977 BEARING, Tapered Roller CupBEARING, Tapered Roller Cup
-
5231-811972 BEARING, Tapered RollerBEARING, Tapered Roller
-
5315-811973 SHIM (.10MM)SHIM (.10MM)
-
5315-811974 SHIM (.15MM)SHIM (.15MM)
-
5315-811975 SHIM (.30MM)SHIM (.30MM)
-
5315-811976 SHIM (.50MM)SHIM (.50MM)
-
5417-811984 PIN, DowelPIN, Dowel
-
55811980 SHAFT, OutputSHAFT, Output
-
5712-811981 WASHERWASHER
-
5831-811986 BEARING, Tapered RollerBEARING, Tapered Roller
-
59811982 FLANGEFLANGE
-
6010-811983 SCREWSCREW
-
6143-811987 GEAR (1.5:1 Ratio)GEAR (1.5:1 Ratio)
-
62811951 SHAFT, Reversing (1.5:1 Ratio)SHAFT, Reversing (1.5:1 Ratio)
-
63811952 SHAFT, Intermediate (1.5:1 Ratio)SHAFT, Intermediate (1.5:1 Ratio)
-
6443-811950 GEAR (1.5:1 Ratio)GEAR (1.5:1 Ratio)
-
6143-811949 GEAR (2.0:1 Ratio)GEAR (2.0:1 Ratio)
-
62811947 SHAFT, Reversing (2.0:1 Ratio)SHAFT, Reversing (2.0:1 Ratio)
-
63811948 SHAFT, Intermediate (2.0:1 Ratio)SHAFT, Intermediate (2.0:1 Ratio)
-
6443-811950 GEAR (2.0:1 Ratio)GEAR (2.0:1 Ratio)
-
6143-811949 GEAR (2.5:1 Ratio)GEAR (2.5:1 Ratio)
-
62811947 SHAFT, Reversing (2.5:1 Ratio)SHAFT, Reversing (2.5:1 Ratio)
-
63811946 SHAFT, Intermediate (2.5:1 Ratio)SHAFT, Intermediate (2.5:1 Ratio)
-
6443-811945 GEAR (2.5:1 Ratio)GEAR (2.5:1 Ratio)
