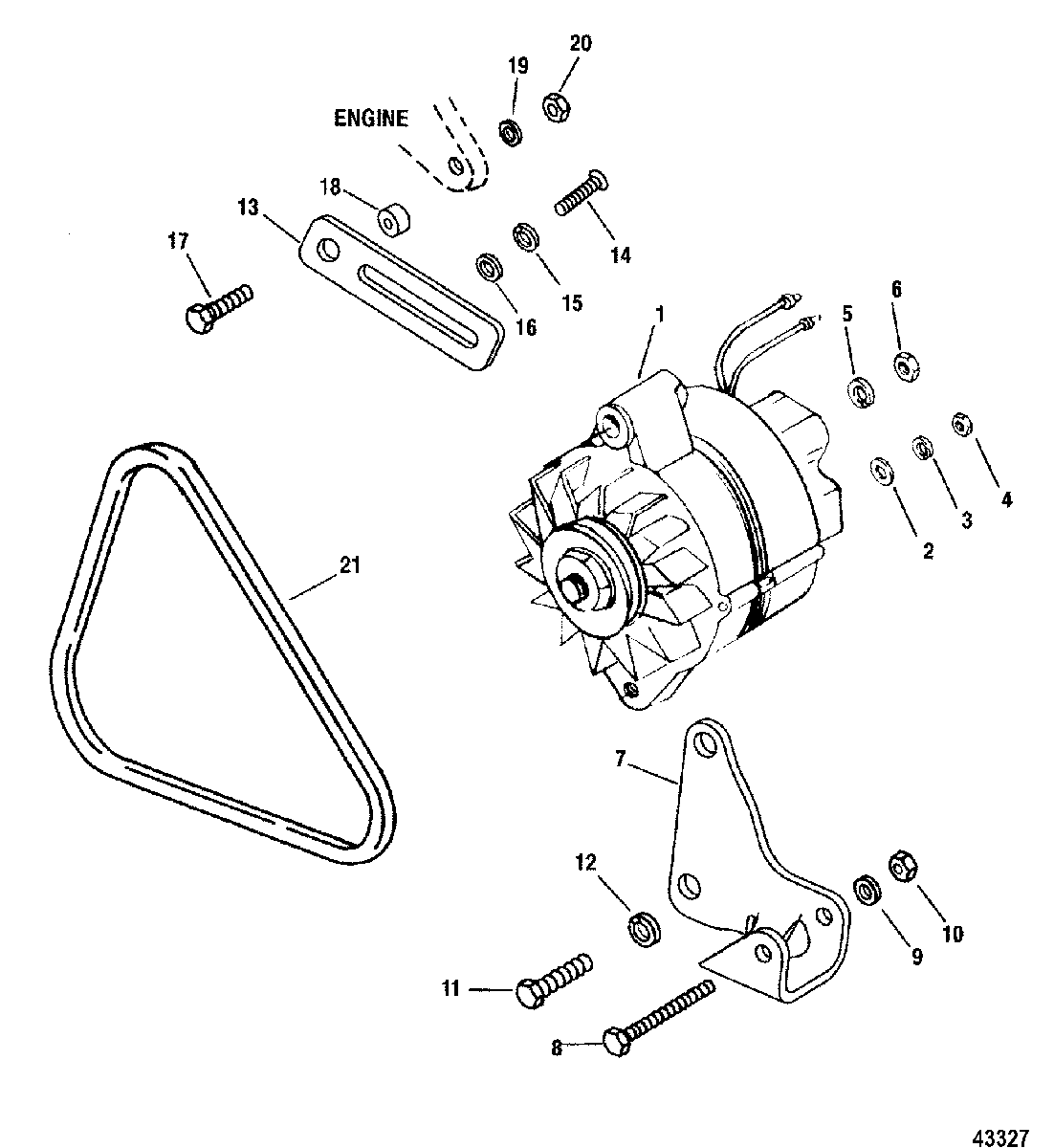

Alternator & Mounting Hardware(S/N-0F319302 and Up) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999
-
№АртикулНазвание
-
1805884T ALTERNATORALTERNATOR
-
212-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
411-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
611-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
7806979T BRACKETBRACKET
-
8807035T SPACER PLATESPACER PLATE
-
910-68299 SCREW, (.375-16 x 3.00) Stainless SteelSCREW, (.375-16 x 3.00) Stainless Steel
-
1012-4002320 WASHERWASHER
-
1111-82670912 NUT, (.375-16) Stainless SteelNUT, (.375-16) Stainless Steel
-
1213-4002510 LOCKWASHERLOCKWASHER
-
13806980T BRACEBRACE
-
1410-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
1513-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
1612-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
1710-4000382 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
1823-807030 SPACERSPACER
-
1912-4002319 WASHERWASHER
-
2011-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
2157-64032Q1 V BELTV BELT
