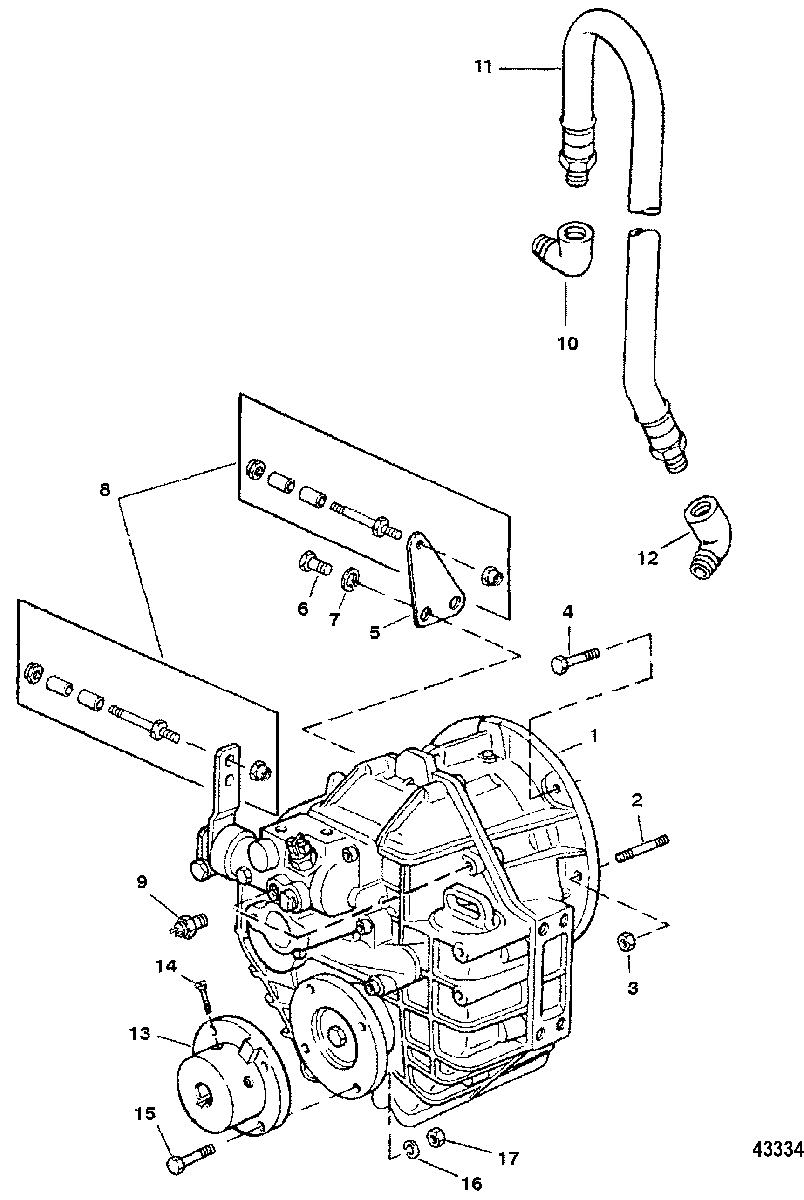

Transmission & Related Parts(Inboard) для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999
-
№АртикулНазвание
-
1863744T2 TRANSMISSION, (1.5:1 Ratio)
(DIRECT DRIVE)TRANSMISSION, (1.5:1 Ratio)
(DIRECT DRIVE) -
1863744T3 TRANSMISSION, (2.0:1 Ratio)
(DIRECT DRIVE)TRANSMISSION, (2.0:1 Ratio)
(DIRECT DRIVE) -
1863744T4 TRANSMISSION, (2.50:1 Ratio)
(DIRECT DRIVE)TRANSMISSION, (2.50:1 Ratio)
(DIRECT DRIVE) -
1863745T2 TRANSMISSION, (1.5:1 Ratio)
(V-DRIVE)TRANSMISSION, (1.5:1 Ratio)
(V-DRIVE) -
1863745T3 TRANSMISSION, (2.0:1 Ratio)
(V-DRIVE)TRANSMISSION, (2.0:1 Ratio)
(V-DRIVE) -
1863745T4 TRANSMISSION, (2.5:1 Ratio)
(V-DRIVE)TRANSMISSION, (2.5:1 Ratio)
(V-DRIVE) -
216-910002 STUDSTUD
-
311-809922113 NUTNUT
-
410-809913837 SCREWSCREW
-
5806238 BRACKETBRACKET
-
610-809919969 SCREWSCREW
-
713-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
-
816-97477A3 STUD KITSTUD KIT
-
987-88031 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1022-35580 FITTINGFITTING
-
1132-81269939 HOSE, (39.00 Inches Bulk)HOSE, (39.00 Inches Bulk)
-
1222-63835 ELBOW, 45 DegreeELBOW, 45 Degree
-
1379476A1 FLANGE ASSEMBLY, (5.00 x 1.00)FLANGE ASSEMBLY, (5.00 x 1.00)
-
1379476A2 FLANGE ASSEMBLY, (5.00 x 1.125)FLANGE ASSEMBLY, (5.00 x 1.125)
-
1379476A3 FLANGE ASSEMBLY, (5.00 x 1.25)FLANGE ASSEMBLY, (5.00 x 1.25)
-
1379476A4 FLANGE ASSEMBLY, (5.00 x 1.375)FLANGE ASSEMBLY, (5.00 x 1.375)
-
1379476A5 FLANGE ASSEMBLY, (5.00 x 1.50)FLANGE ASSEMBLY, (5.00 x 1.50)
-
1379476A6 FLANGE ASSEMBLY, (5.00 x 1.75)FLANGE ASSEMBLY, (5.00 x 1.75)
-
1379476A7 FLANGE ASSEMBLY, (5.00 x 2.00)FLANGE ASSEMBLY, (5.00 x 2.00)
-
1410-60171 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1410-60169 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1510-805159 SCREW, (.437-20 x 1.500)SCREW, (.437-20 x 1.500)
-
1613-32993 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1711-22024 NUT, (.437-14)NUT, (.437-14)
