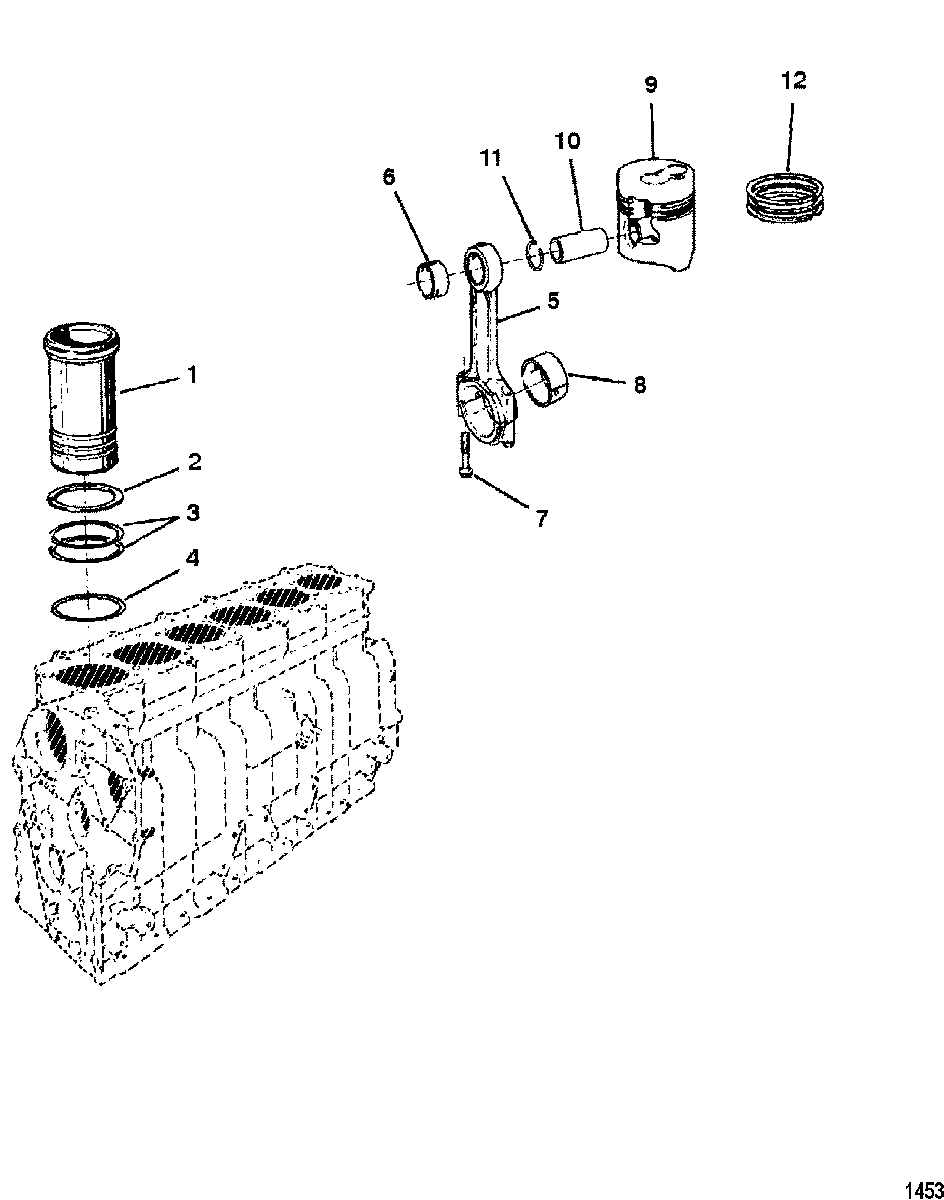

Connecting Rod and Piston для Mercruiser - D4.2L/220 IDI VM 254 I/L6 0D554732 THRU 0M999999
-
№АртикулНазвание
-
151-889857 LINERLINER
-
215-801331607 SHIM, (15 mm)SHIM, (15 mm)
-
215-801331608 SHIM, (20 mm)SHIM, (20 mm)
-
215-801763362 SHIM, (23 mm)SHIM, (23 mm)
-
325-817728 O-RINGO-RING
-
425-817729 O-RINGO-RING
-
5641-879172156 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
623-801331712 BUSHINGBUSHING
-
710-801331713 BOLTBOLT
-
831-8M0054658 BEARING, StandardBEARING, Standard
-
88M0077370 BEARING, (25 mm)BEARING, (25 mm)
-
8801331717 BEARING, (50 mm)BEARING, (50 mm)
-
9795-823645001 PISTONPISTON
-
1041-811387 PINPIN
-
1140-801331725 RINGRING
-
1239-811386 RING SETRING SET
-
-27-898300004 GASKET SET, Engine Overhaul
SN# 0D554732 THRU 0L099755GASKET SET, Engine Overhaul
SN# 0D554732 THRU 0L099755 -
-27-898300004 GASKET SET, Engine Overhaul
SN# 0L099756 & UpGASKET SET, Engine Overhaul
SN# 0L099756 & Up -
-27-811522 GASKET SET, Cylinder Head
SN# 0D554732 THRU 0L099755GASKET SET, Cylinder Head
SN# 0D554732 THRU 0L099755 -
-27-898300002 GASKET SET, Cylinder Head
SN# 0L099756 & UpGASKET SET, Cylinder Head
SN# 0L099756 & Up
Все узлы модели:
- Air Cleaner
- Air Cooler
- Alternator & Mounting Hardware(S/N-0F319301 and Below)
- Alternator & Mounting Hardware(S/N-0F319302 and Up)
- Alternator(Mando)
- Alternator(Prestolite)
- Camshaft
- • Connecting Rod and Piston
- Coolant Recovery
- Crankshaft
- Cylinder Head(S/N-0D554752 and Below)
- Cylinder Head(S/N-0D554753 and Up)
- Engine/Cylinder Block
- Exhaust Manifold
- Flywheel Housing(Inboard)
- Flywheel Housing(Sterndrive)
- Front Cover
- Fuel Filter(S/N-0F450249 and Below)
- Fuel Filter(S/N-0F450250 and Up)
- Gimbal Housing Cover
- Heat Exchanger and Hoses
- Injection Nozzle / Lines
- Injection Pump
- Instrumentation
- Manifold Strip
- Mercathode(Stern Drive)
- Motor Harness
- Oil Filter and Oil Hoses(S/N-0F450249 and Below)
- Oil Filter and Oil Hoses(S/N-0F450250 and Up)
- Oil Pan
- Power Steering Components(Stern Drive)
- Rocker Arm and Oil Lines
- Rocker Cover
- Seawater Filter
- Seawater Pump
- Service and Support Information
- Shift Bracket(Stern Drive)
- Starter Motor
- Transmission & Related Parts(Inboard)
- Transmission Mounting(Inboard)
- Transmission(Direct Drive) (Inboard) Page 2 of 2
- Transmission(Direct Drive)(Inboard) Page 1 of 2
- Transmission(V-Drive) (Inboard) Page 2 of 2
- Transmission(V-Drive)(Inboard) Page 1 of 2
- Turbo Charger / Exhaust Elbow
- Water Pump
