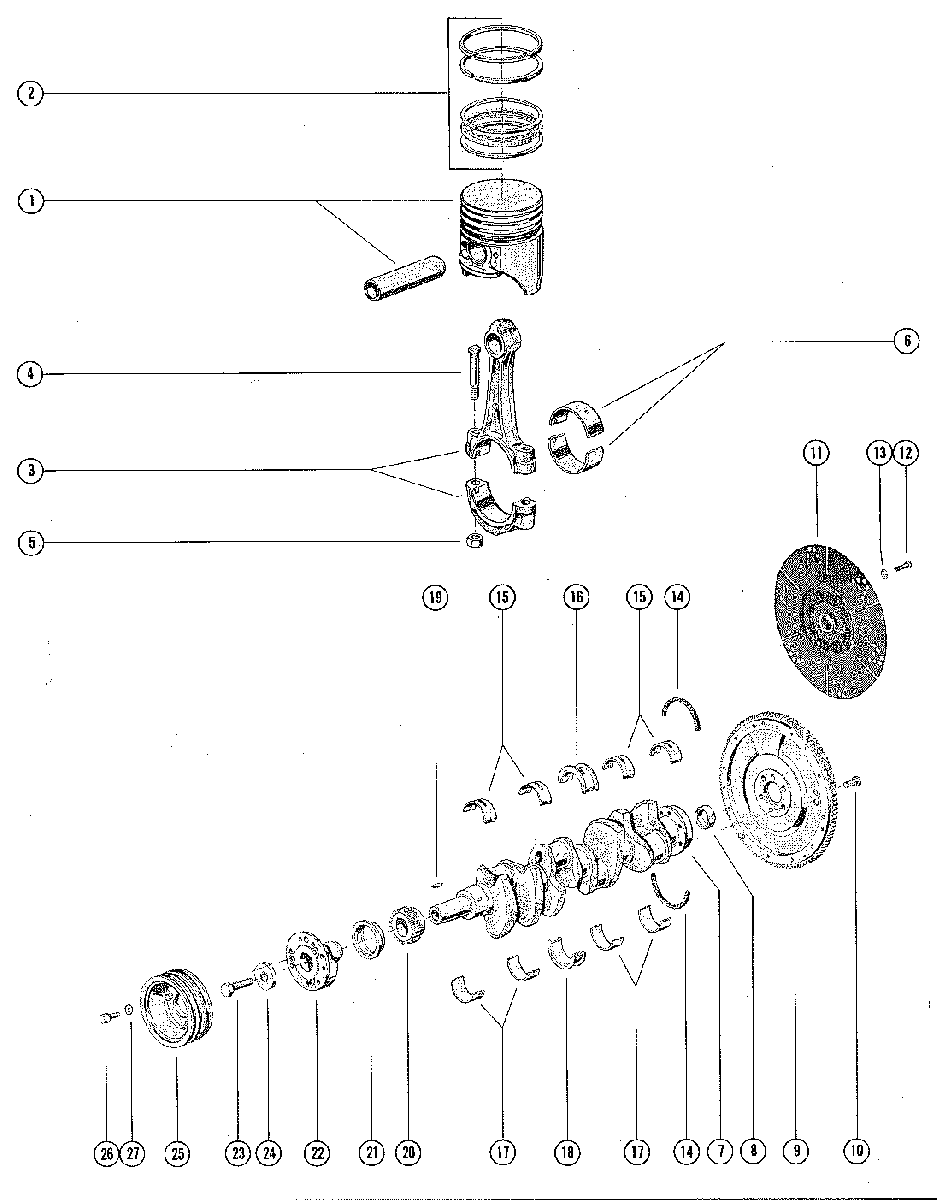

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 215 MIE FORD 302 V-8 1970-1972 2781153 THRU 3563181
-
№АртикулНазвание
-
1749-4058 PISTON AND PISTON PIN ASSEMBLY (STANDARD)PISTON AND PISTON PIN ASSEMBLY (STANDARD)
-
1749-4059 PISTON AND PISTON PIN ASSEMBLY (.003 O.S.)
USE STANDARD RINGPISTON AND PISTON PIN ASSEMBLY (.003 O.S.)
USE STANDARD RING -
1749-4060 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
-
239-56114 RING ASSEMBLY, PISTON (STANDARD)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONSRING ASSEMBLY, PISTON (STANDARD)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS -
239-56115 RING ASSEMBLY, PISTON (.020 O.S.)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONSRING ASSEMBLY, PISTON (.020 O.S.)
EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS -
3623-4679 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
410-56123 BOLT, CONNECTING RODBOLT, CONNECTING ROD
-
511-56122 NUT, CONNECTING ROD BOLTNUT, CONNECTING ROD BOLT
-
623-56116 BEARING UNIT, CONNECTING ROD (STANDARD)BEARING UNIT, CONNECTING ROD (STANDARD)
-
623-85730 BEARING UNIT, CONNECTING ROD (.001 U.S.)BEARING UNIT, CONNECTING ROD (.001 U.S.)
-
623-85731 BEARING UNIT, CONNECTING ROD (.002 U.S.)BEARING UNIT, CONNECTING ROD (.002 U.S.)
-
623-85732 BEARING UNIT, CONNECTING ROD (.010 U.S.)BEARING UNIT, CONNECTING ROD (.010 U.S.)
-
623-85733 BEARING UNIT, CONNECTING ROD (.020 U.S.)BEARING UNIT, CONNECTING ROD (.020 U.S.)
-
7446-4064 CRANKSHAFT (STANDARD ROTATION)CRANKSHAFT (STANDARD ROTATION)
-
7446-5797 CRANKSHAFT (OPPOSITE ROTATION)CRANKSHAFT (OPPOSITE ROTATION)
-
823-55248 BEARING, CLUTCH PILOT (ELECTRIC SHIFT)BEARING, CLUTCH PILOT (ELECTRIC SHIFT)
-
9238-4428 FLYWHEEL ASSEMBLY (ELECTRIC SHIFT)FLYWHEEL ASSEMBLY (ELECTRIC SHIFT)
-
9238-4055 FLYWHEEL ASSEMBLY (HYDRAULIC SHIFT AND INBOARD)FLYWHEEL ASSEMBLY (HYDRAULIC SHIFT AND INBOARD)
-
1010-60706 BOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")
ELECTRIC SHIFTBOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")
ELECTRIC SHIFT -
1010-60705 BOLT, FLYWHEEL TO CRANKSHAFT (1 1/16")
HYDRAULIC SHIFT AND INBAORDBOLT, FLYWHEEL TO CRANKSHAFT (1 1/16")
HYDRAULIC SHIFT AND INBAORD -
1147608A1 DRIVE PLATE, FLYWHEELDRIVE PLATE, FLYWHEEL
-
1210-56889 SCREW, DRIVE PLATE TO FLYWHEELSCREW, DRIVE PLATE TO FLYWHEEL
-
1313-26993 LOCKWASHER, DRIVE PLATE SCREWLOCKWASHER, DRIVE PLATE SCREW
-
1426-56868 OIL SEAL, CRANKSHAFT REAR (STANDARD ROTATION)OIL SEAL, CRANKSHAFT REAR (STANDARD ROTATION)
-
1426-56869 OIL SEAL, CRANKSHAFT REAR (OPPPOSITE ROTATION)OIL SEAL, CRANKSHAFT REAR (OPPPOSITE ROTATION)
-
1523-85734 BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)
-
1523-85736 BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)
-
1523-56894 BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)
-
1523-85741 BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)
-
1523-56898 BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)
-
1623-56898 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)
-
1623-85738 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)
-
1623-56895 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
-
1623-85743 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)
-
1623-56899 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)
-
1723-56900 BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)
-
1723-56902 BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)
-
1723-85739 BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)
-
1723-56906 BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)
-
1723-85737 BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)
-
1823-85735 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)
-
1823-56903 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)
-
1823-85740 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)
-
1823-56907 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)
-
1823-85742 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)
-
1928-56142 KEY, TIMING SPROCKET TO CRANKSHAFTKEY, TIMING SPROCKET TO CRANKSHAFT
-
2043-56141 SPROCKET, CRANKSHAFT TIMING (21 TEETH)SPROCKET, CRANKSHAFT TIMING (21 TEETH)
-
2156143 SLINGER, OIL - CRANKSHAFTSLINGER, OIL - CRANKSHAFT
-
2256145 DAMPER ASSEMLBY, CRANKSHAFT (STANDARD ROTATION)DAMPER ASSEMLBY, CRANKSHAFT (STANDARD ROTATION)
-
2261750 DAMPER ASSEMBLY, CRANKSHAFT ( OPPOSITE ROTATION)DAMPER ASSEMBLY, CRANKSHAFT ( OPPOSITE ROTATION)
-
2310-58257 BOLT, DAMPER TO CRANKSHAFT (1 3/4")BOLT, DAMPER TO CRANKSHAFT (1 3/4")
-
2412-56148 WASHER, DAMPER TO CRANKSHAFT BOLTWASHER, DAMPER TO CRANKSHAFT BOLT
-
2556144 PULLEY, CRANKSHAFTPULLEY, CRANKSHAFT
-
2610-21077 SCREW, PULLEY TO DAMPER (7/8")SCREW, PULLEY TO DAMPER (7/8")
-
2713-35048 LOCKWASHER, PULLEY SCREWLOCKWASHER, PULLEY SCREW
