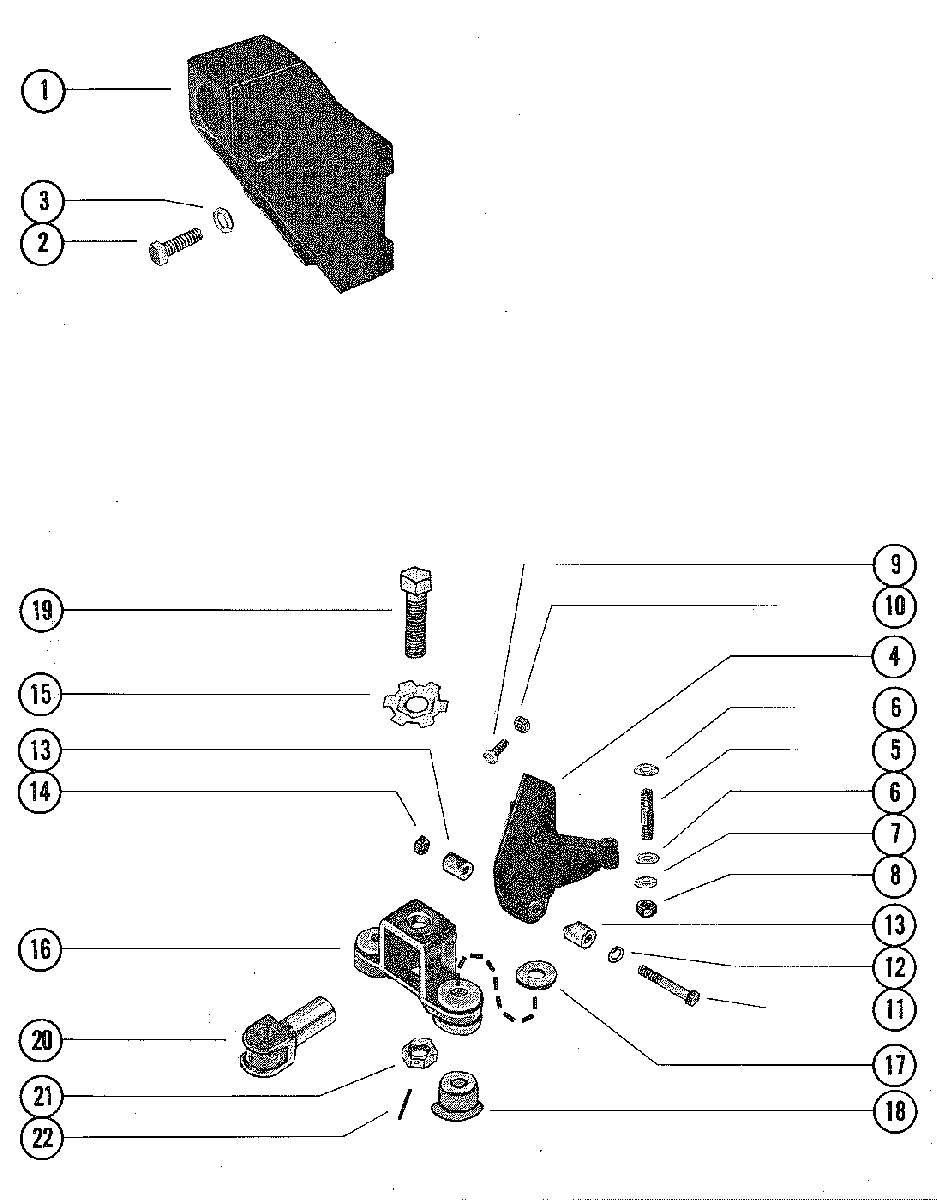

TRANSMISSION AND ENGINE MOUNTING для Mercruiser - 215 MIE FORD 302 V-8 1970-1972 2781153 THRU 3563181
-
№АртикулНазвание
-
162255 BRACKET, MOUNTING (REAR)BRACKET, MOUNTING (REAR)
-
210-37269 SCREW, MOUNTING BRACKET TO TRANSMISSION (2")SCREW, MOUNTING BRACKET TO TRANSMISSION (2")
-
313-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
461854 BRACKET, MOUNTING (FRONT)BRACKET, MOUNTING (FRONT)
-
516-65737 STUD, FRONT MOUNTING BRACKET (2 5/8")STUD, FRONT MOUNTING BRACKET (2 5/8")
-
516-65743 STUD, FRONT MOUNTING BRACKT STBD. REAR (3")
INBOARD SEE F4 SERIAL 00000000-03085036STUD, FRONT MOUNTING BRACKT STBD. REAR (3")
INBOARD SEE F4 SERIAL 00000000-03085036 -
612-34567 WASHER, MOUNTING BRACKET STUD - STBD. REAR
INBOARD SEE F4 SERIAL 00000000-03085036WASHER, MOUNTING BRACKET STUD - STBD. REAR
INBOARD SEE F4 SERIAL 00000000-03085036 -
612-54426 WASHER, MOUNTING BRACKET STUDWASHER, MOUNTING BRACKET STUD
-
713-32993 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
811-34933 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
910-30155 SCREW, ENGINE LOCATING (1 1/4")SCREW, ENGINE LOCATING (1 1/4")
-
1011-22024 NUT, ENGINE LOCATING SCREWNUT, ENGINE LOCATING SCREW
-
1110-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
-
1213-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREWLOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
-
1354-47528 CLAMP, ADJUSTING TRUNNION SCREWCLAMP, ADJUSTING TRUNNION SCREW
-
1411-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREWNUT, CLAMP ADJUSTING TRUNNION SCREW
-
1514-48467 TAB WASHER, ADJUSTING TRUNNION SCREWTAB WASHER, ADJUSTING TRUNNION SCREW
-
1652139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REARBRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
-
1712-48611 WASHER, MOUNTING BRACKETWASHER, MOUNTING BRACKET
-
1847656 MOUNT, MOUNTING BRACKETMOUNT, MOUNTING BRACKET
-
1910-52156 SCREW, ADJUSTING TRUNNION (4 1/2")SCREW, ADJUSTING TRUNNION (4 1/2")
-
2047518 TRUNNION, ADJUSTING - MOUNTING BRACKETTRUNNION, ADJUSTING - MOUNTING BRACKET
-
2111-47525 NUT, JAM - ADJUSTING TRUNNION SCREWNUT, JAM - ADJUSTING TRUNNION SCREW
-
2217-22116 PIN, ROLL - JAM NUTPIN, ROLL - JAM NUT
