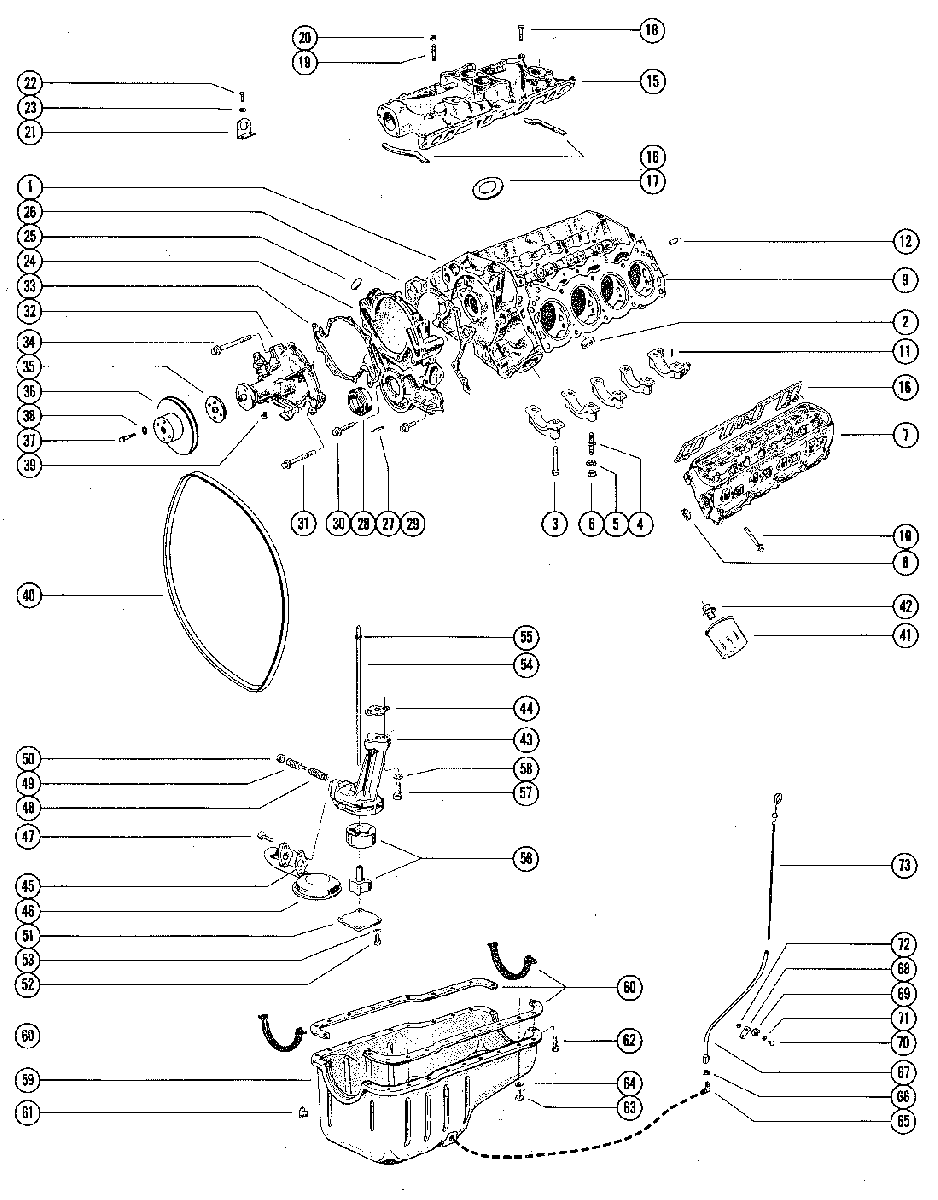

CYLINDER BLOCK, CYLINDER HEAD AND OIL PAN для Mercruiser - 215 MIE FORD 302 V-8 1970-1972 2781153 THRU 3563181
-
№АртикулНазвание
-
1853-4056 CYLINDER BLOCK ASSEMBLY (INCLUDES BEARING CAPS)CYLINDER BLOCK ASSEMBLY (INCLUDES BEARING CAPS)
-
219-56102 PLUG, EXPANSION - CYLINDER BLOCKPLUG, EXPANSION - CYLINDER BLOCK
-
222-16951Q1 PETCOCK, WATER DRAIN - CYLINDER BLOCKPETCOCK, WATER DRAIN - CYLINDER BLOCK
-
222-37682 ELBOW, STARBOARD - WATER DRAIN PETCOCKELBOW, STARBOARD - WATER DRAIN PETCOCK
-
222-32561 PLUG, CYLINDER BLOCK (1/4")PLUG, CYLINDER BLOCK (1/4")
-
219-60668 PLUG, EXPANSION - CYLINDER BLOCK (3/4")PLUG, EXPANSION - CYLINDER BLOCK (3/4")
-
219-45670 PLUG, EXPANSION - CYLINDER BLOCK (1/2")PLUG, EXPANSION - CYLINDER BLOCK (1/2")
-
217-60670 PIN, DOWEL - CYLINDER HEAD TO CYLINDER BLOCKPIN, DOWEL - CYLINDER HEAD TO CYLINDER BLOCK
-
310-56146 BOLT, BEARING CAP TO CYLINDER BLOCK (3 5/32")BOLT, BEARING CAP TO CYLINDER BLOCK (3 5/32")
-
416-56147 STUD, BEARING CAP TO CYLINDER BLOCK (OIL PUMP SCREEN)STUD, BEARING CAP TO CYLINDER BLOCK (OIL PUMP SCREEN)
-
513-56177 LOCKWASHER, OIL PUMP SCREEN STUDLOCKWASHER, OIL PUMP SCREEN STUD
-
611-32219 NUT, OIL PUMP SCREEN STUDNUT, OIL PUMP SCREEN STUD
-
7949-4057 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
819-56102 PLUG, EXPANSION - CYLINDER HEADPLUG, EXPANSION - CYLINDER HEAD
-
927-75647 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1010-56112 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 7/8")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (3 7/8")
-
1010-56113 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2 1/4")BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2 1/4")
-
1117-56139 PIN, REAR BEARING CAP - REAR SEAL RETAININGPIN, REAR BEARING CAP - REAR SEAL RETAINING
-
1217-56151 PIN, DOWEL - CYLINDER BLOCK TO FLYWHEEL HOUSING (1")PIN, DOWEL - CYLINDER BLOCK TO FLYWHEEL HOUSING (1")
-
1556887 INTAKE MANIFOLDINTAKE MANIFOLD
-
1627-73042 GASKET SET, INTAKE MANIFOLDGASKET SET, INTAKE MANIFOLD
-
1756163 BAFFLE, INTAKE MANIFOLDBAFFLE, INTAKE MANIFOLD
-
1810-58261 BOLT, INTAKE MANIFOLD TO CYLINDER HEAD (2")BOLT, INTAKE MANIFOLD TO CYLINDER HEAD (2")
-
1916-58262 STUD, INTAKE MANIFOLD TO CYLINDER HEAD (2 3/8")STUD, INTAKE MANIFOLD TO CYLINDER HEAD (2 3/8")
-
2011-58263 NUT, INTAKE MANIFOLD STUDNUT, INTAKE MANIFOLD STUD
-
2154-54555 LIFTING EYE, INTAKE MANIFOLDLIFTING EYE, INTAKE MANIFOLD
-
2210-47258 SCREW, LIFTING EYE TO INTAKE MANIFOLD (5/8")SCREW, LIFTING EYE TO INTAKE MANIFOLD (5/8")
-
2312-34437 WASHER, LIFTING EYE SCREWWASHER, LIFTING EYE SCREW
-
2456103 COVER, TIMINGCOVER, TIMING
-
2519-21688 WELCH PLUG, TIMING COVERWELCH PLUG, TIMING COVER
-
2627-56108 GASKET, TIMING COVERGASKET, TIMING COVER
-
2756109 POINTER, TIMING COVERPOINTER, TIMING COVER
-
2826-56866 OIL SEAL, TIMING COVER (STANDARD ROTATION)OIL SEAL, TIMING COVER (STANDARD ROTATION)
-
2826-56867 OIL SEAL, TIMING COVER (OPPOSITE ROTATION)OIL SEAL, TIMING COVER (OPPOSITE ROTATION)
-
2910-55511 SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")SCREW, TIMING COVER TO CYLINDER BLOCK (1 1/2")
-
3010-815549 SCREW, TIMING COVER TO CYLINDER BLOCK (2")SCREW, TIMING COVER TO CYLINDER BLOCK (2")
-
3110-52743 SCREW, WATER PUMP AND TIMING COVER ATTACHING (3 3/4")SCREW, WATER PUMP AND TIMING COVER ATTACHING (3 3/4")
-
32883885 WATER PUMP ASSEMBLY (STANDARD ROTATION)WATER PUMP ASSEMBLY (STANDARD ROTATION)
-
32883885 WATER PUMP ASSEMBLY (OPPOSITE ROTATION)WATER PUMP ASSEMBLY (OPPOSITE ROTATION)
-
3327-56880 GASKET, WATER PUMPGASKET, WATER PUMP
-
3410-55300 SCREW, WATER PUMP AND TIMING COVER ATTACHING (5 1/4")SCREW, WATER PUMP AND TIMING COVER ATTACHING (5 1/4")
-
3558265 REINFORCEENT, WATER PUMP PULLEYREINFORCEENT, WATER PUMP PULLEY
-
3656881 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
3710-54630 SCREW, PULLEY TO WATER PUMP (5/8")SCREW, PULLEY TO WATER PUMP (5/8")
-
3813-39107 LOCKWASER, PULLEY SCREWLOCKWASER, PULLEY SCREW
-
3922-36373 PLUG, PIPE - WATER PUMP (3/8-14)PLUG, PIPE - WATER PUMP (3/8-14)
-
4057-93658Q BELT, DRIVE - ALTERNATOR AND WATER PUMPBELT, DRIVE - ALTERNATOR AND WATER PUMP
-
4135-8M0116378 OIL FILTEROIL FILTER
-
4222-56876 CONNECTOR, OIL FILTER TO CYLINDER BLOCKCONNECTOR, OIL FILTER TO CYLINDER BLOCK
-
4356174 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
4427-56861 GASKET, OIL PUMPGASKET, OIL PUMP
-
4527-56859 GASKET, OIL PUMP SCREENGASKET, OIL PUMP SCREEN
-
4656856 SCREEN, OIL PUMPSCREEN, OIL PUMP
-
4710-56858 SCREW, SCREEN TO OIL PUMP (7/8")SCREW, SCREEN TO OIL PUMP (7/8")
-
4824-56864 SRPING, OIL PUMP RELIEF VALVESRPING, OIL PUMP RELIEF VALVE
-
4956865 PLUNGER, OIL PUMP RELIEF VALVEPLUNGER, OIL PUMP RELIEF VALVE
-
5019-56854 PLUG, OIL PUMP RELIEF VALVEPLUG, OIL PUMP RELIEF VALVE
-
5156179 PLATE, OIL PUMPPLATE, OIL PUMP
-
5210-56133 SCREW, PLATE TO OIL PUMP (5/8")SCREW, PLATE TO OIL PUMP (5/8")
-
5313-26992 LOCKWASHER, PLATE SCREWLOCKWASHER, PLATE SCREW
-
5456855 SHAFT ASSEMBLY, OIL PUMPSHAFT ASSEMBLY, OIL PUMP
-
5553-56860 RING, RETAINING - OIL PUMP SHAFTRING, RETAINING - OIL PUMP SHAFT
-
5656178 ROTOR AND SHAFT, OIL PUMPROTOR AND SHAFT, OIL PUMP
-
5710-56176 SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")SCREW, OIL PUMP TO CYLINDER BLOCK (1 1/4")
-
5813-56177 LOCKWASHER, OIL PUMP SCREWLOCKWASHER, OIL PUMP SCREW
-
5961566 OIL PANOIL PAN
-
6027-64798 GASKET SET, OIL PANGASKET SET, OIL PAN
-
6122-36373 PLUG, PIPE - OIL PAN DRAINPLUG, PIPE - OIL PAN DRAIN
-
6210-55714 SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18 X 7/8")
-
6310-55715 SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8")SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20 X 7/8")
-
6412-46897 WASHER, OIL PAN SCREWWASHER, OIL PAN SCREW
-
6522-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PANELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
-
6611-47626 NUT, OIL LEVEL GAUGE TUBENUT, OIL LEVEL GAUGE TUBE
-
6786890A2 TUBE, OIL LEVEL GAUGETUBE, OIL LEVEL GAUGE
-
6847404 BRACKET, OIL LEVEL GAUGE TUBE CLIPBRACKET, OIL LEVEL GAUGE TUBE CLIP
-
6954-475451 CLIP, OIL LEVEL GAUGE TUBECLIP, OIL LEVEL GAUGE TUBE
-
7010-33524 SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8")SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8")
-
7113-39107 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREWLOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
-
7211-22053 NUT, OIL LEVEL GAUGE TUBE CLIP SCREWNUT, OIL LEVEL GAUGE TUBE CLIP SCREW
-
7355241T GAUGE, OIL LEVEL (DIPSTICK) STERN DRIVEGAUGE, OIL LEVEL (DIPSTICK) STERN DRIVE
-
7386194220 GAUGE, OIL LEVEL (DIPSTICK) - INBOARDGAUGE, OIL LEVEL (DIPSTICK) - INBOARD
-
-853-6088 HYDRAULIC SHIFT (STANDARD ROTATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410HYDRAULIC SHIFT (STANDARD ROTATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 -
-853-6089 HYDRAULIC SHIFT (OPPOSITE ROATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410HYDRAULIC SHIFT (OPPOSITE ROATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 -
-853-6088 ELECTRIC SHIFT (STANDARD ROTATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410ELECTRIC SHIFT (STANDARD ROTATION)
MARINE 215 SHORT-BLOCK SERIAL 00000000-03040410 -
-853-6088 MIE STANDARD ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036MIE STANDARD ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036 -
-853-6089 MIE OPPOSITE ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036MIE OPPOSITE ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03040411-03085036 -
-853-6088 MIE STANDARD ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999MIE STANDARD ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999 -
-853-6089 MIE OPPOSITE ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999MIE OPPOSITE ROTATION
MARINE 215 SHORT-BLOCK SERIAL 03258182-09999999
