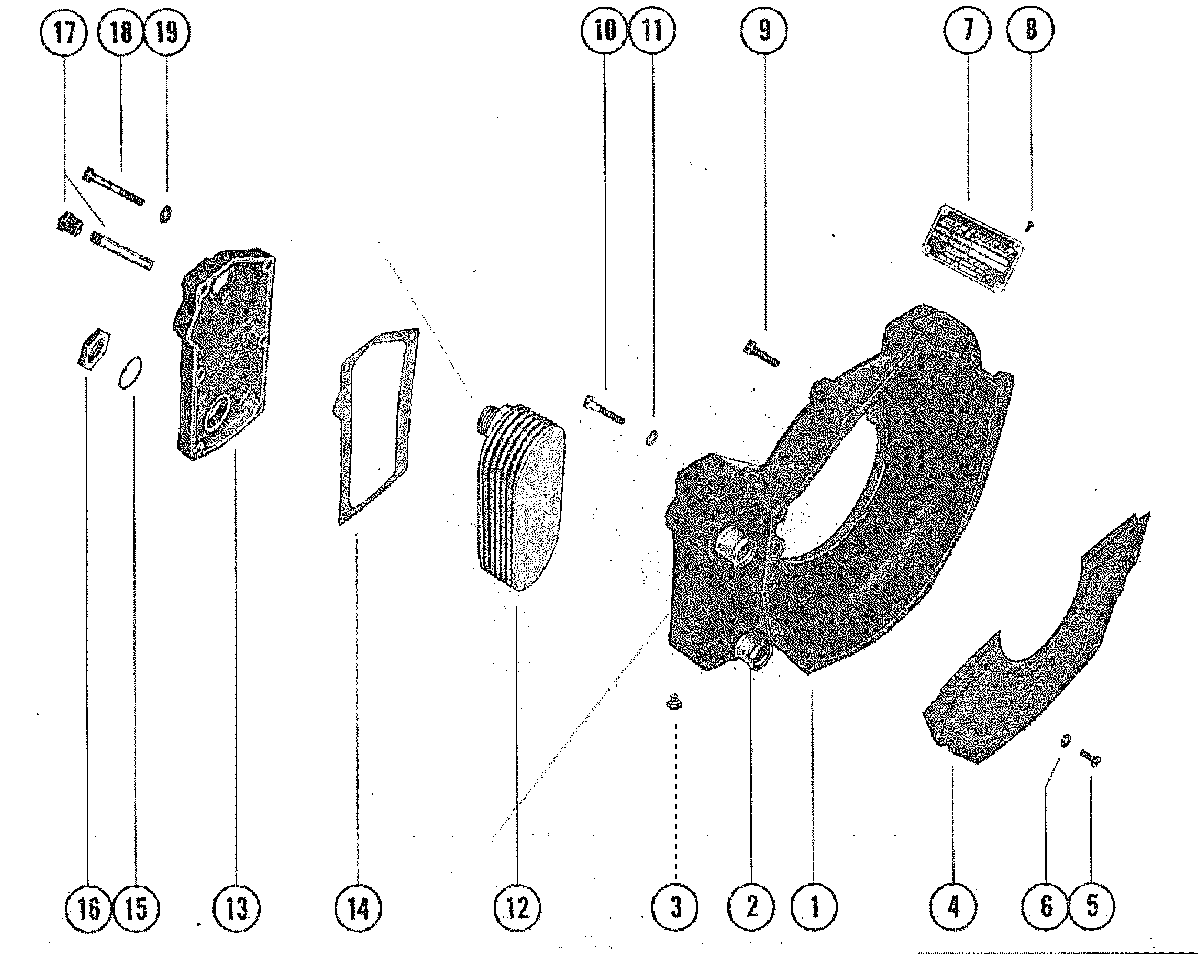

FLYWHEEL HOUSING AND OIL COOLER (INBOARD) для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014
-
№АртикулНазвание
-
147553 HOUSING, FLYWHEELHOUSING, FLYWHEEL
-
223-47511 SLEEVE, CONNECTING - FLYWHEEL HOUSINGSLEEVE, CONNECTING - FLYWHEEL HOUSING
-
322-328022 PLUG, DRAIN - FLYWHEEL HOUSINGPLUG, DRAIN - FLYWHEEL HOUSING
-
447542 COVER, FLYWHEEL HOUSINGCOVER, FLYWHEEL HOUSING
-
510-28635 SCREW, COVER TO FLYWHEEL HOUSING (5/8")SCREW, COVER TO FLYWHEEL HOUSING (5/8")
-
613-26992 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
738-47520 SERIAL PLATESERIAL PLATE
-
810-20314 SCREW,SERIAL PLATE ATTACHINGSCREW,SERIAL PLATE ATTACHING
-
910-37612 SCREW, FLYWHEEL HOUSING TO ENGINE (1 1/4")SCREW, FLYWHEEL HOUSING TO ENGINE (1 1/4")
-
1010-45363 SCREW, FLYWHEEL HOUSING TO ENGINE (2 5/8")SCREW, FLYWHEEL HOUSING TO ENGINE (2 5/8")
-
1112-33181 WASHER, SEALING - FLYWHEEL HOUSING SCREWWASHER, SEALING - FLYWHEEL HOUSING SCREW
-
1247610A15 COOLER, OILCOOLER, OIL
-
1394911A2 COVER, OIL COOLERCOVER, OIL COOLER
-
1427-47495 GASKET, OIL COOLER COVERGASKET, OIL COOLER COVER
-
1525-864701 "O" RING, SEALING - OIL COOLER"O" RING, SEALING - OIL COOLER
-
1611-47521 NUT, JAM - OIL COOLERNUT, JAM - OIL COOLER
-
1797-806000 ELECTRODE, OIL COOLERELECTRODE, OIL COOLER
-
1810-73657 SCREW, OIL COOLER COVER TO FLYWHEEL HOUSING (1 7/16")SCREW, OIL COOLER COVER TO FLYWHEEL HOUSING (1 7/16")
-
1912-36533 WASHER, OIL COOLER COVER SCREWWASHER, OIL COOLER COVER SCREW
-
1913-26993 LOCKWASHER, OIL COOLER COVER SCREWLOCKWASHER, OIL COOLER COVER SCREW
