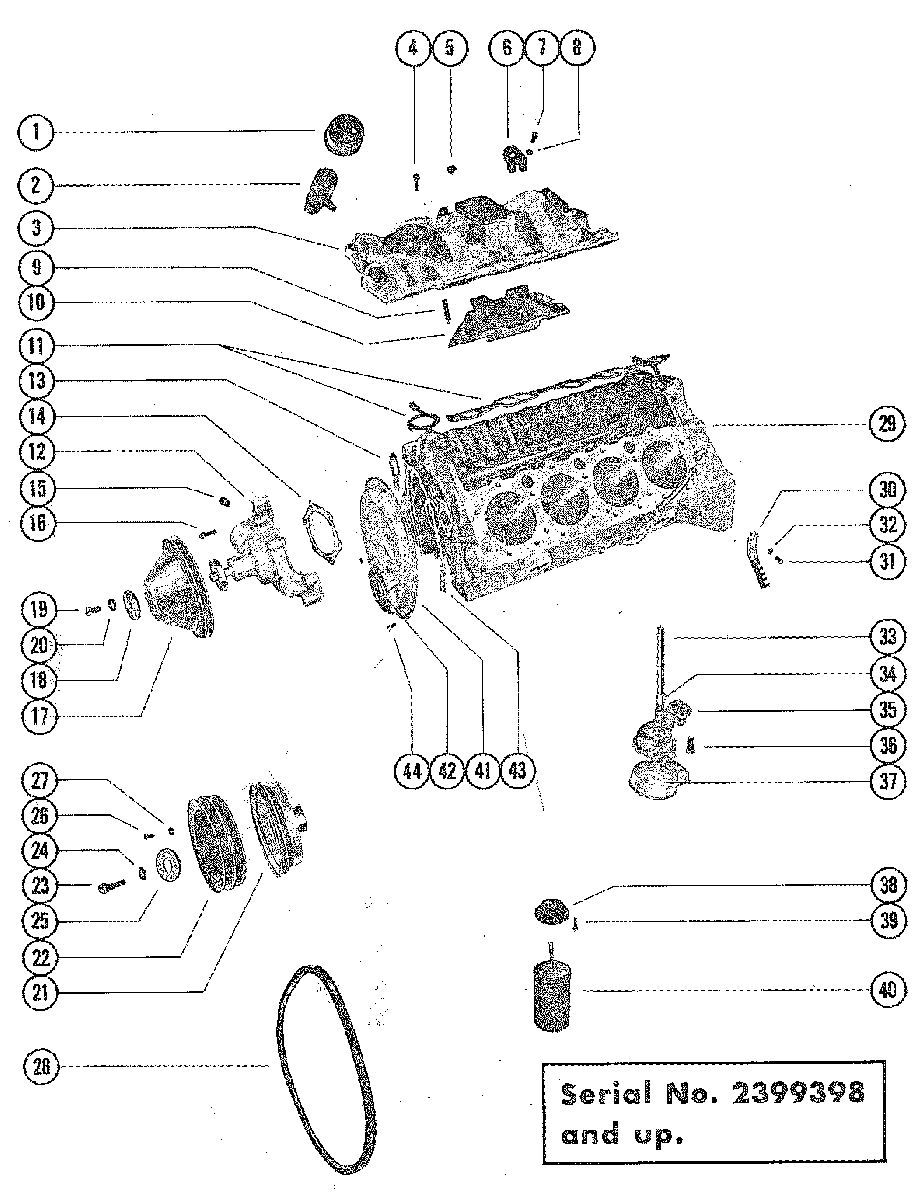

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014
-
№АртикулНазвание
-
133224 OIL FILLER CAP ASSEMBLY
SERIAL 02399398-02595696OIL FILLER CAP ASSEMBLY
SERIAL 02399398-02595696 -
232-47733 TUBE ASSEMBLY, OIL FILLER CAP
SERIAL 02399398-02595696TUBE ASSEMBLY, OIL FILLER CAP
SERIAL 02399398-02595696 -
352227 INTAKE MANIFOLD
SERIAL 02399398-02595696INTAKE MANIFOLD
SERIAL 02399398-02595696 -
354794 INTAKE MANIFOLD
SERIAL 02595697-09999999INTAKE MANIFOLD
SERIAL 02595697-09999999 -
410-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
-
410-52200 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
-
522-48336 PLUG, PIPE-INTAKE MANIFOLDPLUG, PIPE-INTAKE MANIFOLD
-
654-49647 EYE, LIFTINGEYE, LIFTING
-
654-47512 EYE, LIFTINGEYE, LIFTING
-
710-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")SCREW, LIFTING EYE ATTACHING (1 1/2")
-
813-35048 LOCKWASHER, LIFTING EYE SCREWLOCKWASHER, LIFTING EYE SCREW
-
916-52228 STUD, GUARD TO INTAKE MANIFOLDSTUD, GUARD TO INTAKE MANIFOLD
-
1035422 GUARD, INTAKE MANIFOLD
SERIAL 02399398-02595696GUARD, INTAKE MANIFOLD
SERIAL 02399398-02595696 -
1127-52201 GASKET SET, INTAKE MANIFOLD
SERIAL 02399398-02595696GASKET SET, INTAKE MANIFOLD
SERIAL 02399398-02595696 -
1246-8M0113734 WATER PUMP ASSEMBLY
SERIAL 02399398-02595696WATER PUMP ASSEMBLY
SERIAL 02399398-02595696 -
1323-34987 GASKET, WATER PUMP MOUNTING
SERIAL 02399398-02595696GASKET, WATER PUMP MOUNTING
SERIAL 02399398-02595696 -
1427-35380 GASKET, WATER PUMP BACKING PLATE
SERIAL 02399398-02595696GASKET, WATER PUMP BACKING PLATE
SERIAL 02399398-02595696 -
1054795 GUARD, INTAKE MANIFOLD
SERIAL 02595697-09999999GUARD, INTAKE MANIFOLD
SERIAL 02595697-09999999 -
1127-54792 GASKET SET, INTAKE MANIFOLD
SERIAL 02595697-09999999GASKET SET, INTAKE MANIFOLD
SERIAL 02595697-09999999 -
1246-8M0113734 WATER PUMP ASSEMBLY
SERIAL 02595697-09999999WATER PUMP ASSEMBLY
SERIAL 02595697-09999999 -
1327-34897 GASKET, WATER PUMP MOUNTING
SERIAL 02595697-09999999GASKET, WATER PUMP MOUNTING
SERIAL 02595697-09999999 -
1427-35380 GASKET, WATER PUMP BACKING PLATE
SERIAL 02595697-09999999GASKET, WATER PUMP BACKING PLATE
SERIAL 02595697-09999999 -
1522-48336 PLUG, PIPE - WATER PUMPPLUG, PIPE - WATER PUMP
-
1610-48424 SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")
-
1610-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
-
1733864 PULLEY, WATER PUMP
SERIAL 02399398-02595696PULLEY, WATER PUMP
SERIAL 02399398-02595696 -
1752349 PULLEY, WATER PUMP
SERIAL 02595697-09999999PULLEY, WATER PUMP
SERIAL 02595697-09999999 -
1847282 SUPPORT, WATER PUMP PULLEY
SERIAL 02399398-02595696SUPPORT, WATER PUMP PULLEY
SERIAL 02399398-02595696 -
--37242 REINFORCEMENT, WATER PUMP PULLEYREINFORCEMENT, WATER PUMP PULLEY
-
1910-47277 SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")
-
2013-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
2148331 BALANCER, HARMONIC - CRANKSHAFT
SERIAL 02399398-02595696BALANCER, HARMONIC - CRANKSHAFT
SERIAL 02399398-02595696 -
2154791 BALANCER, HARMONIC - CRANKSHAFT
SERIAL 02595697-09999999BALANCER, HARMONIC - CRANKSHAFT
SERIAL 02595697-09999999 -
2233863T PULLEY, HARMONIC BALANCERPULLEY, HARMONIC BALANCER
-
2310-34281 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
-
2413-39131 LOCKWASHER, PULLEY AND HARMINIC BALANCER BOLTLOCKWASHER, PULLEY AND HARMINIC BALANCER BOLT
-
2512-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLTWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2610-34352 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCERBOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER
-
2713-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLTLOCKWASHER, CRANKSHAFT PULLEY BOLT
-
2857-48120Q1 BELT, ALTERNATOR DRIVE (46")BELT, ALTERNATOR DRIVE (46")
-
29841-3861 CYLINDER BLOCK ASSEMBLY
SEE G4 FOR BREAKDOWNCYLINDER BLOCK ASSEMBLY
SEE G4 FOR BREAKDOWN -
3035365 SUPPORT, SPARK PLUG LEAD WIRESUPPORT, SPARK PLUG LEAD WIRE
-
3110-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
-
3213-35367 LOCKWASHER, LEAD WIRE SUPPORT SCREWLOCKWASHER, LEAD WIRE SUPPORT SCREW
-
3336184 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
3423-36183 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
3517617 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
3610-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")BOLT, OIL PUMP TO CYLINDER BLOCK (2")
-
3735354 SCREEN ASSEMBLY, OIL PUMPSCREEN ASSEMBLY, OIL PUMP
-
3871920 FILTER VALVE ASSEMBLY
SERIAL 02399398-02595696FILTER VALVE ASSEMBLY
SERIAL 02399398-02595696 -
3910-52183 SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")
SERIAL 02399398-02595696SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")
SERIAL 02399398-02595696 -
4035-866340Q03 OIL FILTER ASSEMBLY
SERIAL 02399398-02595696OIL FILTER ASSEMBLY
SERIAL 02399398-02595696 -
4152199 COVER ASSEMBLY, CRANKCASE FRONT END
SERIAL 02399398-02595696COVER ASSEMBLY, CRANKCASE FRONT END
SERIAL 02399398-02595696 -
4226-97335 OIL SEAL, CRANKCASE FRONT END COVER
SERIAL 02399398-02595696OIL SEAL, CRANKCASE FRONT END COVER
SERIAL 02399398-02595696 -
3871920 FILTER VALVE ASSEMBLEY
SERIAL 02595697-09999999FILTER VALVE ASSEMBLEY
SERIAL 02595697-09999999 -
3910-36404 SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")
SERIAL 02595697-09999999SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")
SERIAL 02595697-09999999 -
4035-866340Q03 OIL FILTER ASSEMBLY
SERIAL 02595697-09999999OIL FILTER ASSEMBLY
SERIAL 02595697-09999999 -
418M0127828 COVER ASSEMBLY, CRANKCASE FRONT END
SERIAL 02595697-09999999COVER ASSEMBLY, CRANKCASE FRONT END
SERIAL 02595697-09999999 -
4226-97335 OIL SEAL, CRANKCASE FRONT END COVER
SERIAL 02595697-09999999OIL SEAL, CRANKCASE FRONT END COVER
SERIAL 02595697-09999999 -
4327-14250 GASKET, CRANKCASE FRONT END COVERGASKET, CRANKCASE FRONT END COVER
-
4410-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
