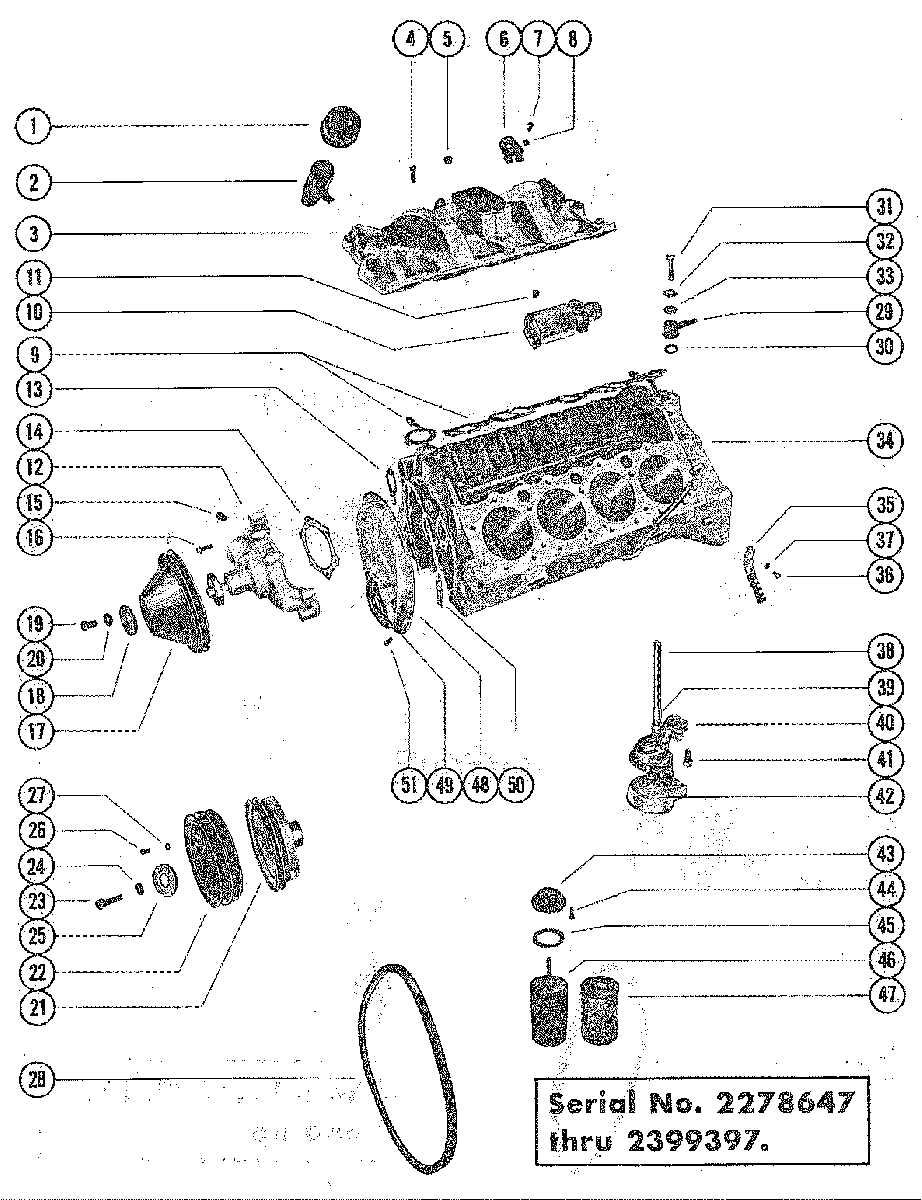

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 225 MIE GM 327 V-8 1968 2278647 THRU 2694014
-
№АртикулНазвание
-
133224 OIL FILLER CAP ASSEMBLYOIL FILLER CAP ASSEMBLY
-
232-49601 TUBE ASSEMBLY, OIL FILLER CAP (STERN DRIVE)TUBE ASSEMBLY, OIL FILLER CAP (STERN DRIVE)
-
232-47733 TUBE ASSEMBLY, OIL FILLER CAP (INBOARD)TUBE ASSEMBLY, OIL FILLER CAP (INBOARD)
-
352227 INTAKE MANIFOLDINTAKE MANIFOLD
-
410-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
-
416-48337 STUD, INTAKE MANIFOLD TO CYLINDER BLOCKSTUD, INTAKE MANIFOLD TO CYLINDER BLOCK
-
522-48336 PLUG, PIPE-INTAKE MANIFOLDPLUG, PIPE-INTAKE MANIFOLD
-
654-49647 EYE, LIFTINGEYE, LIFTING
-
654-47512 EYE, LIFTINGEYE, LIFTING
-
710-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")SCREW, LIFTING EYE ATTACHING (1 1/2")
-
813-35048 LOCKWASHER, LIFTING EYE SCREWLOCKWASHER, LIFTING EYE SCREW
-
927-52201 GASKET SET, INTAKE MANIFOLDGASKET SET, INTAKE MANIFOLD
-
1035357 VENTILATOR ASSEMBLY, CYLINDER BLOCKVENTILATOR ASSEMBLY, CYLINDER BLOCK
-
1110-8M0040582 SCREW, VENTILATOR TO CYLINDER BLOCK (7/16")SCREW, VENTILATOR TO CYLINDER BLOCK (7/16")
-
1246-8M0113734 WATER PUMP ASSEMBLYWATER PUMP ASSEMBLY
-
1327-34897 GASKET, WATER PUMP MOUNTINGGASKET, WATER PUMP MOUNTING
-
1427-35380 GASKET, WATER PUMP BACKING PLATEGASKET, WATER PUMP BACKING PLATE
-
1522-48336 PLUG, PIPE-WATER PUMPPLUG, PIPE-WATER PUMP
-
1610-32132 BOLT, WATER PUMP TO CYLINDER BLOCK (1 3/4")BOLT, WATER PUMP TO CYLINDER BLOCK (1 3/4")
-
1610-47688 BOLT, WATER PUMP TO CYLINDER BLOCK (2 3/4")BOLT, WATER PUMP TO CYLINDER BLOCK (2 3/4")
-
1610-35344 BOLT, WATER PUMP TO CYLINDER BLOCK (1 5/8")BOLT, WATER PUMP TO CYLINDER BLOCK (1 5/8")
-
1616-8M0076418 STUD, WATER PUMP TO CYLINDER BLOCKSTUD, WATER PUMP TO CYLINDER BLOCK
-
1733864 PULLEY, WATER PUMPPULLEY, WATER PUMP
-
1847282 SUPPORT, WATER PUMP PULLEYSUPPORT, WATER PUMP PULLEY
-
--37242 REINFORCEMENT, WATER PUMP PULLEYREINFORCEMENT, WATER PUMP PULLEY
-
1910-47277 SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")
-
2013-39107 LOCKWASHER, WATER PUMP PULLEY SCREWLOCKWASHER, WATER PUMP PULLEY SCREW
-
2148331 BALANCER, HARMONIC-CRANKSHAFTBALANCER, HARMONIC-CRANKSHAFT
-
2233863T PULLEY, HARMONIC BALANCERPULLEY, HARMONIC BALANCER
-
2310-34281 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
-
2413-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLTLOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2512-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLTWASHER, PULLEY AND HARMONIC BALANCER BOLT
-
2610-34352 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCERBOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER
-
2713-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLTLOCKWASHER, CRANKSHAFT PULLEY BOLT
-
2857-48120Q1 BELT, ALTERNATOR DRIVE (46")BELT, ALTERNATOR DRIVE (46")
-
2937645A1 ADAPTOR ASSEMBLY, VENTADAPTOR ASSEMBLY, VENT
-
3027-34565 GASKET, VENT ADAPTORGASKET, VENT ADAPTOR
-
3110-39245 SCREW, VENT ADAPTOR TO CYLINDER BLOCKSCREW, VENT ADAPTOR TO CYLINDER BLOCK
-
3212-37507 WASHER, VENT ADAPTOR SCREWWASHER, VENT ADAPTOR SCREW
-
3327-35593 GASKET, VENT ADAPTOR SCREWGASKET, VENT ADAPTOR SCREW
-
34841-2350 CYLINDER BLOCK ASSEMBLY
SEE G2 FOR BREAKDOWNCYLINDER BLOCK ASSEMBLY
SEE G2 FOR BREAKDOWN -
35398-3565 SUPPORT, SPARK PLUG LEAD WIRESUPPORT, SPARK PLUG LEAD WIRE
-
3610-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
-
3713-35367 LOCKWASHER, LEAD WIRE SUPPORT SCREWLOCKWASHER, LEAD WIRE SUPPORT SCREW
-
3836184 SHAFT, OIL PUMP TO DISTRIBUTORSHAFT, OIL PUMP TO DISTRIBUTOR
-
3923-36183 RETAINER, OIL PUMP SHAFTRETAINER, OIL PUMP SHAFT
-
4017617 OIL PUMP ASSEMBLYOIL PUMP ASSEMBLY
-
4110-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")BOLT, OIL PUMP TO CYLINDER BLOCK (2")
-
4235354 SEREEN ASSEMBLY, OIL PUMPSEREEN ASSEMBLY, OIL PUMP
-
4333169 FILTER VALVE ASSEMBLYFILTER VALVE ASSEMBLY
-
4410-24878 SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")SCREW, FILTER VALVE TO CYLINDER BLOCK (1 1/4")
-
4525-33756 "O" RING, OIL FILTER TO FILTER VALVE"O" RING, OIL FILTER TO FILTER VALVE
-
4633168 OIL FILTER ASSEMBLYOIL FILTER ASSEMBLY
-
4733987 ELEMENT, OIL FILTERELEMENT, OIL FILTER
-
4835315 COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
-
4848339 COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
-
4926-97335 OIL SEAL, CRANKCASE FRONT END COVEROIL SEAL, CRANKCASE FRONT END COVER
-
5027-14250 GASKET, CRANKCASE FRONT END COVERGASKET, CRANKCASE FRONT END COVER
-
5110-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
