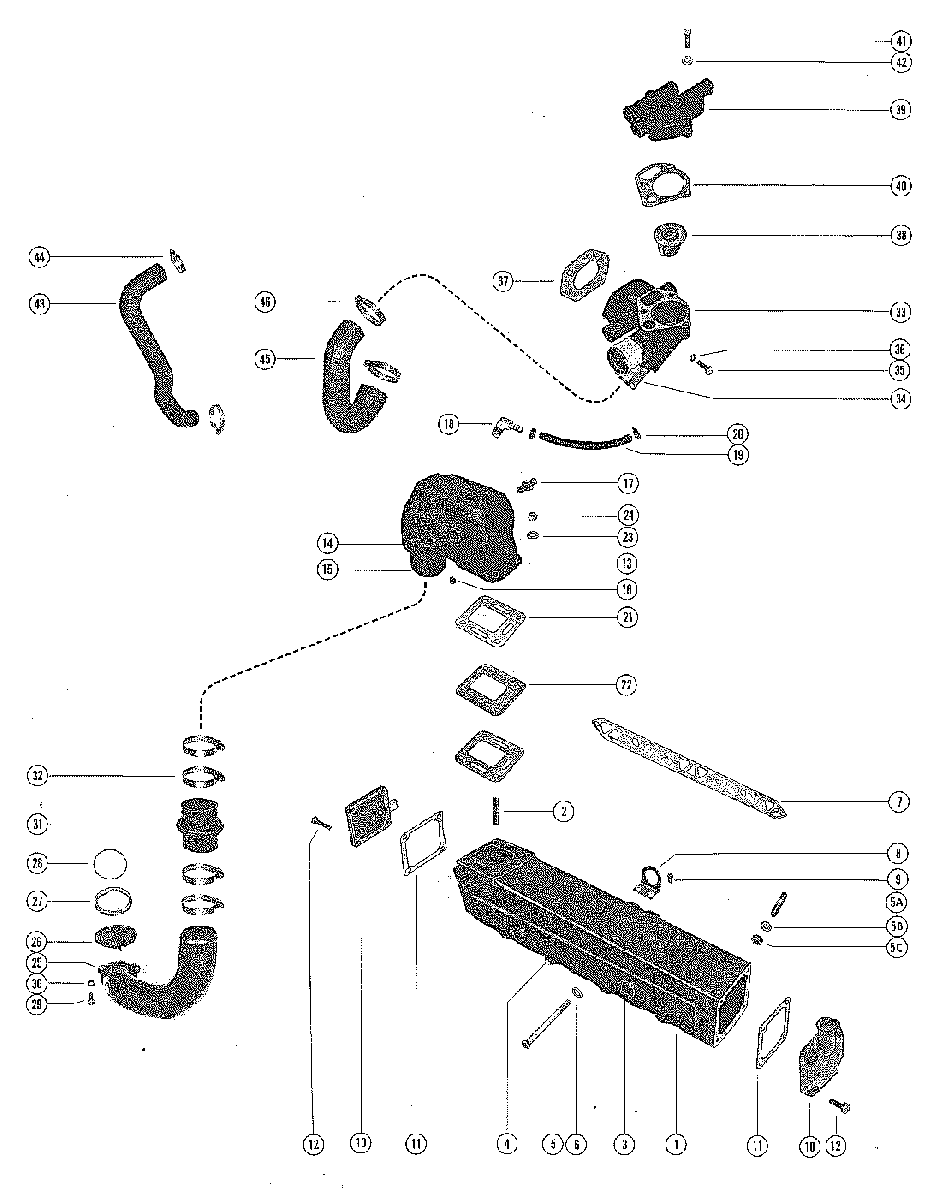

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499
-
№АртикулНазвание
-
165604A12 EXHAUST MANIFOLD ASSEMBLY, PORT
SERIAL 00000000-03838787EXHAUST MANIFOLD ASSEMBLY, PORT
SERIAL 00000000-03838787 -
165603A12 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
SERIAL 00000000-03838787EXHAUST MANIFOLD ASSEMBLY, STARBOARD
SERIAL 00000000-03838787 -
216-49545 STUD, EXHAUST MANIFOLD TO EXHUAST ELBOW (1 3/4")
SERIAL 00000000-03838787STUD, EXHAUST MANIFOLD TO EXHUAST ELBOW (1 3/4")
SERIAL 00000000-03838787 -
322-48118 PLUG, EXHUAST MANIFOLD
SERIAL 00000000-03838787PLUG, EXHUAST MANIFOLD
SERIAL 00000000-03838787 -
422-328022 PLUG, PIPE - EXHAUST MANIFOLD
SERIAL 00000000-03838787PLUG, PIPE - EXHAUST MANIFOLD
SERIAL 00000000-03838787 -
510-37612 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 00000000-03838787SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/4")
SERIAL 00000000-03838787 -
613-35048 LOCKWASHER, EXHAUST MANIFOLD TO CYLINDER HEAD SCREW
SERIAL 00000000-03838787LOCKWASHER, EXHAUST MANIFOLD TO CYLINDER HEAD SCREW
SERIAL 00000000-03838787 -
165604A12 EXHAUST MANIFOLD ASSEMBLY, PORT SERIAL # AND UP
SERIAL 03838788-09999999EXHAUST MANIFOLD ASSEMBLY, PORT SERIAL # AND UP
SERIAL 03838788-09999999 -
165603A12 EXHUAST MANIFOLD ASSEMBLY, STARBOARD
SERIAL 03838788-09999999EXHUAST MANIFOLD ASSEMBLY, STARBOARD
SERIAL 03838788-09999999 -
216-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW 1 3/4")
SERIAL 03838788-09999999STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW 1 3/4")
SERIAL 03838788-09999999 -
422-328022 PLUG, PIPE - EXHAUST MANIFOLD
SERIAL 03838788-09999999PLUG, PIPE - EXHAUST MANIFOLD
SERIAL 03838788-09999999 -
5A16-49545 STUD, EXHAUST MANIFOLD TO CYL. HEAD (1 3/4")
SERIAL 03838788-09999999STUD, EXHAUST MANIFOLD TO CYL. HEAD (1 3/4")
SERIAL 03838788-09999999 -
5A16-65947 STUD, EXHAUST MANIFOLD TO CYL. HEAD (3 1/16")
SERIAL 03838788-09999999STUD, EXHAUST MANIFOLD TO CYL. HEAD (3 1/16")
SERIAL 03838788-09999999 -
5B13-35048 WASHER, EXHAUST MANIFOLD STUD
SERIAL 03838788-09999999WASHER, EXHAUST MANIFOLD STUD
SERIAL 03838788-09999999 -
5C11-49838 NUT, EXHAUST MANIFOLD STUD
SERIAL 03838788-09999999NUT, EXHAUST MANIFOLD STUD
SERIAL 03838788-09999999 -
727-73866 GASKET, EXHAUST MANIFOLD TO CYLINDER HEADGASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
-
854-54509 EYE, LIFTING - EXHAUST MANIFOLDEYE, LIFTING - EXHAUST MANIFOLD
-
910-98261 SCREW, LIFTING EYE ATTACHING (3/4")SCREW, LIFTING EYE ATTACHING (3/4")
-
1060252A2 END CAP/CONNECTOR, EXHAUST MANIFOLDEND CAP/CONNECTOR, EXHAUST MANIFOLD
-
1127-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLDGASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
-
1210-35386 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1")
-
1210-74824 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (1 1/4")
-
1073813A1 END CAP, EXHAUST MANIFOLD - REAR
V-DRIVE ONLYEND CAP, EXHAUST MANIFOLD - REAR
V-DRIVE ONLY -
1127-480431 GASKET, END CAP TO MANIFOLD
V-DRIVE ONLYGASKET, END CAP TO MANIFOLD
V-DRIVE ONLY -
1210-23703 SCREW, END CAP TO MANIFOLD (7/8") 8
V-DRIVE ONLYSCREW, END CAP TO MANIFOLD (7/8") 8
V-DRIVE ONLY -
1376351A04 EXHAUST ELBOW ASSEMBLEY (STERN DRIVE)EXHAUST ELBOW ASSEMBLEY (STERN DRIVE)
-
1376771A2 EXHAUST ELBOW ASSMEBLY (INBOARD)EXHAUST ELBOW ASSMEBLY (INBOARD)
-
1422-416223 PLUG, EXHAUST ELBOWPLUG, EXHAUST ELBOW
-
1532-58616A2 TUBE, WATER SEPARATION - EXHAUST ELBOWTUBE, WATER SEPARATION - EXHAUST ELBOW
-
1622-328022 PLUG, PIPE - EXHAUAST ELBOWPLUG, PIPE - EXHAUAST ELBOW
-
1722-866725 FITTING, EXHAUST ELBOWFITTING, EXHAUST ELBOW
-
1822-629101 FITTING EXHAUST ELBOW STERN DRIVEFITTING EXHAUST ELBOW STERN DRIVE
-
1932-629872 HOSE, EXHAUST ELBOW TO TRANSMISSION COOLER
STERN DRIVEHOSE, EXHAUST ELBOW TO TRANSMISSION COOLER
STERN DRIVE -
2054-815504310 CLAMP, HOSE ATTACHING STERN DRIVE
STERN DRIVECLAMP, HOSE ATTACHING STERN DRIVE
STERN DRIVE -
2127-997772 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
STERN DRIVEGASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
STERN DRIVE -
2260207 PLATE, EXHAUST ELBOW TO EXHAUST MANIFOLDPLATE, EXHAUST ELBOW TO EXHAUST MANIFOLD
-
2313-35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUDLOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
-
2411-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLDNUT, EXHAUST ELBOW TO EXHAUST MANIFOLD
-
2562893 ELBOW, EXHAUST (STARBOARD SIDE)
STERN DRIVEELBOW, EXHAUST (STARBOARD SIDE)
STERN DRIVE -
2562892 ELBOW, EXHAUST (PORT SIDE) STERN DRIVE
STERN DRIVEELBOW, EXHAUST (PORT SIDE) STERN DRIVE
STERN DRIVE -
2660930 WATER SHUTTER, EXHAUST ELBOW STERN DRIVE
STERN DRIVEWATER SHUTTER, EXHAUST ELBOW STERN DRIVE
STERN DRIVE -
2763151T RETAINER, SHUTTER TO EXHAUST ELBOW STERN DRIVE
STERN DRIVERETAINER, SHUTTER TO EXHAUST ELBOW STERN DRIVE
STERN DRIVE -
2825-35029 "O" RING, EXHAUST ELBOW TO TRANSOM PLATE STERN DRIVE
STERN DRIVE"O" RING, EXHAUST ELBOW TO TRANSOM PLATE STERN DRIVE
STERN DRIVE -
2910-8M0113174 SCREW< EXHAUST ELBOW TO TRANSOM PLATE (1 1/4") STERN DRIVE
STERN DRIVESCREW< EXHAUST ELBOW TO TRANSOM PLATE (1 1/4") STERN DRIVE
STERN DRIVE -
3013-35048 LOCKWASHER, EXHAUST ELBOW SCREW STERN DRIVE
STERN DRIVELOCKWASHER, EXHAUST ELBOW SCREW STERN DRIVE
STERN DRIVE -
3153821T BELLOWS, EXHAUST ELBOW
STERN DRIVEBELLOWS, EXHAUST ELBOW
STERN DRIVE -
3254-815504456 CLAMP, BELLOWS TO EXHAUSTE ELBOW
STERN DRIVECLAMP, BELLOWS TO EXHAUSTE ELBOW
STERN DRIVE -
33889333 THERMOSTAT HOUSING ASSEMBLY
SERIAL 00000000-03838787THERMOSTAT HOUSING ASSEMBLY
SERIAL 00000000-03838787 -
33889333 THERMOSTAT HOUSING ASSEMBLY
SERIAL 03838788-09999999THERMOSTAT HOUSING ASSEMBLY
SERIAL 03838788-09999999 -
3423-54476 SLEEVE, THERMOSTAT HOUSINGSLEEVE, THERMOSTAT HOUSING
-
3510-54523 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (1")SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (1")
-
3510-35386 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (1")SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (1")
-
3612-20084 WASHER< THERMOSTAT HOUSING SCREWWASHER< THERMOSTAT HOUSING SCREW
-
3727-54506 GASKET, THERMOSTAT HOUSINGGASKET, THERMOSTAT HOUSING
-
388M0089715 THERMOSTATTHERMOSTAT
-
3959498A1 COVER, THERMOSTATCOVER, THERMOSTAT
-
4027-60208 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
4110-35386 SCREW, THERMOSTAT COVER TO THERMOSTAT HOUSING (1")SCREW, THERMOSTAT COVER TO THERMOSTAT HOUSING (1")
-
4213-39107 LOCKWASHER, THERMOSTAT COVER SCREWLOCKWASHER, THERMOSTAT COVER SCREW
-
4332-54906 HOSE, THERMOSTAT HSG. TO WATER PUMP
STERN DRIVE W/O POWER STEERMINGHOSE, THERMOSTAT HSG. TO WATER PUMP
STERN DRIVE W/O POWER STEERMING -
4332-58466 HOSE, THERMOSTAT HOUSING TO OIL COOLER (INBOARD)HOSE, THERMOSTAT HOUSING TO OIL COOLER (INBOARD)
-
4332-64815 HOSE, THERMOSTAT HOUSING TO OIL COOLER (INBOARD)HOSE, THERMOSTAT HOUSING TO OIL COOLER (INBOARD)
-
4454-815504220 CLAMP, HOSE ATTACHINGCLAMP, HOSE ATTACHING
-
4532-54570 HOSE, THERMOSTAT HOUSING TO WATER PUMPHOSE, THERMOSTAT HOUSING TO WATER PUMP
-
4654-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMPCLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
