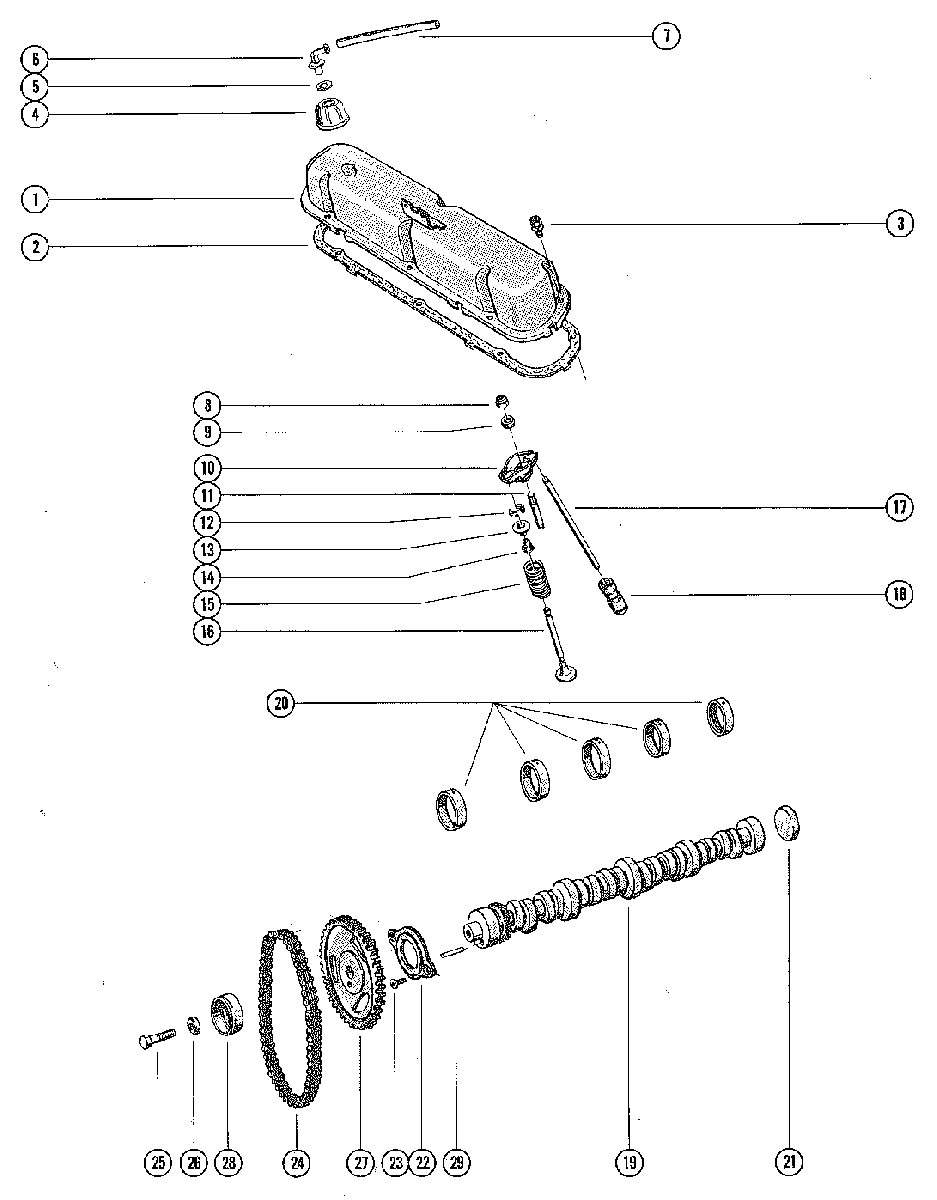

ROCKER COVER, CAMSHAFT AND VALVES для Mercruiser - 255 FORD 351 V-8 1973-1974 3258728 THRU 4175499
-
№АртикулНазвание
-
156156 COVER, ROCKER (PORT)COVER, ROCKER (PORT)
-
156171 COVER, ROCKER (STARBOARD)COVER, ROCKER (STARBOARD)
-
227-56173 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
310-60708 SCREW, ROCKER COVER TO CYULINDER HEAD (9/16")SCREW, ROCKER COVER TO CYULINDER HEAD (9/16")
-
465152 CAP, OIL FILLER - ROCKER COVERCAP, OIL FILLER - ROCKER COVER
-
525-65196 GROMMET, OIL FILLER CAPGROMMET, OIL FILLER CAP
-
665197 ELBOW, OIL FILTER CAPELBOW, OIL FILTER CAP
-
732-630021 HOSE, OIL FILTER CAP TO FLAME ARRESTORHOSE, OIL FILTER CAP TO FLAME ARRESTOR
-
-37-64707 DECAL, ROCKER COVER-"MERCRUISER MARINE"DECAL, ROCKER COVER-"MERCRUISER MARINE"
-
-37-61699 DECAL, HORSEPOWER-"255 HP"DECAL, HORSEPOWER-"255 HP"
-
811-56167 NUT, ROCKER ARM STUDNUT, ROCKER ARM STUD
-
956166 BALL, ROCKER ARMBALL, ROCKER ARM
-
1056168 ARM< ROCKERARM< ROCKER
-
1116-56164 STUD, ROCKER ARM-CYLINDER HEAD (STANDARD)STUD, ROCKER ARM-CYLINDER HEAD (STANDARD)
-
1116-58242 STUD ROCKER ARM - CYLINDER HEAD (.006 O.S.)STUD ROCKER ARM - CYLINDER HEAD (.006 O.S.)
-
1116-58243 STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)STUD, ROCKER ARM - CYLINDER HEAD (.015 O.S.)
-
1228-547971 KEY, VALVE STEM (2 PER VALVE)KEY, VALVE STEM (2 PER VALVE)
-
1372561 RETAINER, VALVE SPRING (INLET AND EXHAUST)RETAINER, VALVE SPRING (INLET AND EXHAUST)
-
1372562 SLEEVE, VALVE SPRING - INLET AND EXHUST (NOT AS SHOWN)SLEEVE, VALVE SPRING - INLET AND EXHUST (NOT AS SHOWN)
-
1426-75624 SEAL, VALVESEAL, VALVE
-
1524-56159 SPRING, VALVESPRING, VALVE
-
1656154 VALVE, EXHAUST (STANDARD)VALVE, EXHAUST (STANDARD)
-
1656155 VALVE, EXHUAST (.015 O.S.)VALVE, EXHUAST (.015 O.S.)
-
1656157 VALVE, INLET (STANDARD)VALVE, INLET (STANDARD)
-
1656158 VALVE, INLET (.015 O.S.)VALVE, INLET (.015 O.S.)
-
1764784 ROD, PUSHROD, PUSH
-
1856153 LIFTER, HYDRAULIC - TAPPETLIFTER, HYDRAULIC - TAPPET
-
19447-5098 CAMSHAFT (LEFT CRANKSHAFT ROATATION)CAMSHAFT (LEFT CRANKSHAFT ROATATION)
-
19447-5099 CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)CAMSHAFT (RIGHT HAND CRANKSHAFT ROTATION)
-
2023-56124 BEARING SET, CAMSHAFTBEARING SET, CAMSHAFT
-
2119-56128 PLUG, EXPANSION - CAMSHAFT BEARING HOLEPLUG, EXPANSION - CAMSHAFT BEARING HOLE
-
2256130 PLATE, THRUST - CAMSHAFT (STANDARD)PLATE, THRUST - CAMSHAFT (STANDARD)
-
2256131 PLATE, THRUST - CAMSHAFT (.002 OS)PLATE, THRUST - CAMSHAFT (.002 OS)
-
2256132 PLATE, THRUST - CAMSHAFT (.004 OS)PLATE, THRUST - CAMSHAFT (.004 OS)
-
2310-56133 SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")SCREW, THRUST PLATE TO CYLINDER BLOCK (5/8")
-
2456129 CHAIN, TIMINGCHAIN, TIMING
-
2510-56138 SCREW, ECCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")SCREW, ECCENTRIC AND SPROCKET TO CAMSHAFT (1 1/2")
-
2612-56136 WASHER, ECCENTRIC AND SPROCKET SCREWWASHER, ECCENTRIC AND SPROCKET SCREW
-
2743-66177A1 SPROCKET, CAMSHAFT TIMING (42 TEETH)
SEE NOTESPROCKET, CAMSHAFT TIMING (42 TEETH)
SEE NOTE -
2856137 ECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE)-1 PIECE
SEE NOTEECCENTRIC, CAMSHAFT (FUEL PUMP DRIVE)-1 PIECE
SEE NOTE -
2917-66176 PIN, DOWEL-CAMSHAFT
SEE NOTEPIN, DOWEL-CAMSHAFT
SEE NOTE -
2743-66177A1 SPROCKET ASS'Y, CAMSHAFT TIMING (42 TEETH)
SEE NOTESPROCKET ASS'Y, CAMSHAFT TIMING (42 TEETH)
SEE NOTE -
2871684 ECCENTRIC ASS'Y, CAMSHAFT (FUEL PUMP DRIVE)-2PIECE
SEE NOTEECCENTRIC ASS'Y, CAMSHAFT (FUEL PUMP DRIVE)-2PIECE
SEE NOTE -
2917-66180 PIN, DOWEL - CAMSHAFT
SEE NOTEPIN, DOWEL - CAMSHAFT
SEE NOTE
