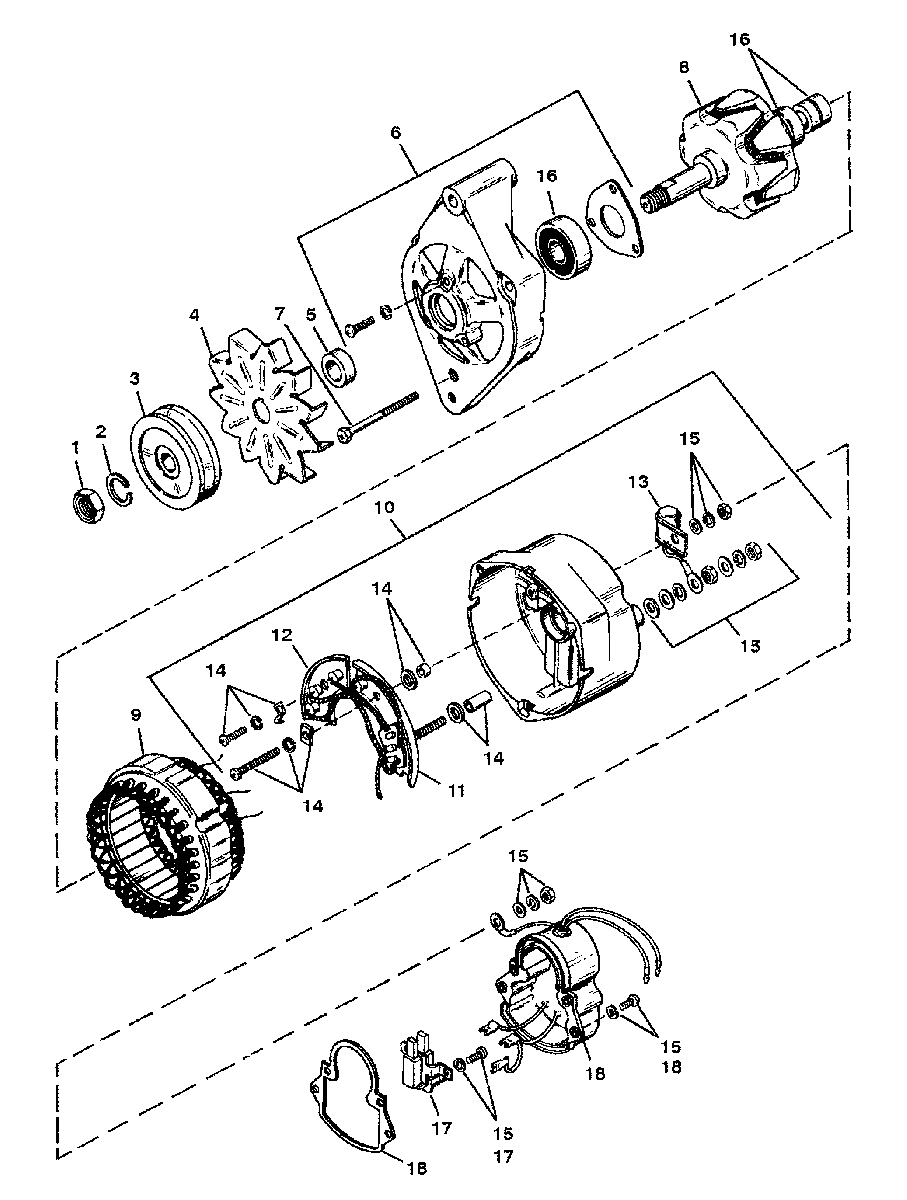

ALTERNATOR (MANDO #AR-150) для Mercruiser - 350 MAG (SKI) GM 350 V-8 1991-1996 0D505450 THRU 0K040399
-
№АртикулНазвание
-
-817119A4 ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
111-809136 NUTNUT
-
213-42769 LOCKWASHERLOCKWASHER
-
3809134 PULLEYPULLEY
-
442771 FANFAN
-
523-42772 SPACERSPACER
-
642774 FRONT BRACKETFRONT BRACKET
-
710-42773 BOLTBOLT
-
842775 ROTOR (INCLUDES BEARINGS)ROTOR (INCLUDES BEARINGS)
-
942776 STATORSTATOR
-
1042777 REAR BRACKETREAR BRACKET
-
1142778 HEAT SINKHEAT SINK
-
1242779 HEAT SINKHEAT SINK
-
1342780 CONDENSERCONDENSER
-
1442783 HARDWARE KIT
(INTERNAL)HARDWARE KIT
(INTERNAL) -
1542782 HARDWARE KIT
(EXTERNAL)HARDWARE KIT
(EXTERNAL) -
1642781 BEARING KITBEARING KIT
-
1742784 BRUSH HOLDER (INCL. SPRINGS & BRUSHES)BRUSH HOLDER (INCL. SPRINGS & BRUSHES)
-
1842785 REGULATOR KITREGULATOR KIT
