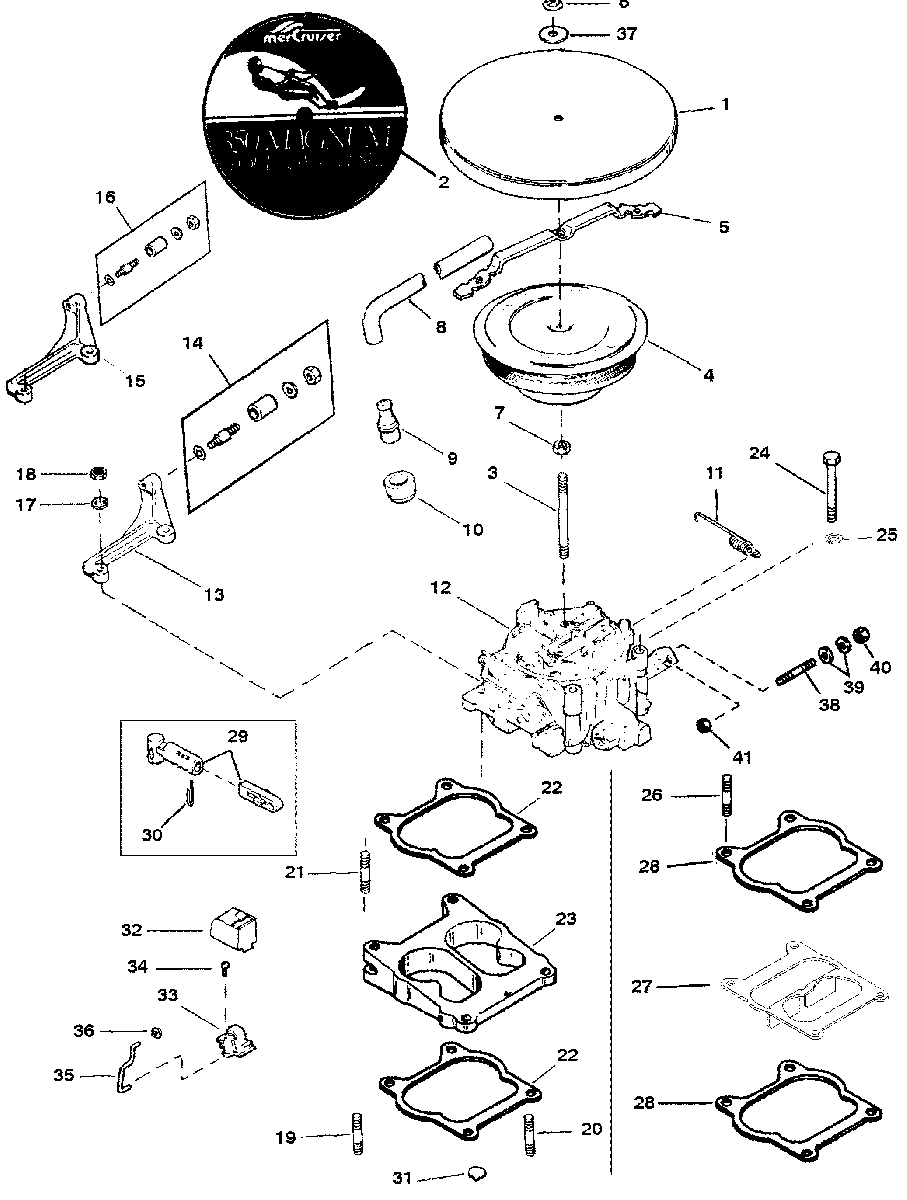

CARBURETOR AND THROTTLE LINKAGE для Mercruiser - 350 MAG (SKI) GM 350 V-8 1991-1996 0D505450 THRU 0K040399
-
№АртикулНазвание
-
114605T1 CARBURETOR COVERCARBURETOR COVER
-
237-81893920 DECAL
(THUNDERBOLT IV)DECAL
(THUNDERBOLT IV) -
237-81893938 DECAL
(THUNDERBOLT V)DECAL
(THUNDERBOLT V) -
316-805161 STUD (4-3/4")STUD (4-3/4")
-
316-805296 STUD (4-1/2")STUD (4-1/2")
-
4805298A1 FLAME ARRESTORFLAME ARRESTOR
-
5805314 RETAINERRETAINER
-
611-826709109 NUTNUT
-
711-8267139 JAM NUTJAM NUT
-
832-8M0062669 HOSEHOSE
-
997850T ELBOW (90_)ELBOW (90_)
-
1023-8M0071559 GROMMETGROMMET
-
1124-897454 SPRINGSPRING
-
123310-807262R02 CARBURETORCARBURETOR
-
13805359T BRACKET
(CAST)BRACKET
(CAST) -
1416-97477A3 STUD KITSTUD KIT
-
15805359T BRACKET
(STAMPED)BRACKET
(STAMPED) -
1616-97477A3 STUDSTUD
-
1712-20084 WASHERWASHER
-
1811-862902 NUTNUT
-
1916-53724 STUD (1-3/4")
USE WITH WEBER CARB # 9770SASTUD (1-3/4")
USE WITH WEBER CARB # 9770SA -
2016-63332 STUD (1-9/32")
USE WITH WEBER CARB # 9770SASTUD (1-9/32")
USE WITH WEBER CARB # 9770SA -
2116-8M0113177 STUD (1-1/2")
USE WITH WEBER CARB # 9770SASTUD (1-1/2")
USE WITH WEBER CARB # 9770SA -
2227-524572 GASKET
USE WITH WEBER CARB # 9770SAGASKET
USE WITH WEBER CARB # 9770SA -
23821109T PLATE
USE WITH WEBER CARB # 9770SAPLATE
USE WITH WEBER CARB # 9770SA -
2410-35386 SCREW (1")
USE WITH WEBER CARB # 9781SCREW (1")
USE WITH WEBER CARB # 9781 -
2513-39107 LOCKWASHER
USE WITH WEBER CARB # 9781LOCKWASHER
USE WITH WEBER CARB # 9781 -
2616-8M0113177 STUD (1-1/2")
USE WITH WEBER CARB # 9781STUD (1-1/2")
USE WITH WEBER CARB # 9781 -
27807228A1 SPACER
USE WITH WEBER CARB # 9781SPACER
USE WITH WEBER CARB # 9781 -
2827-524572 GASKET
USE WITH WEBER CARB # 9781GASKET
USE WITH WEBER CARB # 9781 -
2964-892790A01 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
3064-892790A01 CLIPCLIP
-
3122-12524 PLUGPLUG
-
3263922 COVER
AUTOMATIC CHOKECOVER
AUTOMATIC CHOKE -
3366205 CHOKE
AUTOMATIC CHOKECHOKE
AUTOMATIC CHOKE -
3410-69235 SCREW
AUTOMATIC CHOKESCREW
AUTOMATIC CHOKE -
35806938 CHOKE ROD
AUTOMATIC CHOKECHOKE ROD
AUTOMATIC CHOKE -
3653-818299 E-RING
AUTOMATIC CHOKEE-RING
AUTOMATIC CHOKE -
3712-20533 WASHERWASHER
-
3816-8M0113178 STUDSTUD
-
3912-29245 WASHERWASHER
-
4011-8267089 NUTNUT
-
4111-826709109 NUTNUT
-
-27-806871A96 GASKET SET-OVERHAULGASKET SET-OVERHAUL
