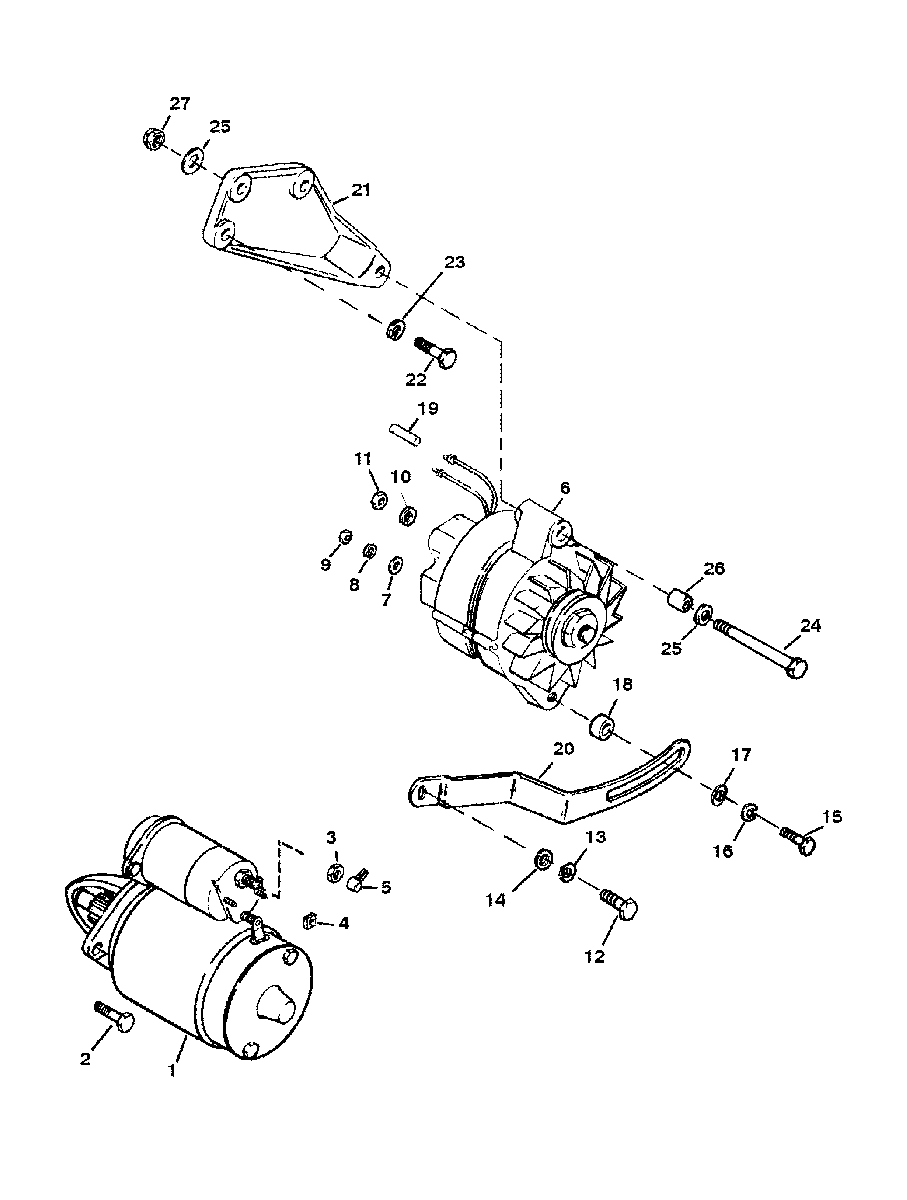

STARTER AND ALTERNATOR для Mercruiser - 350 MAG (SKI) GM 350 V-8 1991-1996 0D505450 THRU 0K040399
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR
3-1/4" DIAMETER END CAPSTARTER MOTOR
3-1/4" DIAMETER END CAP -
210-8053432 SCREW
3-1/4" DIAMETER END CAPSCREW
3-1/4" DIAMETER END CAP -
311-15874 NUT (10MM)
3-1/4" DIAMETER END CAPNUT (10MM)
3-1/4" DIAMETER END CAP -
411-400211 NUT (5MM)
3-1/4" DIAMETER END CAPNUT (5MM)
3-1/4" DIAMETER END CAP -
150-863007A1 STARTER MOTOR
2-7/8" DIAMETER END CAPSTARTER MOTOR
2-7/8" DIAMETER END CAP -
210-8053432 SCREW
2-7/8" DIAMETER END CAPSCREW
2-7/8" DIAMETER END CAP -
311-806949 NUT (8MM)
2-7/8" DIAMETER END CAPNUT (8MM)
2-7/8" DIAMETER END CAP -
411-400211 NUT (5MM)
2-7/8" DIAMETER END CAPNUT (5MM)
2-7/8" DIAMETER END CAP -
585-79695T INSULATORINSULATOR
-
6817119A4 ALTERNATOR
PRESTOLITE #8EM2003KA & MANDO #AR-150ALTERNATOR
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
712-96457 PHENOLIC WASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150PHENOLIC WASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
813-26996 LOCKWASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150LOCKWASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
911-79989 NUT (10-24)
PRESTOLITE #8EM2003KA & MANDO #AR-150NUT (10-24)
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
1013-21272 LOCKWASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150LOCKWASHER
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
1111-64015 NUT (1/4-20)
PRESTOLITE #8EM2003KA & MANDO #AR-150NUT (1/4-20)
PRESTOLITE #8EM2003KA & MANDO #AR-150 -
6817119A4 ALTERNATOR
MANDO #AC-155603ALTERNATOR
MANDO #AC-155603 -
712-96457 PHENOLIC WASHER
MANDO #AC-155603PHENOLIC WASHER
MANDO #AC-155603 -
813-26996 LOCKWASHER
MANDO #AC-155603LOCKWASHER
MANDO #AC-155603 -
911-79989 NUT (10-24)
MANDO #AC-155603NUT (10-24)
MANDO #AC-155603 -
1013-26992 LOCKWASHER
MANDO #AC-155603LOCKWASHER
MANDO #AC-155603 -
1111-94330 NUT (1/4-20)
MANDO #AC-155603NUT (1/4-20)
MANDO #AC-155603 -
1210-26487 SCREWSCREW
-
1313-35048 LOCKWASHERLOCKWASHER
-
1412-34714 WASHERWASHER
-
1510-74824 SCREW (1-1/4")SCREW (1-1/4")
-
1613-39107 LOCKWASHERLOCKWASHER
-
1712-26168 WASHERWASHER
-
1823-52095 SPACERSPACER
-
195790811 TUBINGTUBING
-
2085013T BRACEBRACE
-
2193175T BRACKETBRACKET
-
2210-37612 SCREW (1-1/4")SCREW (1-1/4")
-
2313-35048 LOCKWASHERLOCKWASHER
-
2410-48308 SCREW (3-3/4")SCREW (3-3/4")
-
2512-20553 WASHERWASHER
-
2623-33186 BUSHINGBUSHING
-
2711-23161 NUTNUT
