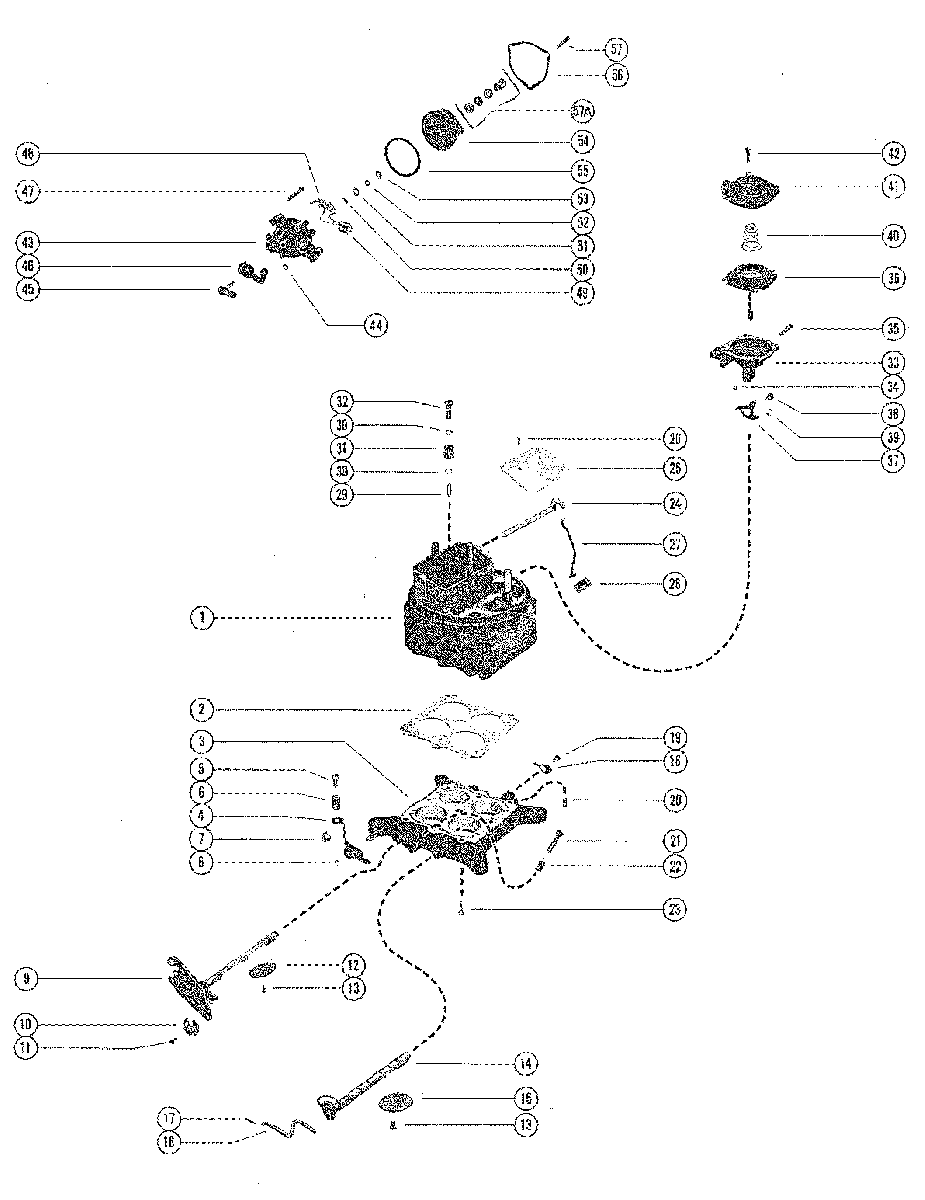

CARBURETOR ASSEMBLY для Mercruiser - 225 (4 BBL.) FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
11356-804628R02 CARBURETOR ASSEMBLY, COMPLETE
SEE NOTECARBURETOR ASSEMBLY, COMPLETE
SEE NOTE -
290-8M0143356 GASKET, THROTTLE BODYGASKET, THROTTLE BODY
-
31396-4086 THROTTLE BODY ASSEMBLY,THROTTLE BODY ASSEMBLY,
-
41396-4155 LEVER, FUEL PUMP ACTUTIONLEVER, FUEL PUMP ACTUTION
-
51396-4133 SCREW, PUMP LEVER ADJUSTINGSCREW, PUMP LEVER ADJUSTING
-
61396-4105 SPRING, PUMP LEVER ADJUSTING SCREWSPRING, PUMP LEVER ADJUSTING SCREW
-
71396-4089 NUT, PUMP LEVER ADJUSTING SCREWNUT, PUMP LEVER ADJUSTING SCREW
-
890-8M0143356 RETAINER, PUMP LEVERRETAINER, PUMP LEVER
-
9N.S.S. ROD, PRIMARY (NOT SOLD SEPARATELY)ROD, PRIMARY (NOT SOLD SEPARATELY)
-
101396-4143 CAM, FUEL PUMPCAM, FUEL PUMP
-
111396-4135 SCREW, PUMP CAM ATTACHINGSCREW, PUMP CAM ATTACHING
-
121396-4084 VALVE, PRIMARY THROTTLEVALVE, PRIMARY THROTTLE
-
1390-8M0143356 SCREW, THROTTLE VALVE ATTACHINGSCREW, THROTTLE VALVE ATTACHING
-
14N.S.S. ROD, SECONDARY (NOT SOLD SEPARATELY)ROD, SECONDARY (NOT SOLD SEPARATELY)
-
151396-4085 VALVE, SECONDARY THROTTLEVALVE, SECONDARY THROTTLE
-
161396-4146 ROD, SECONDARY CONNECTINGROD, SECONDARY CONNECTING
-
1790-8M0143356 COTTER PIN, CONNECTING RODCOTTER PIN, CONNECTING ROD
-
181396-4144 LEVER, SECONDARY STOPLEVER, SECONDARY STOP
-
191396-4131 SCREW, SECONDARY STOP LEVER ATTACHINGSCREW, SECONDARY STOP LEVER ATTACHING
-
201396-4127 SCREW, SECONDARY STOPSCREW, SECONDARY STOP
-
211396-4123 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
221396-4102 SPRING, THROTTLE STOP SCREWSPRING, THROTTLE STOP SCREW
-
231396-4128 SCREW, THROTTLE STOP SCREWSCREW, THROTTLE STOP SCREW
-
241396-4117 CHOKE SHAFT AND LEVER ASSEMBLYCHOKE SHAFT AND LEVER ASSEMBLY
-
251396-4116 VALVE, CHOKEVALVE, CHOKE
-
2690-8M0143356 SCREW, CHOKE VALVE TO CHOKE SHAFTSCREW, CHOKE VALVE TO CHOKE SHAFT
-
271396-4145 LINK, CHOKELINK, CHOKE
-
2890-8M0143356 SEAL, CHOKE LINKSEAL, CHOKE LINK
-
2990-8M0143356 VALVE, PUMP DISCHARGEVALVE, PUMP DISCHARGE
-
3090-8M0143356 GASKET, DISCHARGE NOZZLEGASKET, DISCHARGE NOZZLE
-
3190-8M0143356 NOZZLE, PUMP DISCHARGENOZZLE, PUMP DISCHARGE
-
321396-4138 SCREW, DISCHARGE NOZZLESCREW, DISCHARGE NOZZLE
-
331396-4156 HOUSING, SECONDARY DIAPHRAGMHOUSING, SECONDARY DIAPHRAGM
-
3490-8M0143356 GASKET, SECONDARY DIAPHRAGM HOUSINGGASKET, SECONDARY DIAPHRAGM HOUSING
-
351396-4129 SCREW, SECONDARY DIAPHRAGM HOUSING ATTACHINGSCREW, SECONDARY DIAPHRAGM HOUSING ATTACHING
-
3690-8M0143356 DIAPHRAGM ASSEMBLY, SECONDARYDIAPHRAGM ASSEMBLY, SECONDARY
-
371396-4154 LEVER, SECONDARY DIAPHRAGMLEVER, SECONDARY DIAPHRAGM
-
381396-4131 SCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVERSCREW, ADJUSTING - SECONDARY DIAPHRAGM LEVER
-
3990-8M0143356 RETAINER, SECONDARY DIAPHRAGM LEVERRETAINER, SECONDARY DIAPHRAGM LEVER
-
401396-4139 SPRING, RETURN - SECONDARY DIAPHRAGMSPRING, RETURN - SECONDARY DIAPHRAGM
-
411396-4094 COVER, SECONDARY DIAPHRAGM HOUSINGCOVER, SECONDARY DIAPHRAGM HOUSING
-
421396-4124 SCREW, SECONDARY DIAPHRAGM COVER ATTACHINGSCREW, SECONDARY DIAPHRAGM COVER ATTACHING
-
431396-4098 HOUSING ASSEMBLY, CHOKEHOUSING ASSEMBLY, CHOKE
-
4490-8M0143356 GASKET, CHOKE HOUSINGGASKET, CHOKE HOUSING
-
451396-4119 SHAFT ASSEMBLY, CHOKE HOUSINGSHAFT ASSEMBLY, CHOKE HOUSING
-
461396-4118 LEVER, PICK-UP - FAST IDLELEVER, PICK-UP - FAST IDLE
-
471396-4130 SCREW, CHOKE HOUSING ATTACHINGSCREW, CHOKE HOUSING ATTACHING
-
481396-4120 LEVER, CHOKE THERMOSTATLEVER, CHOKE THERMOSTAT
-
491396-4121 LINK AND PISTON ASSEMBLYLINK AND PISTON ASSEMBLY
-
5090-8M0143356 RETAINER, CHOKE LEVERRETAINER, CHOKE LEVER
-
511396-4142 SPACER, CHOKE LEVERSPACER, CHOKE LEVER
-
521396-4147 LOCKWASHER, CHOKE LEVERLOCKWASHER, CHOKE LEVER
-
531396-4141 NUT, CHOKE LEVERNUT, CHOKE LEVER
-
541396-4148 HOUSING ASSEMBLY, THERMOSTATHOUSING ASSEMBLY, THERMOSTAT
-
5590-8M0143356 GASKET, THERMOSTAT HOUSINGGASKET, THERMOSTAT HOUSING
-
561396-4149 CLAMP, THERMOSTAT HOUSINGCLAMP, THERMOSTAT HOUSING
-
571396-4122 SCREW, THERMOSTAT HOUSING ATTACHINGSCREW, THERMOSTAT HOUSING ATTACHING
-
57A1396-4647A1 FITTING, VENTILATING - THERMOSTAT HOUSINGFITTING, VENTILATING - THERMOSTAT HOUSING
-
-1356-804628R02 CARBURETOR ASSEMBLY, COMPLETE
SEE NOTECARBURETOR ASSEMBLY, COMPLETE
SEE NOTE -
581396-4087 TUBE, METERING BODY CONNECTINGTUBE, METERING BODY CONNECTING
-
5990-8M0143356 "O" RING, CONNECTING TUBE"O" RING, CONNECTING TUBE
-
601396-4101 FUEL BOWL ASSEMBLY, PRIMARYFUEL BOWL ASSEMBLY, PRIMARY
-
611396-4126 SCREW, PRIMARY FUEL BOWL ATTACHINGSCREW, PRIMARY FUEL BOWL ATTACHING
-
6290-8M0143356 GASKET, FUEL BOWL SCREWGASKET, FUEL BOWL SCREW
-
631396-5159 FITTING AND SCREEN, FUEL INLETFITTING AND SCREEN, FUEL INLET
-
6490-8M0143356 GASKET, FUEL INLET FITTINGGASKET, FUEL INLET FITTING
-
651396-4097 COVER, FUEL PUMPCOVER, FUEL PUMP
-
6690-8M0143356 DIAPHRAGM ASSEMBLY, PRIMARYDIAPHRAGM ASSEMBLY, PRIMARY
-
671396-4103 SPRING, DIAPHRAGM RETURN - PRIMARYSPRING, DIAPHRAGM RETURN - PRIMARY
-
681396-4124 SCREW, FUEL PUMP COVER ATTACHINGSCREW, FUEL PUMP COVER ATTACHING
-
691396-4088 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
7090-8M0143356 RETAINER, FLOATRETAINER, FLOAT
-
711396-4104 SPRING, FLOATSPRING, FLOAT
-
721396-4344 PLUG, CHECK - FUEL LEVELPLUG, CHECK - FUEL LEVEL
-
7390-8M0143356 GASKET, FUEL LEVEL CHECK PLUGGASKET, FUEL LEVEL CHECK PLUG
-
741396-4152 BAFFLE, FUEL BOWL - PRIMARYBAFFLE, FUEL BOWL - PRIMARY
-
7590-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
761396-4151 BAFFLE, PRIMARY METERING BODYBAFFLE, PRIMARY METERING BODY
-
771396-4100 METERING BODY, PRIMARYMETERING BODY, PRIMARY
-
781396-4093 MAIN JETMAIN JET
-
7990-8M0143356 GASKET, PRIMARY METERING BODYGASKET, PRIMARY METERING BODY
-
8090-8M0143356 POWER VALVE ASSEMLBYPOWER VALVE ASSEMLBY
-
8190-8M0143356 GASKET, POWER VALVEGASKET, POWER VALVE
-
8290-8M0143356 NEEDLE, IDLE ADJUSTINGNEEDLE, IDLE ADJUSTING
-
8390-8M0143356 SEAL, IDLE ADJUSTING NEEDLESEAL, IDLE ADJUSTING NEEDLE
-
841396-4099 FUEL BOWL ASSEMBLY, SECONDARYFUEL BOWL ASSEMBLY, SECONDARY
-
851396-4134 SCREW, SECONDARY FUEL BOWL ATTACHINGSCREW, SECONDARY FUEL BOWL ATTACHING
-
861396-4096 METERING BODY, SECONDARYMETERING BODY, SECONDARY
-
871396-4136 SCREW, SECONDARY METERING BODY ATTACHINGSCREW, SECONDARY METERING BODY ATTACHING
-
8890-8M0143356 GASKET, SECONDARY METERING BODYGASKET, SECONDARY METERING BODY
-
891396-4095 PLATE, SECONDARY METERING BODYPLATE, SECONDARY METERING BODY
-
9090-8M0143356 GASKET, SECONDARY METERING BODY PLATEGASKET, SECONDARY METERING BODY PLATE
-
911396-4137 SCREW, LOCKING - FUEL VALVE SEATSCREW, LOCKING - FUEL VALVE SEAT
-
9290-8M0143356 GASKET, VALVE SEAT LOCKING SCREWGASKET, VALVE SEAT LOCKING SCREW
-
931396-4140 NUT, ADJUSTING - FUEL VALVENUT, ADJUSTING - FUEL VALVE
-
9490-8M0143356 GASKET, VALVE SEAT ADJUSTING NUTGASKET, VALVE SEAT ADJUSTING NUT
-
9590-8M0143356 FUEL VALVE ASSEMBLYFUEL VALVE ASSEMBLY
-
9690-8M0143356 "O" RING, FUEL VALVE"O" RING, FUEL VALVE
-
971396-4153 BAFFLE, FUEL BOWL - SECONDARYBAFFLE, FUEL BOWL - SECONDARY
-
971396-5237 GASKET KITGASKET KIT
-
971396-5238 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
