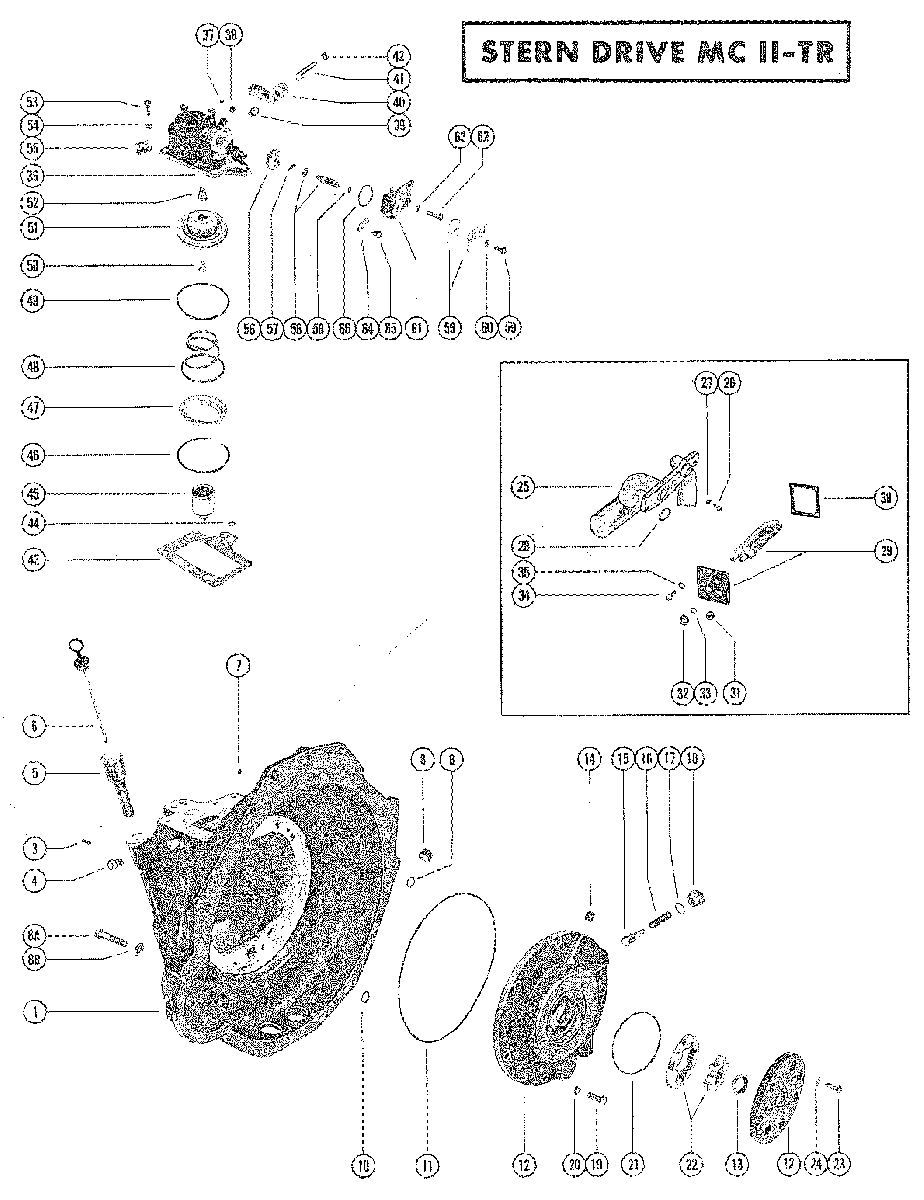

TRANSMISSION ASSEMBLY (STERN DRIVE MC II-TR) для Mercruiser - 225 (4 BBL.) FORD 302 V-8 1973-1974 3385721 THRU 4166999
-
№АртикулНазвание
-
-62767A9 TRANSMISSION ASSEMBLY, COMPLETE----------
B-62767A7 TRANSMISSION ASSEMBLY INCLUDES ALL PARTS FROM REFERENCE #1 THRU #109 AS LISTED ON PAGES 52 AND 53.TRANSMISSION ASSEMBLY, COMPLETE----------
B-62767A7 TRANSMISSION ASSEMBLY INCLUDES ALL PARTS FROM REFERENCE #1 THRU #109 AS LISTED ON PAGES 52 AND 53. -
162767A4 HOUSING ASSEMBLY, TRANSMISSIONHOUSING ASSEMBLY, TRANSMISSION
-
390-8M0143356 PIN, SPRING - TRANSMISSION HOUSINGPIN, SPRING - TRANSMISSION HOUSING
-
422-47902 VENT, TRANSMISSION HOUSINGVENT, TRANSMISSION HOUSING
-
564090A1 TUBE ASSEMBLY, DIPSTICKTUBE ASSEMBLY, DIPSTICK
-
663037 DIPSTICK, OIL LEVEL GAUGEDIPSTICK, OIL LEVEL GAUGE
-
790-8M0143356 BALL, TRANSMISSION HOUSING (1/4")BALL, TRANSMISSION HOUSING (1/4")
-
822-36373 PLUG, PIPE - TRANSMISSION HOUSINGPLUG, PIPE - TRANSMISSION HOUSING
-
8A10-47462 SCREW, TRANSMISSION HOUSING TO ENGIEN (1 1/4")
NOT INCLUDED WITH TRANSMISSION ASSEMBLYSCREW, TRANSMISSION HOUSING TO ENGIEN (1 1/4")
NOT INCLUDED WITH TRANSMISSION ASSEMBLY -
8B13-32993 LOCKWASHER, TRANSMISSION HOUSING SCREW
NOT INCLUDED WITH TRANSMISSION ASSEMBLYLOCKWASHER, TRANSMISSION HOUSING SCREW
NOT INCLUDED WITH TRANSMISSION ASSEMBLY -
990-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (1/2" O.D.)"O" RING, PUMP TO TRANSMISSION HOUSING (1/2" O.D.)
-
1090-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (1" O.D.)"O" RING, PUMP TO TRANSMISSION HOUSING (1" O.D.)
-
1190-8M0143356 "O" RING, PUMP TO TRANSMISSION HOUSING (9" O.D.)"O" RING, PUMP TO TRANSMISSION HOUSING (9" O.D.)
-
1287814A2 PUMP ASSEMBLYPUMP ASSEMBLY
-
1390-8M0143356 SEAL, PUMP COVERSEAL, PUMP COVER
-
1422-73379 PLUG, PUMPPLUG, PUMP
-
1562722 PISTON, RELIEF VALVEPISTON, RELIEF VALVE
-
1624-62790 SPRING, RELIEF VALVE PISTONSPRING, RELIEF VALVE PISTON
-
1790-8M0143356 "O" RING, PUMP PLUG (3/4" O.D.)"O" RING, PUMP PLUG (3/4" O.D.)
-
1819-62753 PLUG, PUMPPLUG, PUMP
-
1910-35386 SCREW, PUMP TO TRANSMISSION HOUSING (1")SCREW, PUMP TO TRANSMISSION HOUSING (1")
-
1910-31984 SCREW, PUMP TO TRANSMISSION HOUSING (1 3/8")SCREW, PUMP TO TRANSMISSION HOUSING (1 3/8")
-
2090-8M0143356 WASHER, SEALING - PUMP SCREWWASHER, SEALING - PUMP SCREW
-
2190-8M0143356 "O" RING, PUMP (3 7/16" O.D.)"O" RING, PUMP (3 7/16" O.D.)
-
2287814A2 PUMP, GEROTORPUMP, GEROTOR
-
2310-60300 SCREW, PUMP ATTACHING (3/4")SCREW, PUMP ATTACHING (3/4")
-
2413-26992 LOCKWASHER, PUMP SCREWLOCKWASHER, PUMP SCREW
-
2563127A1 FLANGE ASSEMBLY, OIL COOLERFLANGE ASSEMBLY, OIL COOLER
-
2610-66137 SCREW, FLANGE TO TRANSMISSION HOUSING (1/2")SCREW, FLANGE TO TRANSMISSION HOUSING (1/2")
-
2713-26992 LOCKWASHER, FLANGE SCREWLOCKWASHER, FLANGE SCREW
-
2890-8M0143356 "O" RING, FLANGE TO TRANSMISSION HOUSING (1" O.D.)"O" RING, FLANGE TO TRANSMISSION HOUSING (1" O.D.)
-
2966515A2 COVER ASSEMBLY, OIL COOLERCOVER ASSEMBLY, OIL COOLER
-
3027-62724 GASKET, OIL COOLER COVERGASKET, OIL COOLER COVER
-
3122-36373 PLUG, PIPE - COVERPLUG, PIPE - COVER
-
3211-21612 NUT, JAM - OIL COOLERNUT, JAM - OIL COOLER
-
3390-8M0143356 "O" RING, OIL COOLER JAMNUT (9/16" O.D.)"O" RING, OIL COOLER JAMNUT (9/16" O.D.)
-
3410-60300 SCREW, COVER TO TRANSMISSION HOUSING (3/4")SCREW, COVER TO TRANSMISSION HOUSING (3/4")
-
3513-26992 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
3662740A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
3790-8M0143356 BALL, CONTROL VALVE (1/4")BALL, CONTROL VALVE (1/4")
-
3822-390721 PLUG, CONTROL VALVEPLUG, CONTROL VALVE
-
3923-47797 BUSHING, REVERSE CLUTCH LEVERBUSHING, REVERSE CLUTCH LEVER
-
4062735A1 LEVER, REVERSE CLUTCHLEVER, REVERSE CLUTCH
-
4117-62730 PIN, LEVER TO CONTROL VALVEPIN, LEVER TO CONTROL VALVE
-
4290-8M0143356 PLUG, EXPANSION - CONTROL VALVE (9/16")PLUG, EXPANSION - CONTROL VALVE (9/16")
-
4390-8M0143356 GASKET, CONTROL VALVEGASKET, CONTROL VALVE
-
4490-8M0143356 "O" RING, CONTROL VALVE (9/16" O.D.)"O" RING, CONTROL VALVE (9/16" O.D.)
-
4690-8M0143356 SNAP RINGSNAP RING
-
4762665 RETAINER, SPRINGRETAINER, SPRING
-
4824-62677 SPRING, SERVO PISTONSPRING, SERVO PISTON
-
4990-8M0143356 "O" RING, ACCUMULATOR PISTON"O" RING, ACCUMULATOR PISTON
-
5021-62669 CHECK VALVE (EARLY MODELS ONLY)CHECK VALVE (EARLY MODELS ONLY)
-
5166981A2 PISTON, SERVOPISTON, SERVO
-
5224-62678 SPRING, SERVO ACCUMULATORSPRING, SERVO ACCUMULATOR
-
5310-35386 SCREW, CONTROL VALVE TO TRANSMISSION HOUSING (1")SCREW, CONTROL VALVE TO TRANSMISSION HOUSING (1")
-
5413-39107 LOCKWASHER, CONTROL VALVE SCREWLOCKWASHER, CONTROL VALVE SCREW
-
5554-47483 "J" CLAMP, CONTROL VALVE SCREW"J" CLAMP, CONTROL VALVE SCREW
-
5665080A1 SHAFT ASSEMBLY, CONTROL VALVESHAFT ASSEMBLY, CONTROL VALVE
-
5717-24800 ROLL PIN, CONTROL SHAFTROLL PIN, CONTROL SHAFT
-
5890-8M0143356 "O" RING, CONTROL SHAFT (7/16" O.D.)"O" RING, CONTROL SHAFT (7/16" O.D.)
-
5910-32417 SCREW, LINK AND CAM TO CONTROL SHAFT (5/8")SCREW, LINK AND CAM TO CONTROL SHAFT (5/8")
-
6013-26992 LOCKWASHER, LINK AND CAM SCREWLOCKWASHER, LINK AND CAM SCREW
-
6162747 CAP, CONTROL VALVECAP, CONTROL VALVE
-
6210-65027 SCREW, CAP TO CONTROL VALVE (1")SCREW, CAP TO CONTROL VALVE (1")
-
6313-26992 LOCKWASHER, CAP SCREWLOCKWASHER, CAP SCREW
-
6462742 CAM FOLLOWERCAM FOLLOWER
-
6510-55298 SCREW, CAM FOLLOWER TO CAP (1/2")SCREW, CAM FOLLOWER TO CAP (1/2")
-
6690-8M0143356 "O" RING, CONTROL VALVE CAP (1 9/16" O.D.)"O" RING, CONTROL VALVE CAP (1 9/16" O.D.)
