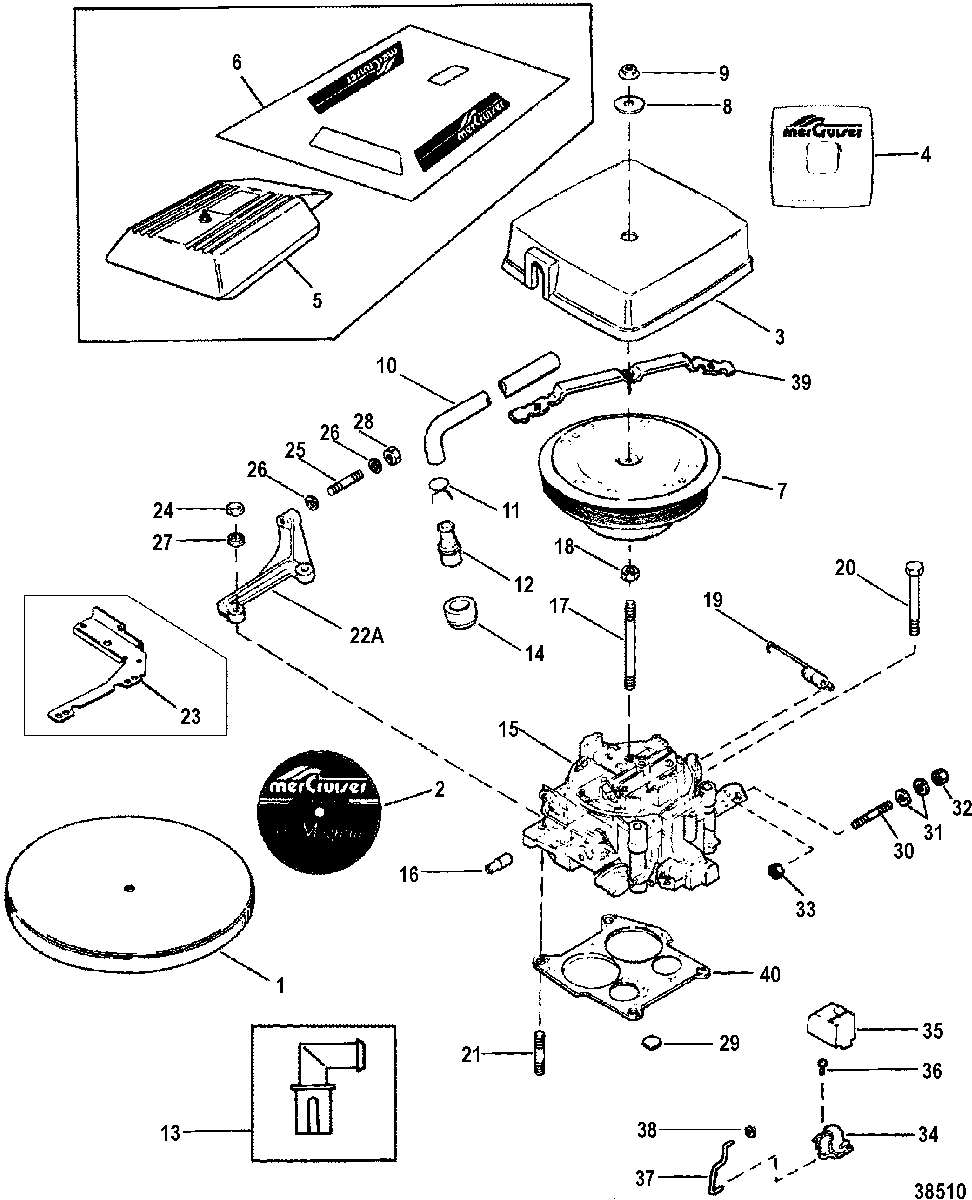

CARBURETOR/THROTTLE LINKAGE(ROCHESTER - 4 BBL) для Mercruiser - 230 (4 BBL.) GM 305 V-8 1987 0B525982 THRU 0B773739
-
№АртикулНазвание
-
114605T1 COVER, Carburetor
350 MAGNUMCOVER, Carburetor
350 MAGNUM -
237-1372313 DECAL
350 MAGNUMDECAL
350 MAGNUM -
315414A7 COVER
DESIGN ICOVER
DESIGN I -
437-1372312 DECAL
(260 ALPHA) DESIGN IDECAL
(260 ALPHA) DESIGN I -
437-1372311 DECAL
(230 ALPHA DESIGN IDECAL
(230 ALPHA DESIGN I -
437-1372333 DECAL
(5.0LX) DESIGN IDECAL
(5.0LX) DESIGN I -
437-1372334 DECAL
(5.7L) DESIGN IDECAL
(5.7L) DESIGN I -
437-1372344 DECAL
(5.7L BRAVO) DESIGN IDECAL
(5.7L BRAVO) DESIGN I -
518484A3 COVER
DESIGN IICOVER
DESIGN II -
637-812776A4 DECAL SET
(5.0LX) DESIGN IIDECAL SET
(5.0LX) DESIGN II -
637-812776A5 DECAL SET
(5.7L) DESIGN IIDECAL SET
(5.7L) DESIGN II -
637-812776A25 DECAL SET
(5.7L BRAVO) DESIGN IIDECAL SET
(5.7L BRAVO) DESIGN II -
637-812776A26 DECAL SET
(350 MAGNUM) DESIGN IIDECAL SET
(350 MAGNUM) DESIGN II -
7805298A1 FLAME ARRESTORFLAME ARRESTOR
-
812-86400 WASHERWASHER
-
911-826709109 NUT, (.250-28)NUT, (.250-28)
-
1032-8M0062669 HOSE (11-1/4 IN.)HOSE (11-1/4 IN.)
-
1032-8M0086022 HOSE, Breather
(CORRUGATED)HOSE, Breather
(CORRUGATED) -
1154-53101 CLAMPCLAMP
-
1247957 CONNECTORCONNECTOR
-
1397850T ELBOW, 90 DegreeELBOW, 90 Degree
-
1423-8M0071559 GROMMETGROMMET
-
151347-804624R02 CARBURETOR ASSEMBLY
(260-5.7L/5.7L BRAVO)CARBURETOR ASSEMBLY
(260-5.7L/5.7L BRAVO) -
151347-804623R02 CARBURETOR ASSEMBLY
(230-5.0LX)CARBURETOR ASSEMBLY
(230-5.0LX) -
151347-804624R02 CARBURETOR ASSEMBLY
(350 MAGNUM/5.7L BRAVO W/HI-RISE MANIFOLD)CARBURETOR ASSEMBLY
(350 MAGNUM/5.7L BRAVO W/HI-RISE MANIFOLD) -
1622-97282 CONNECTORCONNECTOR
-
1716-91842 STUD (4 IN.)STUD (4 IN.)
-
1716-805161 STUD (4-3/4 IN.)STUD (4-3/4 IN.)
-
1716-806019 STUD (4 IN.) Step StudSTUD (4 IN.) Step Stud
-
1811-8267139 NUTNUT
-
1924-897454 SPRINGSPRING
-
2010-74822 SCREW, (.312-18 x 3.500)SCREW, (.312-18 x 3.500)
-
2116-46857 STUD, (5/16 x 1-7/8) (1-7/8 IN.)STUD, (5/16 x 1-7/8) (1-7/8 IN.)
-
2116-8M0113177 STUD, (.312 x 1.500)STUD, (.312 x 1.500)
-
22805359A02 BRACKET
(CAST)BRACKET
(CAST) -
2312-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
2411-29250 NUT, (.312-24)NUT, (.312-24)
-
2516-38525 STUD (1-1/2 IN.)STUD (1-1/2 IN.)
-
2516-818192 STUD (1.69)STUD (1.69)
-
2612-24664 WASHER, (M4 x 20)WASHER, (M4 x 20)
-
27805359T BRACKET
(STAMPED)BRACKET
(STAMPED) -
2811-826709109 NUT, (.250-28)NUT, (.250-28)
-
2922-12524 PLUG, (.375)PLUG, (.375)
-
3016-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
3112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
3211-8267089 NUT, (.250-28)NUT, (.250-28)
-
3311-826709109 NUT, (.250-28)NUT, (.250-28)
-
3471464A01 CHOKECHOKE
-
3563922 COVERCOVER
-
3610-69235 SCREW, (.190-24 x .500)SCREW, (.190-24 x .500)
-
3777931 CHOKE RODCHOKE ROD
-
3853-818299 E RINGE RING
-
3772468 CHOKE ROD
HI-RISE INTAKE MANIFOLDCHOKE ROD
HI-RISE INTAKE MANIFOLD -
3854-89668 CLIP
HI-RISE INTAKE MANIFOLDCLIP
HI-RISE INTAKE MANIFOLD -
39805314 RETAINER, Breather HoseRETAINER, Breather Hose
-
4027-524572 GASKETGASKET
