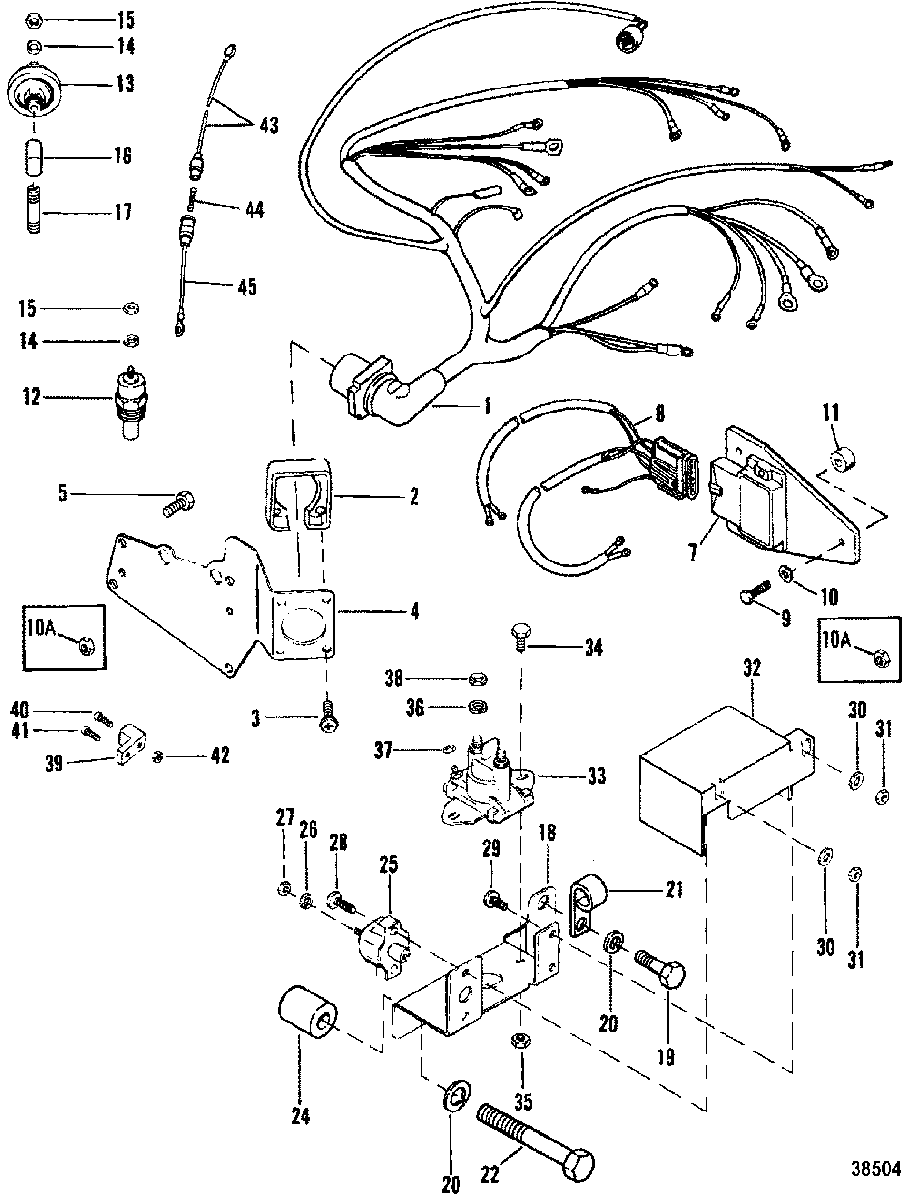

ELECTRICAL COMPONENTS(IGN. MODULE MOUNTED ON EXH. ELBOW) для Mercruiser - 230 (4 BBL.) GM 305 V-8 1987 0B525982 THRU 0B773739
-
№АртикулНазвание
-
184-98423A14 HARNESS ASSEMBLY
(200 - 5.0L)HARNESS ASSEMBLY
(200 - 5.0L) -
184-98423A13 HARNESS ASSEMBLY
(230/260/5.0LX/5.7L/350 MAGNUM)HARNESS ASSEMBLY
(230/260/5.0LX/5.7L/350 MAGNUM) -
184-98423A18 HARNESS ASSEMBLY
(5.0L BRAVO)HARNESS ASSEMBLY
(5.0L BRAVO) -
184-98423A15 HARNESS ASSEMBLY
(5.7L BRAVO)HARNESS ASSEMBLY
(5.7L BRAVO) -
226079A2 PLATE
METALPLATE
METAL -
310-34696 SCREW, (#8-32 x .750)
METALSCREW, (#8-32 x .750)
METAL -
226079A2 PLATE KIT, Wire Harness Mount
PLASTICPLATE KIT, Wire Harness Mount
PLASTIC -
310-15001 SCREW, (#8-16 x .875)
PLASTICSCREW, (#8-16 x .875)
PLASTIC -
498493A2 BRACKETBRACKET
-
510-65746 SCREW, (.250-20 x .750)
(CAST IRON EXHAUST MANIFOLD)SCREW, (.250-20 x .750)
(CAST IRON EXHAUST MANIFOLD) -
715899A1 IGNITION AMPLIFIER
(200/230 - 5.0L/LX)IGNITION AMPLIFIER
(200/230 - 5.0L/LX) -
715899A1 IGNITION MODULE ASSEMBLY
(260 - 5.7L ALPHA) SN# 0F273497 & BelowIGNITION MODULE ASSEMBLY
(260 - 5.7L ALPHA) SN# 0F273497 & Below -
7821125A1 IGNITION MODULE
(260 - 5.7L ALPHA) SN# 0F273498 & UpIGNITION MODULE
(260 - 5.7L ALPHA) SN# 0F273498 & Up -
715899A1 IGNITION MODULE ASSEMBLY
(5.7L BRAVO) SN# 0D617327 & BelowIGNITION MODULE ASSEMBLY
(5.7L BRAVO) SN# 0D617327 & Below -
7821125A1 IGNITION MODULE
(5.7L BRAVO) SN# 0D617328 & UpIGNITION MODULE
(5.7L BRAVO) SN# 0D617328 & Up -
715899A1 IGNITION MODULE ASSEMBLY
(350 MAGNUM) SN# 0D617327 & BelowIGNITION MODULE ASSEMBLY
(350 MAGNUM) SN# 0D617327 & Below -
7821125A1 IGNITION MODULE
(350 MAGNUM) SN# 0D617328 & UpIGNITION MODULE
(350 MAGNUM) SN# 0D617328 & Up -
884-15275A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
910-76630 SCREW, (.250-20 x 1.00)
CAST IRON EXHAUST MANIFOLDSCREW, (.250-20 x 1.00)
CAST IRON EXHAUST MANIFOLD -
1013-26992 LOCKWASHER, (.250) Stainless Steel
CAST IRON EXHAUST MANIFOLDLOCKWASHER, (.250) Stainless Steel
CAST IRON EXHAUST MANIFOLD -
10A11-64015 NUT, (.250-20)
(STAINLESS STEEL EXHAUST MANIFOLD)NUT, (.250-20)
(STAINLESS STEEL EXHAUST MANIFOLD) -
1123-92152T SPACER, (.27 x .75 x .38)SPACER, (.27 x .75 x .38)
-
1297258A1 SENDER ASSEMBLY (1/2-14)SENDER ASSEMBLY (1/2-14)
-
12806490T SENDER ASSEMBLY, Water Temperature (3/8-18)SENDER ASSEMBLY, Water Temperature (3/8-18)
-
1249734 SENDER ASSEMBLY, Water Temperature (DUAL)SENDER ASSEMBLY, Water Temperature (DUAL)
-
138M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
1337293T SENDER ASSEMBLY, Oil Pressure (DUAL)SENDER ASSEMBLY, Oil Pressure (DUAL)
-
1413-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1511-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1622-46932 ELBOWELBOW
-
1722-885153 NIPPLENIPPLE
-
1841170T BRACKETBRACKET
-
1910-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2013-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2154-78945 J CLAMP, Harness SupportJ CLAMP, Harness Support
-
2210-26486 SCREW, (.375-16 x 2.375)SCREW, (.375-16 x 2.375)
-
2423-15895 SPACER, (.38 x 1.00 x 1.44)SPACER, (.38 x 1.00 x 1.44)
-
2423-91034 SPACER, (.380 x 1.00 x .530)SPACER, (.380 x 1.00 x .530)
-
2588-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2711-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2810-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2910-45218 SCREW, (#10-32 x .380)SCREW, (#10-32 x .380)
-
3012-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
3111-46438 NUT, (#10-32)NUT, (#10-32)
-
3285-96819T INSULATORINSULATOR
-
3389-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
3410-96138 SCREW, (1/4-28 x 5/8) (5/8 IN.)SCREW, (1/4-28 x 5/8) (5/8 IN.)
-
3511-20088 NUTNUT
-
3613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3711-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3986-45915 TERMINAL BLOCK
5.7L BRAVOTERMINAL BLOCK
5.7L BRAVO -
4010-62568 SCREW, (#10-16 x .375)
5.7L BRAVOSCREW, (#10-16 x .375)
5.7L BRAVO -
4110-22028 SCREW, (#10-32 x .50)
5.7L BRAVOSCREW, (#10-32 x .50)
5.7L BRAVO -
4211-46438 NUT, (#10-32)
5.7L BRAVONUT, (#10-32)
5.7L BRAVO -
4384-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINECABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINE -
4488-79091 FUSE, 20 Ampere
BRAVO ENGINEFUSE, 20 Ampere
BRAVO ENGINE -
4584-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINECABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINE -
-84-11149A5 HARNESS ASSEMBLY, Adapter (USED TO ADAPT RING TERMINAL & BULLET CONNECTOR WIRING HARNESS)HARNESS ASSEMBLY, Adapter (USED TO ADAPT RING TERMINAL & BULLET CONNECTOR WIRING HARNESS)
