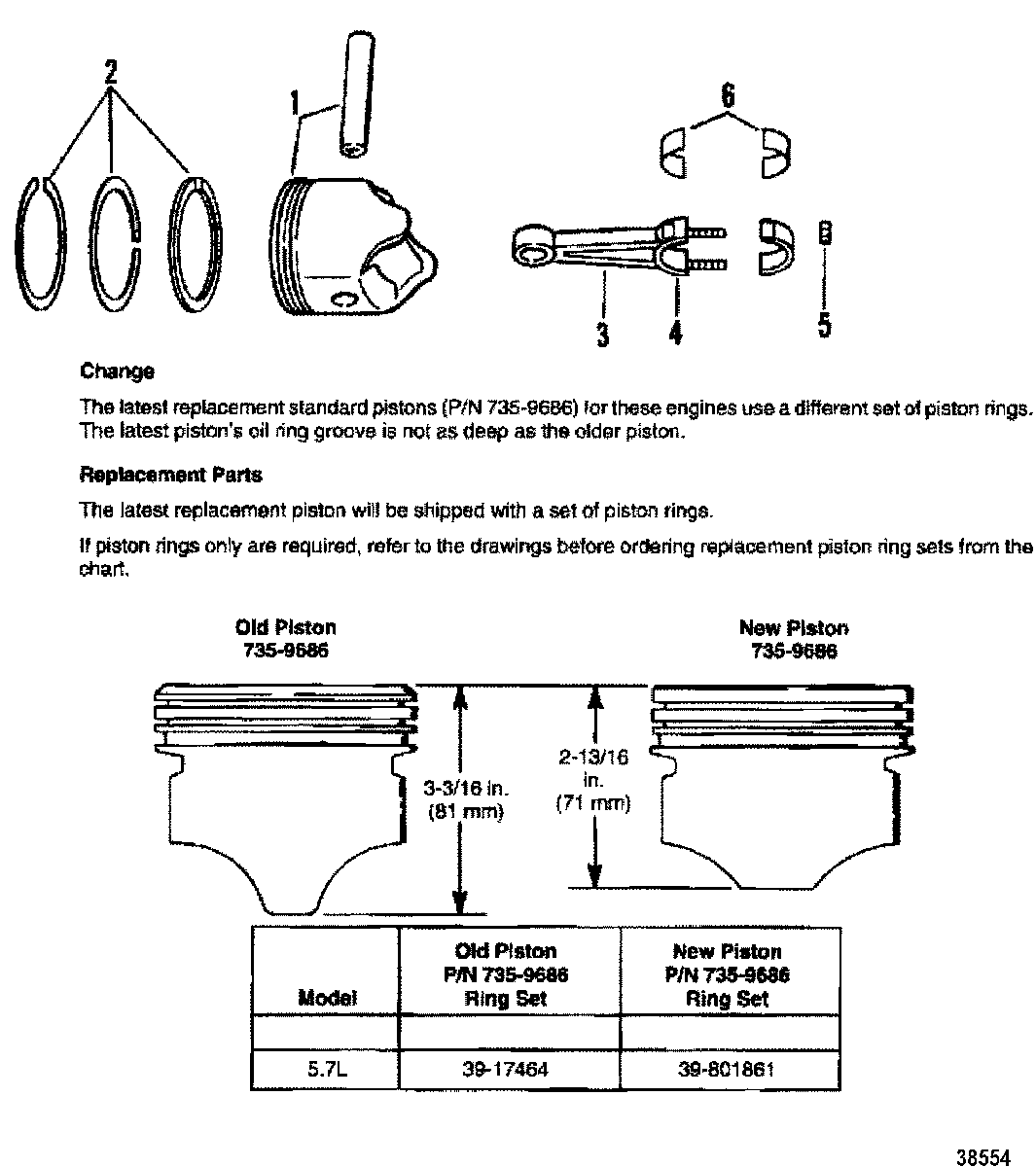

PISTONS AND CONNECTING RODS для Mercruiser - 230 (4 BBL.) GM 305 V-8 1987 0B525982 THRU 0B773739
-
№АртикулНазвание
-
1735-9716T1 PISTON ASSEMBLY
(STANDARD) 305 C.I.D.PISTON ASSEMBLY
(STANDARD) 305 C.I.D. -
1735-9715T1 PISTON ASSEMBLY
(.030 O.S.) 305 C.I.D.PISTON ASSEMBLY
(.030 O.S.) 305 C.I.D. -
239-75609 RING
(STANDARD) 305 C.I.D.RING
(STANDARD) 305 C.I.D. -
239-75981 RING
(.030 O.S.) 305 C.I.D.RING
(.030 O.S.) 305 C.I.D. -
239-802559 RING, Piston
(STANDARD) USE W/GM ENGINE 305 C.I.D. CODES 3ZC & SN# 3ZD AND ABOVERING, Piston
(STANDARD) USE W/GM ENGINE 305 C.I.D. CODES 3ZC & SN# 3ZD AND ABOVE -
239-808570 RING SET
(.030 O.S. USE W/GM ENGINE 305 C.I.D. CODES 3ZC & SN# 3ZD AND ABOVERING SET
(.030 O.S. USE W/GM ENGINE 305 C.I.D. CODES 3ZC & SN# 3ZD AND ABOVE -
1735-850097 PISTON ASSEMBLY
(STANDARD) 350 C.I.D. SEE ILLUSTRATIONPISTON ASSEMBLY
(STANDARD) 350 C.I.D. SEE ILLUSTRATION -
1735-850098 PISTON ASSEMBLY
(.030 O.S.) 350 C.I.D. SEE ILLUSTRATIONPISTON ASSEMBLY
(.030 O.S.) 350 C.I.D. SEE ILLUSTRATION -
239-17464 RING SET, Piston (Standard)
(STANDARD) 350 C.I.D. SEE ILLUSTRATIONRING SET, Piston (Standard)
(STANDARD) 350 C.I.D. SEE ILLUSTRATION -
239-17465 RING, Piston
(.030 O.S.) 350 C.I.D. SEE ILLUSTRATIONRING, Piston
(.030 O.S.) 350 C.I.D. SEE ILLUSTRATION -
3614-8164T CONNECTING RODCONNECTING ROD
-
410-85802 SCREW, (.375-24 x Special)SCREW, (.375-24 x Special)
-
511-37493 NUT, (.375-24)NUT, (.375-24)
-
623-85701 BEARING
(PAIR - STANDARD)BEARING
(PAIR - STANDARD) -
623-85702 BEARING
(PAIR - .001 USA)BEARING
(PAIR - .001 USA) -
623-85703 BEARING
(PAIR - .002 USA)BEARING
(PAIR - .002 USA) -
623-85704 BEARING
(PAIR - .010 USA)BEARING
(PAIR - .010 USA) -
623-85705 BEARING
(PAIR - .020 USA)BEARING
(PAIR - .020 USA)
