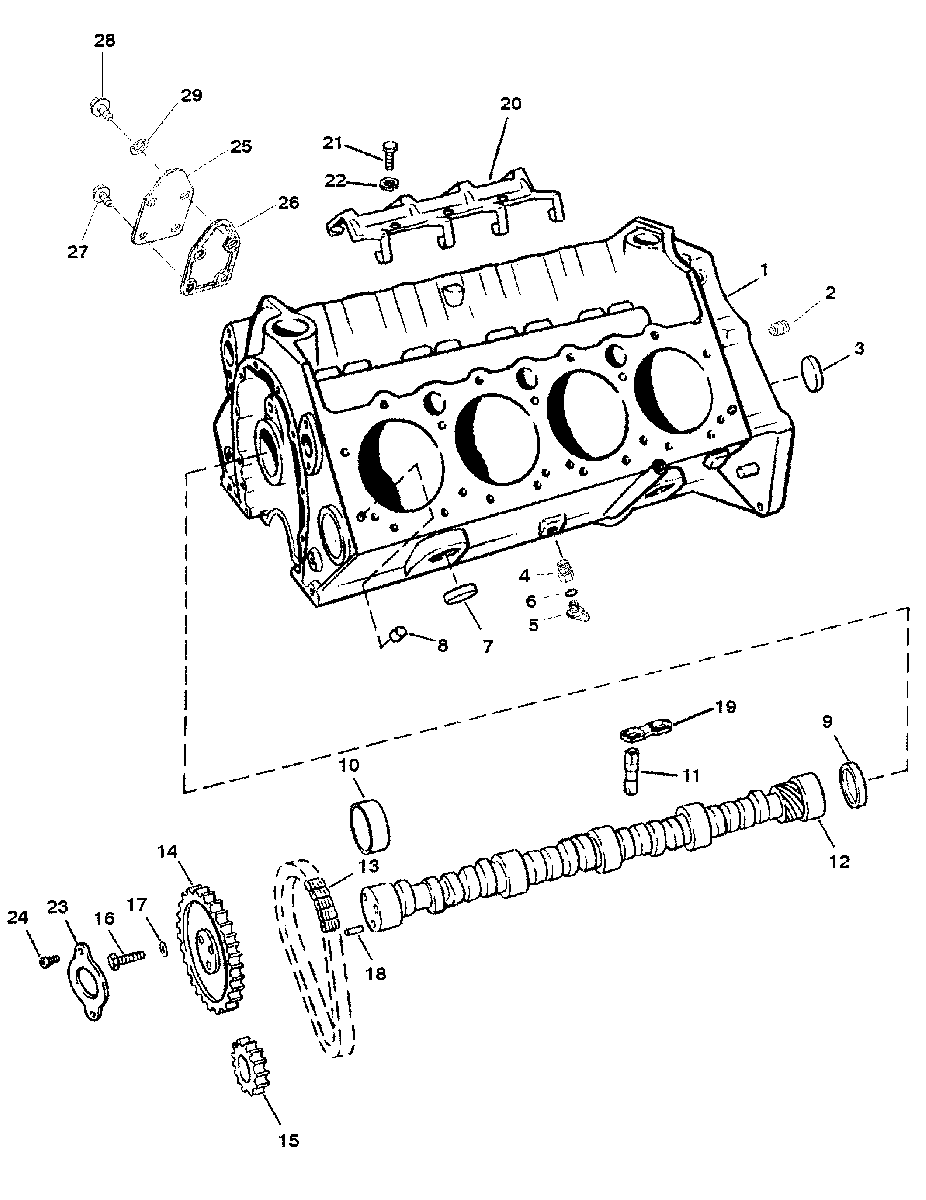

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1997 0K001501 AND UP
-
№АртикулНазвание
-
1NSS CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 807449A1)CYLINDER BLOCK ASSEMBLY
(ORDER LONG BLOCK 807449A1) -
222-32561 PLUG-PIPE (1/4 IN.)PLUG-PIPE (1/4 IN.)
-
319-816565 PLUG-EXPANSION (15/32 IN.)PLUG-EXPANSION (15/32 IN.)
-
422-860088 BUSHING-ADAPTORBUSHING-ADAPTOR
-
522-8M0119211 PLUG-DRAINPLUG-DRAIN
-
625-32509 QUAD RINGQUAD RING
-
719-34270 PLUG-EXPANSION (1-5/8 IN.)PLUG-EXPANSION (1-5/8 IN.)
-
817-35465 PIN-DOWEL (5/16 IN.)PIN-DOWEL (5/16 IN.)
-
922-72640 PLUG-EXPANSION (REAR CAMSHAFT)PLUG-EXPANSION (REAR CAMSHAFT)
-
1023-85674 BEARING SETBEARING SET
-
1117340T1 LIFTER-ROLLERLIFTER-ROLLER
-
12431-811658 CAMSHAFT-ROLLERCAMSHAFT-ROLLER
-
1317161T CHAIN-TIMINGCHAIN-TIMING
-
1443-8116591 SPROCKET-CAMSHAFTSPROCKET-CAMSHAFT
-
1543-17160 SPROCKET-CRANKSHAFTSPROCKET-CRANKSHAFT
-
1610-8M0043993 BOLT (5/16-18 X 3/4 IN.)BOLT (5/16-18 X 3/4 IN.)
-
1712-848136 WASHERWASHER
-
1817-843378 PINPIN
-
1917341T GUIDE-LIFTERGUIDE-LIFTER
-
20811662 RETAINER-LIFTER GUIDERETAINER-LIFTER GUIDE
-
2110-34500 SCREW (5/16-18 X 5/8 IN.)SCREW (5/16-18 X 5/8 IN.)
-
2212-811664 LOCKWASHER (5/16 IN.)LOCKWASHER (5/16 IN.)
-
23845941 RETAINER-CAMSHAFTRETAINER-CAMSHAFT
-
2410-845943 SCREW (1/4-20 X 1/2 IN.)SCREW (1/4-20 X 1/2 IN.)
-
25807695 PLATE-BLOCK-OFFPLATE-BLOCK-OFF
-
2627-34898 GASKETGASKET
-
2710-8M0040582 SCREW (1/4-20 X 9/16 IN.)SCREW (1/4-20 X 9/16 IN.)
-
2810-98261 SCREW (3/8-16 X 3/4 IN.)SCREW (3/8-16 X 3/4 IN.)
-
2913-35048 LOCKWASHER (3/8 IN.)LOCKWASHER (3/8 IN.)
-
-8M0088397 MARINE LONG BLOCK ENGINEMARINE LONG BLOCK ENGINE
-
-92-809825 SEALER-RED RTV (WHERE APPLICABLE)SEALER-RED RTV (WHERE APPLICABLE)
-
-92-34227Q02 PERFECT SEAL (WHERE APPLICABLE)PERFECT SEAL (WHERE APPLICABLE)
-
-27-806988A96 GASKET SET-ENGINE OVERHAULGASKET SET-ENGINE OVERHAUL
