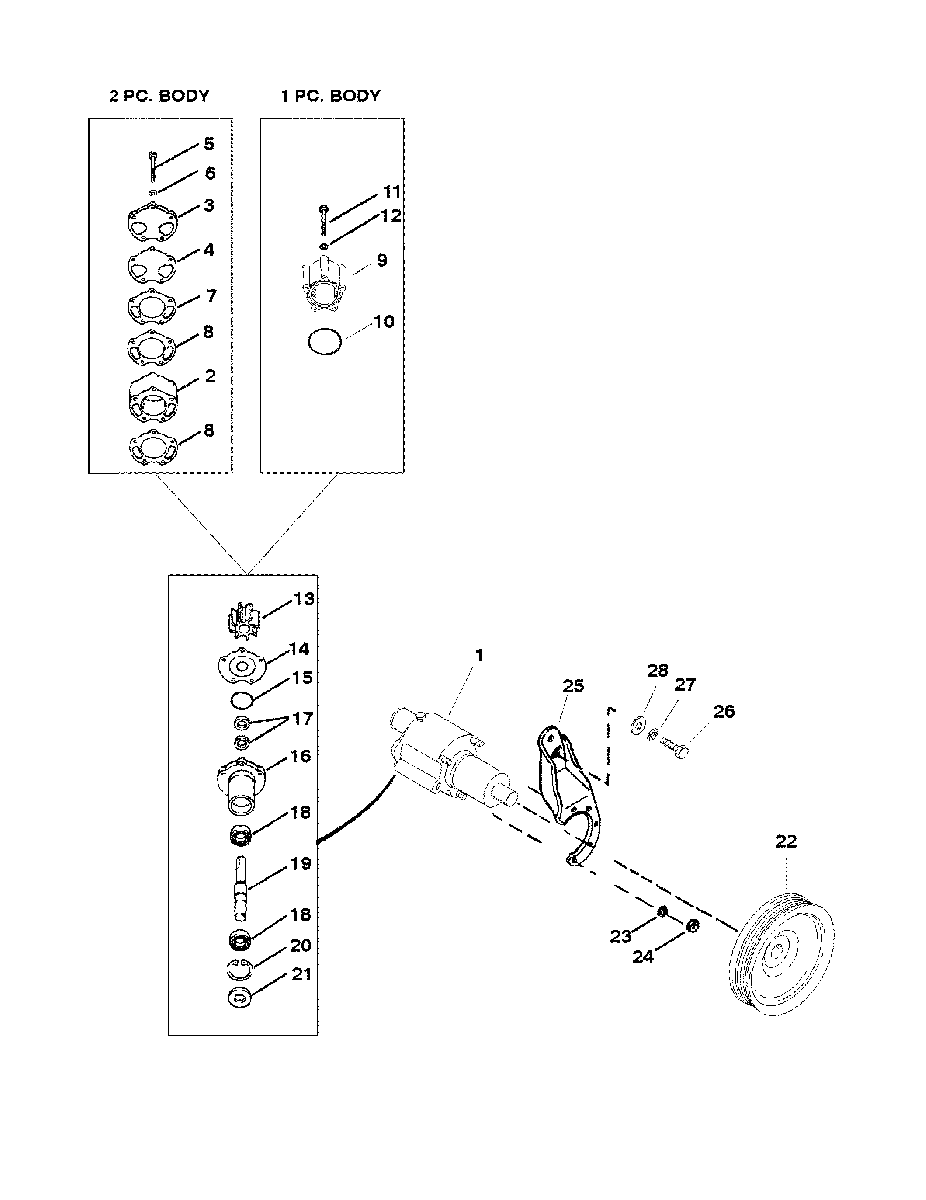

SEA WATER PUMP ASSEMBLY для Mercruiser - 350 MAG. BRAVO MPI(GEN+) GM 350 V-8 1997 0K001501 AND UP
-
№АртикулНазвание
-
146-807151A9 PUMP ASSEMBLY-SEAWATERPUMP ASSEMBLY-SEAWATER
-
246-72774A40 BODY
TWO PIECE BODYBODY
TWO PIECE BODY -
387631A4 COVER
TWO PIECE BODYCOVER
TWO PIECE BODY -
427-8052151 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
510-73275 SCREW (5/16-18 X 2-7/8 IN.)
TWO PIECE BODYSCREW (5/16-18 X 2-7/8 IN.)
TWO PIECE BODY -
510-99347 SCREW (5/16-18 X 3-3/4 IN.)
TWO PIECE BODYSCREW (5/16-18 X 3-3/4 IN.)
TWO PIECE BODY -
612-20084 WASHER
TWO PIECE BODYWASHER
TWO PIECE BODY -
794916 PLATE-WEAR (OUTER)
TWO PIECE BODYPLATE-WEAR (OUTER)
TWO PIECE BODY -
827-94914 GASKET
TWO PIECE BODYGASKET
TWO PIECE BODY -
946-807151A14 BODY-WATER PUMP
ONE PIECE BODYBODY-WATER PUMP
ONE PIECE BODY -
1025-33465 QUAD RING
ONE PIECE BODYQUAD RING
ONE PIECE BODY -
1110-807356 SCREW (5/16-18 X 2-5/8 IN.)
ONE PIECE BODYSCREW (5/16-18 X 2-5/8 IN.)
ONE PIECE BODY -
1110-74191 SCREW (5/16-18 X 3-1/4 IN.)
ONE PIECE BODYSCREW (5/16-18 X 3-1/4 IN.)
ONE PIECE BODY -
1212-814806 WASHER
ONE PIECE BODYWASHER
ONE PIECE BODY -
1347-59362T1 IMPELLERIMPELLER
-
1494576 PLATE-WEAR (INNER)PLATE-WEAR (INNER)
-
1525-94288 QUAD RINGQUAD RING
-
1646-94913A5 HOUSING ASSEMBLY-PUMPHOUSING ASSEMBLY-PUMP
-
1726-90562 SEAL-OILSEAL-OIL
-
1830-72961 BEARING-BALLBEARING-BALL
-
1959501A1 SHAFTSHAFT
-
2053-23720 RING-RETAINERRING-RETAINER
-
2126-72785 SEAL-OILSEAL-OIL
-
22861579 PULLEYPULLEY
-
2313-39107 LOCKWASHER (5/16 IN.)LOCKWASHER (5/16 IN.)
-
2411-21908 NUT (5/16-18)NUT (5/16-18)
-
258077491 BRACKETBRACKET
-
2610-34353 SCREW (3/8-16 X 1 IN.)SCREW (3/8-16 X 1 IN.)
-
2713-35048 LOCKWASHER (3/8 IN.)LOCKWASHER (3/8 IN.)
-
2812-34714 WASHERWASHER
