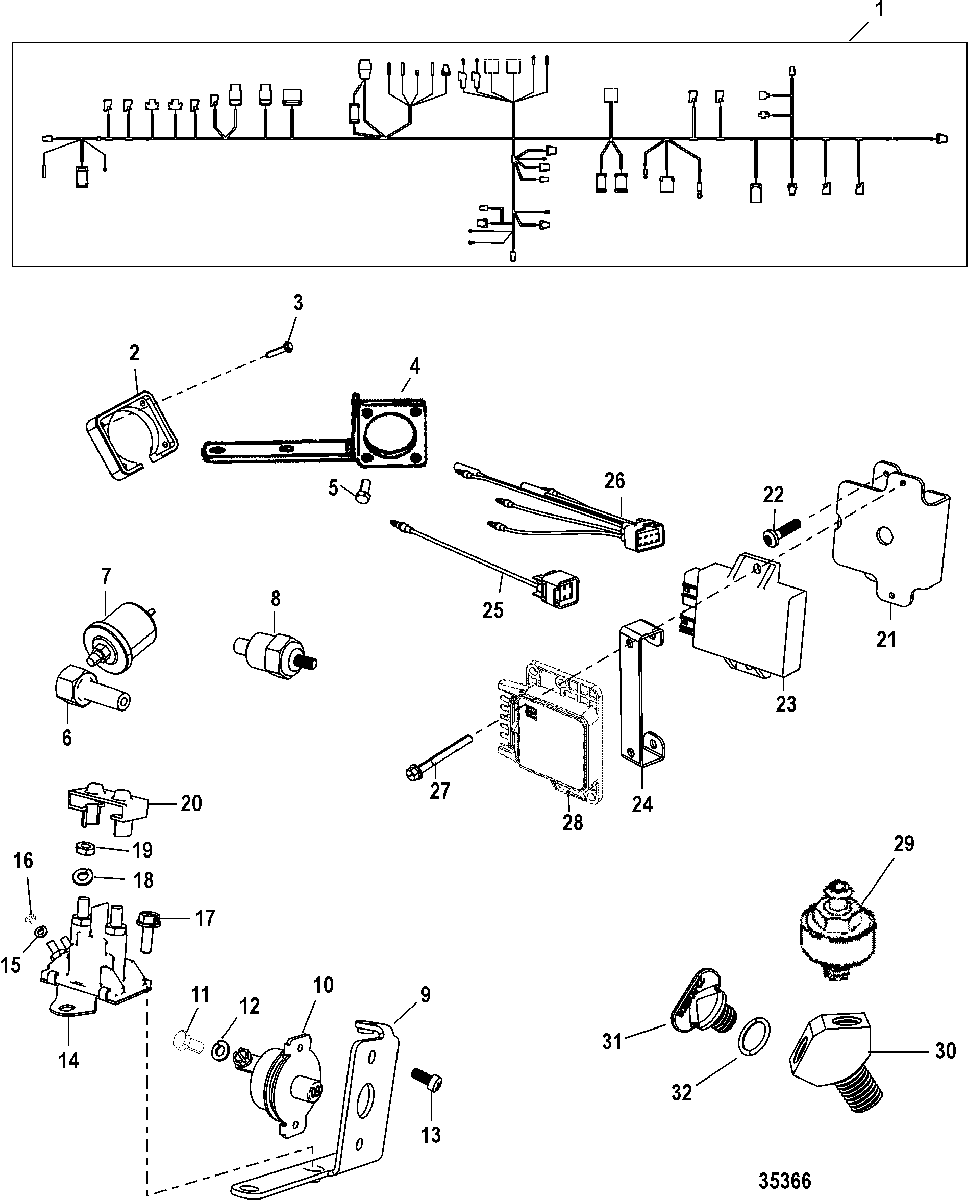

Electrical Components для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up
-
№АртикулНазвание
-
184-860216A2 HARNESS ASSEMBLY
357 Alpha/BravoHARNESS ASSEMBLY
357 Alpha/Bravo -
184-862575T03 HARNESS ASSEMBLY
383 Mag Bravo 4VHARNESS ASSEMBLY
383 Mag Bravo 4V -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805383T BRACKET, Harness MountingBRACKET, Harness Mounting
-
510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
622-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
78M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
8806490T SENDER, Water TemperatureSENDER, Water Temperature
-
9899719T01 BRACKETBRACKET
-
1088-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1110-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
1213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1310-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
1489-96158T SOLENOIDSOLENOID
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1710-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1813-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1911-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
2085-97861 INSULATORINSULATOR
-
21807763T BRACKETBRACKET
-
2210-861520 SCREW, (10-32 x .50)SCREW, (10-32 x .50)
-
23807645A01 CONVERSION KIT, Ignition Control Module
357/383 BravoCONVERSION KIT, Ignition Control Module
357/383 Bravo -
23807264A01 CONVERSION KIT, Ignition Control Module
357 AlphaCONVERSION KIT, Ignition Control Module
357 Alpha -
24861517 BRACKETBRACKET
-
2584-863869 HARNESS ASSEMBLY, 4 PinHARNESS ASSEMBLY, 4 Pin
-
2684-863870 HARNESS ASSEMBLY, 8 PinHARNESS ASSEMBLY, 8 Pin
-
278M2000330 SCREW, (8-32 x 1.5 Inches)SCREW, (8-32 x 1.5 Inches)
-
28806611T MODULE, Knock ControlMODULE, Knock Control
-
29806612T SENSOR, KnockSENSOR, Knock
-
3022-8067051 FITTING, DualFITTING, Dual
-
3122-8M0119211 PLUG ASSEMBLY, (.500-13) BluePLUG ASSEMBLY, (.500-13) Blue
-
3225-26802 O-RING, (.424 x .103)O-RING, (.424 x .103)
