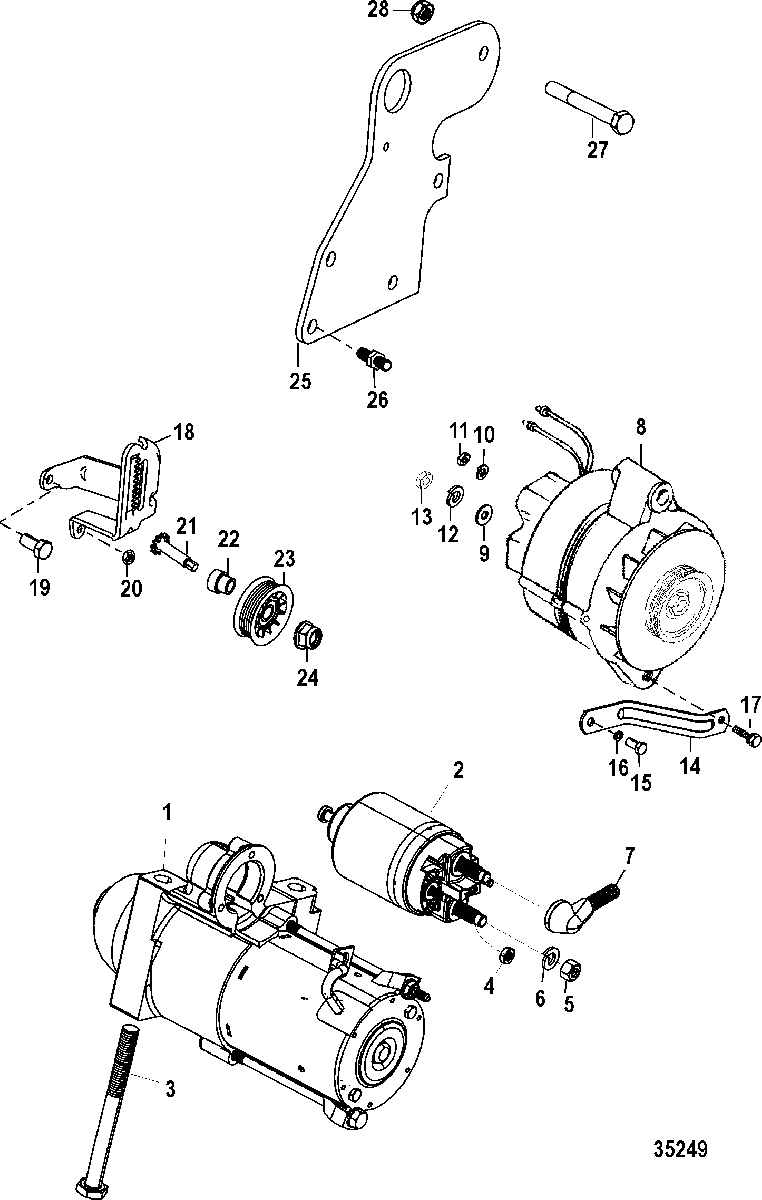

Starter Motor and Alternator, 357 Alpha/Bravo для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2809463A1 SOLENOID KITSOLENOID KIT
-
310-8053432 SCREW, (.375-16 x 4.33)SCREW, (.375-16 x 4.33)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
511-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
613-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
785-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
8807652T ALTERNATOR ASSEMBLYALTERNATOR ASSEMBLY
-
912-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
1013-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1111-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1213-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1311-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
14807750T BRACEBRACE
-
1510-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
1613-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1710-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
18807767T BRACKET, Idler AdjustmentBRACKET, Idler Adjustment
-
1910-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
2011-29250 NUT, (.312-24)NUT, (.312-24)
-
2143-8M0113182 PINION STUD, (.437-20) Stainless SteelPINION STUD, (.437-20) Stainless Steel
-
22865193 BUSHINGBUSHING
-
23807757T PULLEY ASSEMBLY, Idler - BlackPULLEY ASSEMBLY, Idler - Black
-
2411-859135 NUT, (.437-20) Brass/Nickel PlatedNUT, (.437-20) Brass/Nickel Plated
-
25860370T BRACKET, Alternator/Power SteeringBRACKET, Alternator/Power Steering
-
2616-860102 STUD, (.375-16 x 1.730)STUD, (.375-16 x 1.730)
-
2710-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
2811-23161 NUT, (.375-24)NUT, (.375-24)
