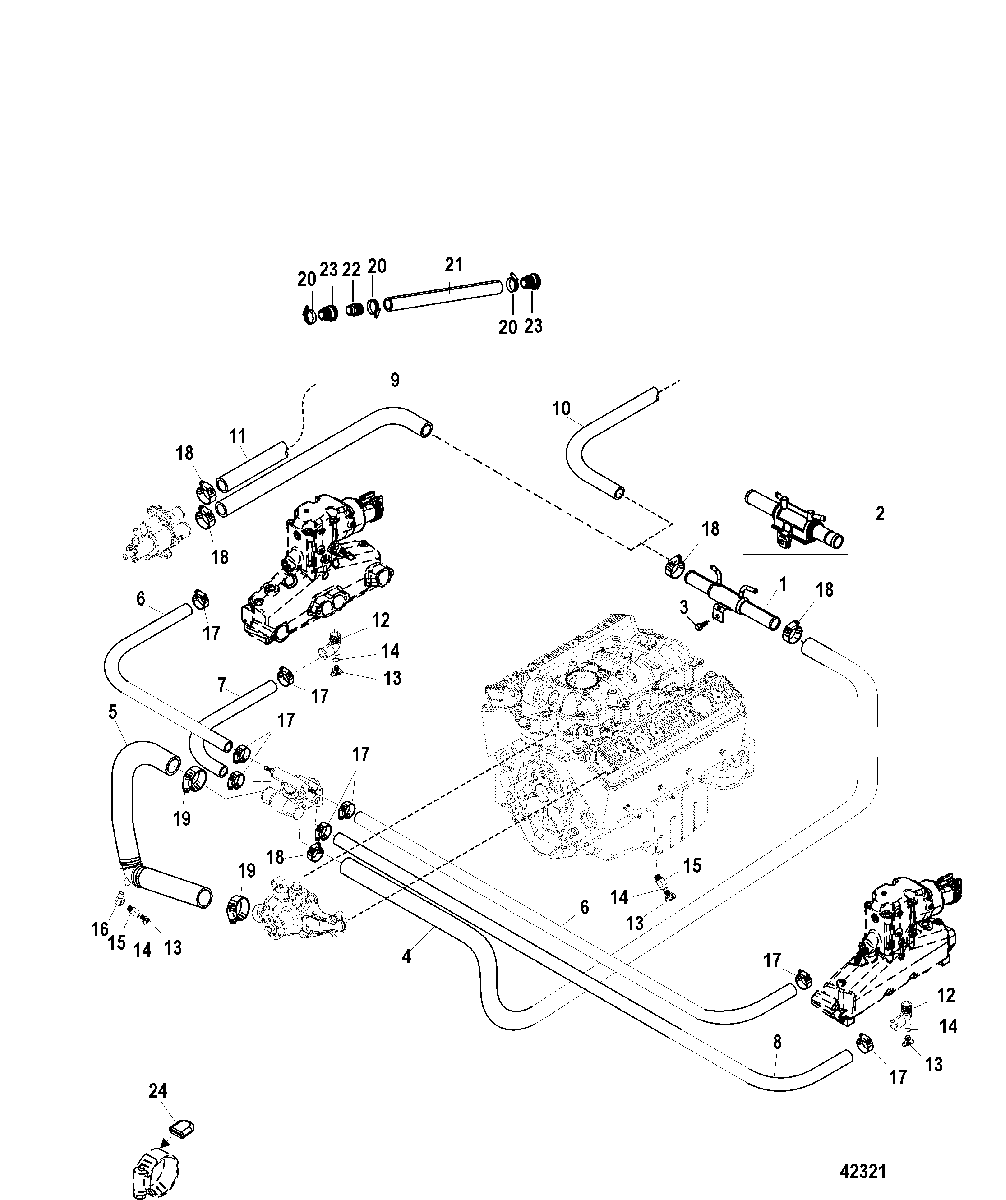

Standard Cooling System, 357 Alpha/Bravo для Mercruiser - 357 Mag Bravo 4V 1G400000 & Up
-
№АртикулНазвание
-
18M0125855 COOLER, Power Steering
(Metal)COOLER, Power Steering
(Metal) -
28M0125855 COOLER, Power Steering
(Composite)COOLER, Power Steering
(Composite) -
310-816585 SCREW, (.375-18 x .875)
Metal CoolerSCREW, (.375-18 x .875)
Metal Cooler -
310-8M2016106 SCREW, (.312 x 1.25)
Composite Cooler (Included with 861554T02)SCREW, (.312 x 1.25)
Composite Cooler (Included with 861554T02) -
432-865093 HOSE, Power Steering Cooler to Thermostat HousingHOSE, Power Steering Cooler to Thermostat Housing
-
532-861590A05 HOSE ASSEMBLY, Circulating Pump to Thermostat HousingHOSE ASSEMBLY, Circulating Pump to Thermostat Housing
-
632-864979 HOSE, Exhaust Elbow to Thermostat Housing
(Starboard)HOSE, Exhaust Elbow to Thermostat Housing
(Starboard) -
632-864977 HOSE, Exhaust Elbow to Thermostat Housing
(Port)HOSE, Exhaust Elbow to Thermostat Housing
(Port) -
732-807697 HOSE, Thermostat Housing to Starboard ManifoldHOSE, Thermostat Housing to Starboard Manifold
-
832-862139 HOSE, Thermostat Housing to Port Exhaust ManifoldHOSE, Thermostat Housing to Port Exhaust Manifold
-
932-8080441 HOSE, Molded, Sea Water Pump To Power Stering Cooler
BravoHOSE, Molded, Sea Water Pump To Power Stering Cooler
Bravo -
1032-807661 HOSE, Transom Assembly to Power Steering Cooler
AlphaHOSE, Transom Assembly to Power Steering Cooler
Alpha -
1132-8M0062666 HOSE, (96.00 Inches Bulk), Transom Water Pick Up To Sea Water Pump (36 IN.)HOSE, (96.00 Inches Bulk), Transom Water Pick Up To Sea Water Pump (36 IN.)
-
1222-862210A01 ELBOW KIT, DrainELBOW KIT, Drain
-
1322-8M0119211 PLUG KIT, (.500-13) Royal BluePLUG KIT, (.500-13) Royal Blue
-
1425-62706 O-RING, (.426 x .070)O-RING, (.426 x .070)
-
1522-860088 BUSHINGBUSHING
-
1622-46982 FITTING, (90 Degree)FITTING, (90 Degree)
-
1754-815504216 CLAMP, Worm Gear (1.56 Diameter), HoseCLAMP, Worm Gear (1.56 Diameter), Hose
-
1854-815504222 CLAMP, Worm Gear (1.98 DIameter), HoseCLAMP, Worm Gear (1.98 DIameter), Hose
-
1954-815504232 CLAMP, Worm Gear (2.50 Diameter), HoseCLAMP, Worm Gear (2.50 Diameter), Hose
-
2054-815504220 CLAMP, Worm GearCLAMP, Worm Gear
-
2132-8M0062653 HOSE, (4.00 Inches)HOSE, (4.00 Inches)
-
2222-865362 QUICK CONNECTQUICK CONNECT
-
2322-865324 QUICK CONNECTQUICK CONNECT
-
2419-8M0074364 COVER, Hose Clamp EndCOVER, Hose Clamp End
