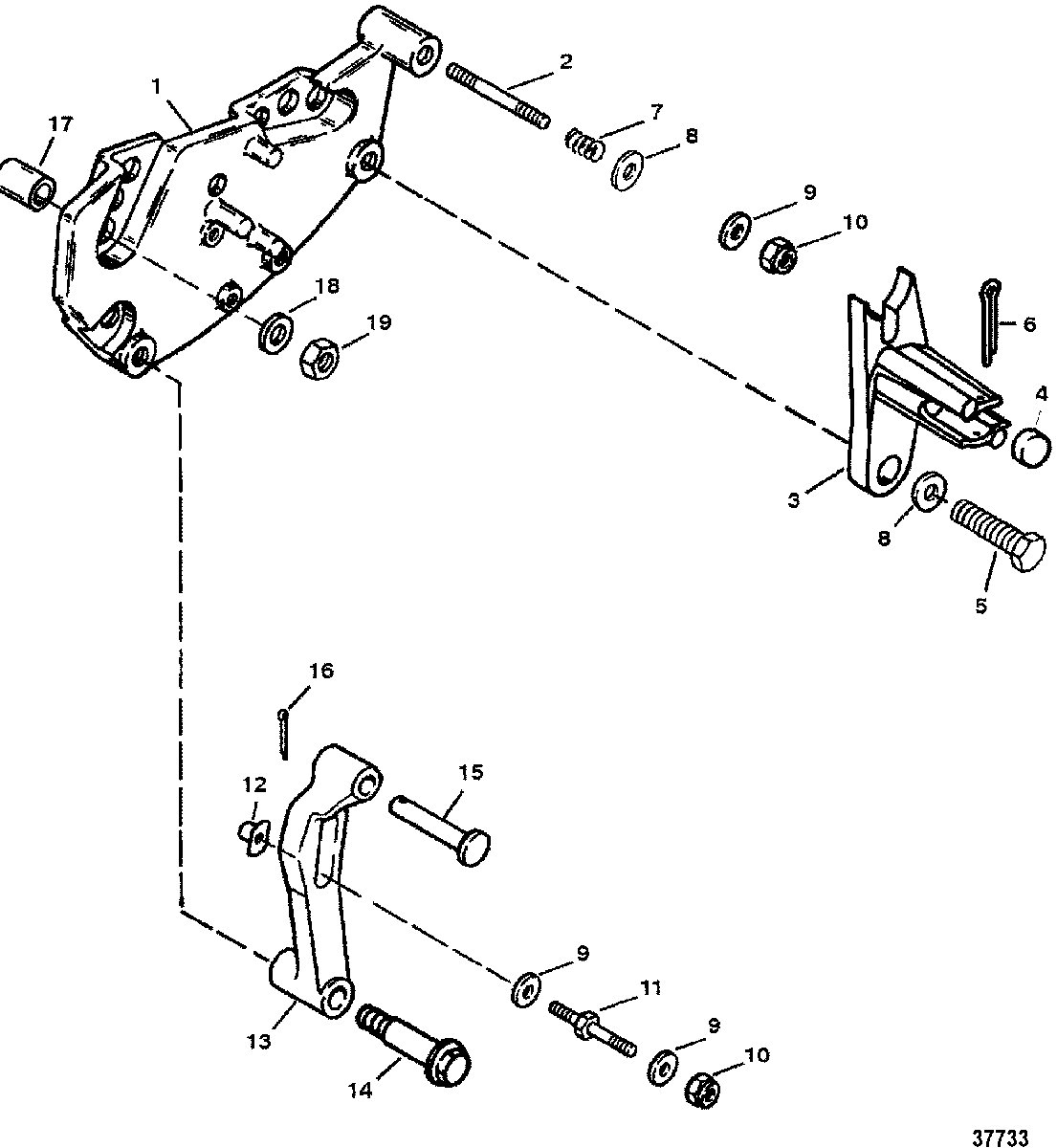

SHIFT BRACKET(BRAVO ENGINES) для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1996 0F601000 THRU 0K001526
-
№АртикулНазвание
-
1807962A15 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
216-865154A02 STUD, (.250-20/.250-28 x 2.120)STUD, (.250-20/.250-28 x 2.120)
-
3865434A02 RETAINERRETAINER
-
423-98828 SPACERSPACER
-
510-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
618-328571 COTTER PINCOTTER PIN
-
724-98880 SPRINGSPRING
-
812-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
912-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1011-8267119 NUT, (.250-28)NUT, (.250-28)
-
1116-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1211-63341 TEE NUTTEE NUT
-
13863911A12 LEVERLEVER
-
1410-865148 SCREW, (.312-18 x 1.843), ShoulderSCREW, (.312-18 x 1.843), Shoulder
-
1517-68402 PIN, (.250 x 1.13)PIN, (.250 x 1.13)
-
1618-210711 COTTER PINCOTTER PIN
-
1723-806981 SPACERSPACER
-
1812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1911-64015 NUT, (.250-20)NUT, (.250-20)
-
146-72774A32 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-72774A40 BODY ASSEMBLY, Sea Water - CompleteBODY ASSEMBLY, Sea Water - Complete
-
387631A4 COVER KITCOVER KIT
-
410-73275 SCREW, (.312-18 x 2.88)SCREW, (.312-18 x 2.88)
-
410-52743 SCREW, (.312-18 x 3.750)SCREW, (.312-18 x 3.750)
-
512-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
627-8052151 GASKETGASKET
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
1194576 WEAR PLATEWEAR PLATE
-
1225-94288 QUAD RINGQUAD RING
-
1346-94913A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1426-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1530-72961 BEARING, BallBEARING, Ball
-
1659501A1 SHAFTSHAFT
-
1753-23720 RING, RetainingRING, Retaining
-
1826-72785 SEALSEAL
-
1947530 HUBHUB
-
2073798A1 PULLEYPULLEY
-
2110-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
2213-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2313-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2411-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2589535T BRACKETBRACKET
-
2610-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2713-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2812-34714 WASHERWASHER
-
2989609 BRACEBRACE
-
3010-26487 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
3113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3212-34714 WASHERWASHER
-
3310-35786 SCREW, (.375-24 x 1.00)SCREW, (.375-24 x 1.00)
-
3413-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3511-46335 NUT, (.375-24)NUT, (.375-24)
-
3622-328022 PLUG, Pipe (.125-27)
(FOr Water Pump Body)PLUG, Pipe (.125-27)
(FOr Water Pump Body) -
3757-74271Q V BELT, (35.125 In)V BELT, (35.125 In)
-
3832-88795 HOSEHOSE
-
3954-815504220 CLAMP, Worm GearCLAMP, Worm Gear
