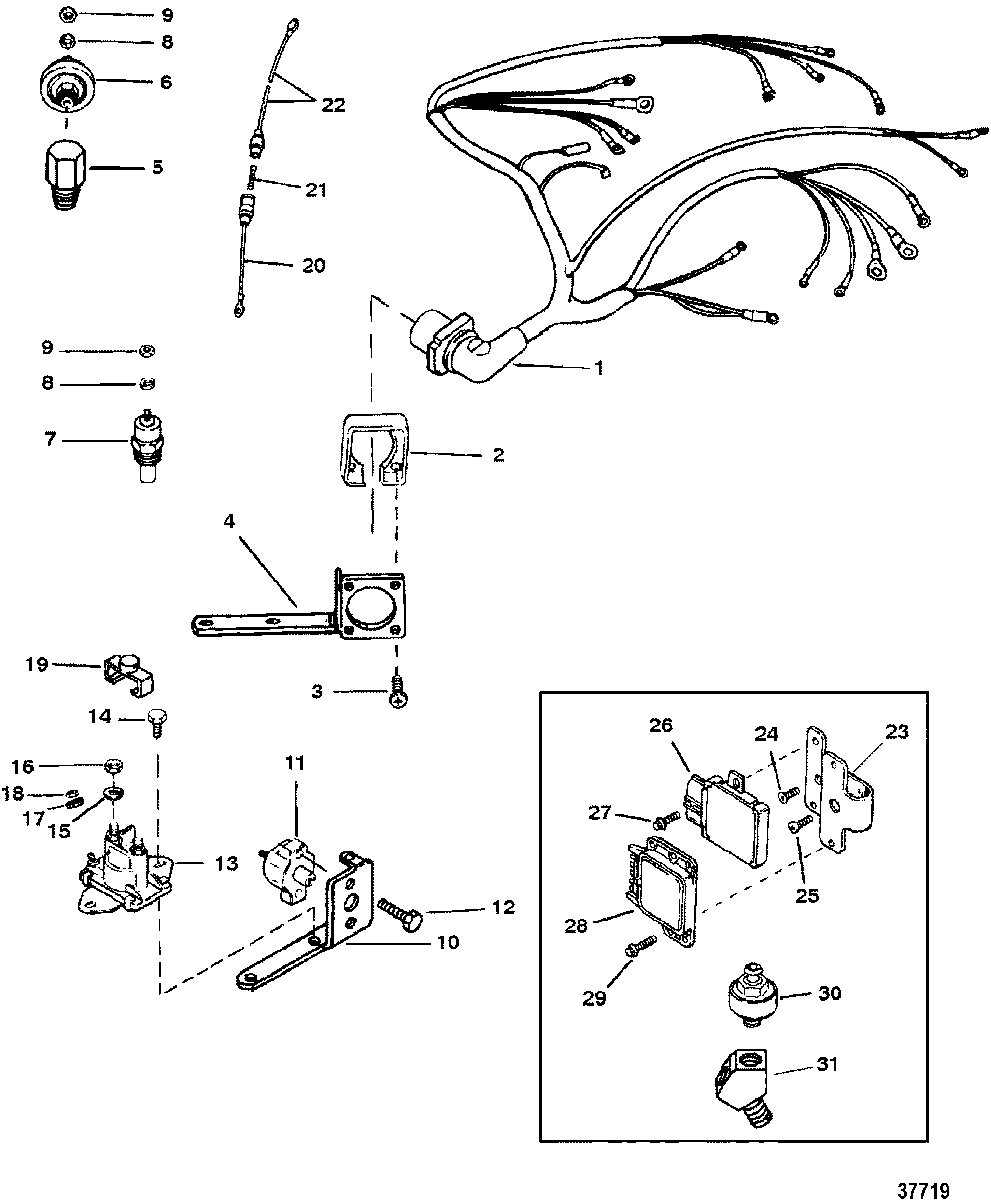

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1996 0F601000 THRU 0K001526
-
№АртикулНазвание
-
184-807229A2 HARNESS ASSEMBLY
(5.7L ALPHA/BRAVO)HARNESS ASSEMBLY
(5.7L ALPHA/BRAVO) -
184-806966A2 HARNESS ASSEMBLY
(5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA)HARNESS ASSEMBLY
(5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA) -
226079A2 PLATE KIT, Wire Harness MountPLATE KIT, Wire Harness Mount
-
310-15001 SCREW, (#8-16 x .875)SCREW, (#8-16 x .875)
-
4805383T BRACKET, Harness MountingBRACKET, Harness Mounting
-
522-8053281 FITTING, Elbow (90 Degree - .125)FITTING, Elbow (90 Degree - .125)
-
68M0068784 SENDER ASSEMBLY, Oil PressureSENDER ASSEMBLY, Oil Pressure
-
637293T SENDER ASSEMBLY, Oil Pressure
(DUAL STATION)SENDER ASSEMBLY, Oil Pressure
(DUAL STATION) -
7806490T SENDER ASSEMBLY, Water TemperatureSENDER ASSEMBLY, Water Temperature
-
749734 SENDER ASSEMBLY, Water Temperature
(DUAL STATION)SENDER ASSEMBLY, Water Temperature
(DUAL STATION) -
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
10899719T01 BRACKET, ElectricalBRACKET, Electrical
-
1188-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
1210-57583T SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
1389-96158T SOLENOID, StarterSOLENOID, Starter
-
1410-805564 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
1513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1611-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
1713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
1811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1985-97861 INSULATORINSULATOR
-
2084-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINESCABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
BRAVO ENGINES -
2188-79091 FUSE, 20 Ampere
BRAVO ENGINESFUSE, 20 Ampere
BRAVO ENGINES -
2284-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINESCABLE ASSEMBLY, (5.00 Inches) Red
BRAVO ENGINES -
23807763T BRACKETBRACKET
-
2410-806834 SCREW
(FLATHEAD)SCREW
(FLATHEAD) -
2510-861520 SCREW, (10-32 x .50)SCREW, (10-32 x .50)
-
26807264A01 ICM MODULE, Ignition Control Module
(5.7L ALPHA)ICM MODULE, Ignition Control Module
(5.7L ALPHA) -
26807645A01 ICM MODULE, Ignition Control Module
(5.7L BRAVO)ICM MODULE, Ignition Control Module
(5.7L BRAVO) -
26807264A01 ICM MODULE, Ignition Control Module
(5.7LX ALPHA AND 350 MAGNUM ALPHA)ICM MODULE, Ignition Control Module
(5.7LX ALPHA AND 350 MAGNUM ALPHA) -
26806956A01 ICM MODULE, Ignition Control Module
(5.7LX BRAVO)ICM MODULE, Ignition Control Module
(5.7LX BRAVO) -
2710-806826 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
28806611T MODULE, Knock Control
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHAMODULE, Knock Control
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA -
2910-806827 SCREW, (#8-32 x .380)
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHASCREW, (#8-32 x .380)
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA -
30806612T SENSOR, Knock
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHASENSOR, Knock
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA -
3122-806705 Y-FITTING
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHAY-FITTING
5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
