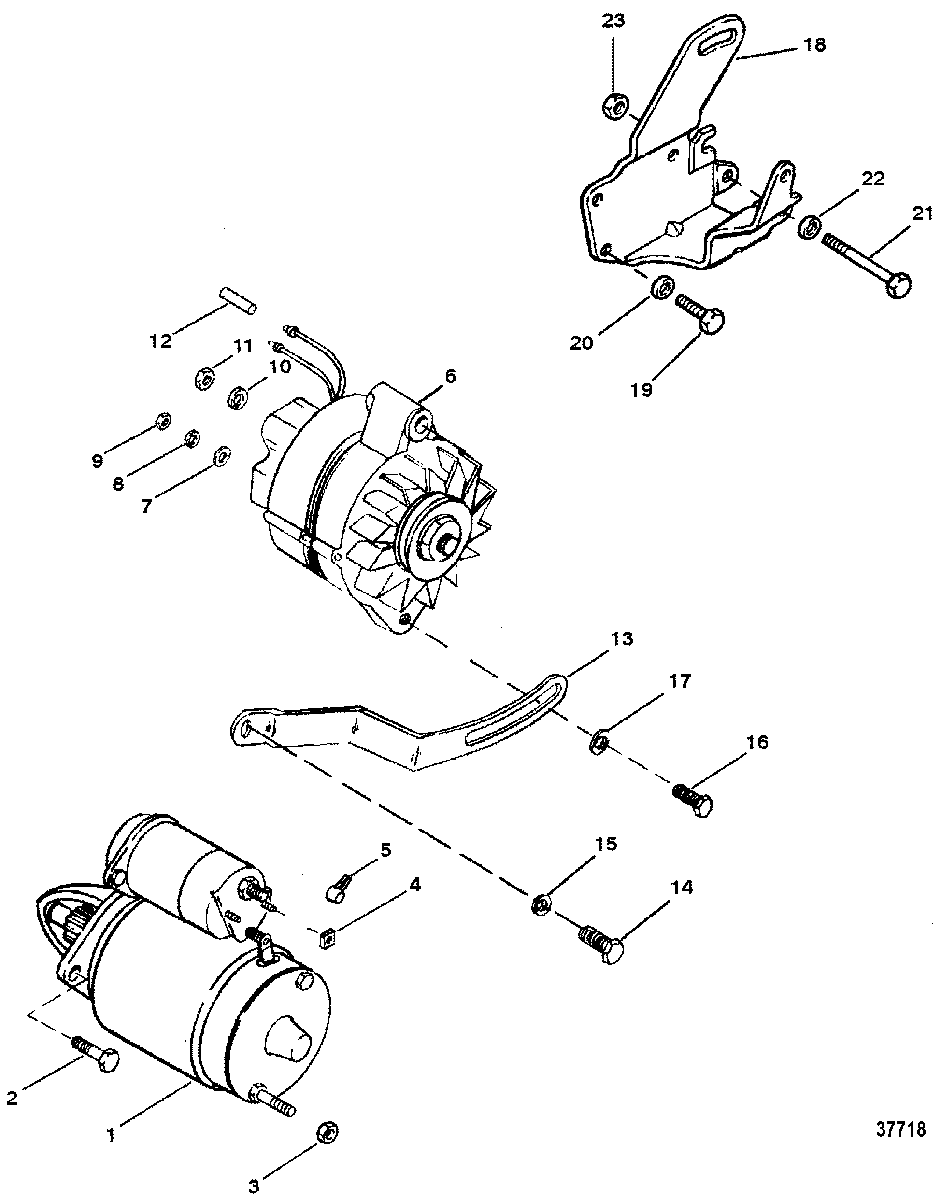

STARTER MOTOR AND ALTERNATOR для Mercruiser - 5.7L (2 BBL.) GM 350 V-8 1996 0F601000 THRU 0K001526
-
№АртикулНазвание
-
150-863007A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-8053432 SCREW, (.375-16 x 4.33)SCREW, (.375-16 x 4.33)
-
311-806949 NUT, (M8-1.5)NUT, (M8-1.5)
-
411-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
585-79695T BOOT, Insulator - BlackBOOT, Insulator - Black
-
6817119A4 ALTERNATORALTERNATOR
-
712-96457 WASHER, Phenolic (.27 x .81 x .062)WASHER, Phenolic (.27 x .81 x .062)
-
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
911-79989 NUT, (#10-24) Stainless SteelNUT, (#10-24) Stainless Steel
-
1013-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1111-94330 NUT, (.250-20) BrassNUT, (.250-20) Brass
-
125790811 SLEEVE, (10.00 Inches Bulk)SLEEVE, (10.00 Inches Bulk)
-
1385013T BRACEBRACE
-
1410-98261 SCREW, (.375-16 x .750)
(ALPHA ENGINES)SCREW, (.375-16 x .750)
(ALPHA ENGINES) -
1410-26487 SCREW, (.375-16 x 1.12)
(BRAVO ENGINES)SCREW, (.375-16 x 1.12)
(BRAVO ENGINES) -
1513-35048 LOCKWASHER, (.375)
(BRAVO ENGINES)LOCKWASHER, (.375)
(BRAVO ENGINES) -
1610-29198 SCREW AND LOCKWASHER, (.312-18 x .875)SCREW AND LOCKWASHER, (.312-18 x .875)
-
1712-26168 WASHERWASHER
-
1815083T BRACKETBRACKET
-
1910-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2012-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1910-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2012-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1910-48424 SCREW, (.375-16 x 1.620)SCREW, (.375-16 x 1.620)
-
2012-46132 WASHERWASHER
-
2110-56743 SCREW, (.375-24 x 3.125)SCREW, (.375-24 x 3.125)
-
2212-34714 WASHERWASHER
-
2311-23161 NUT, (.375-24)NUT, (.375-24)
