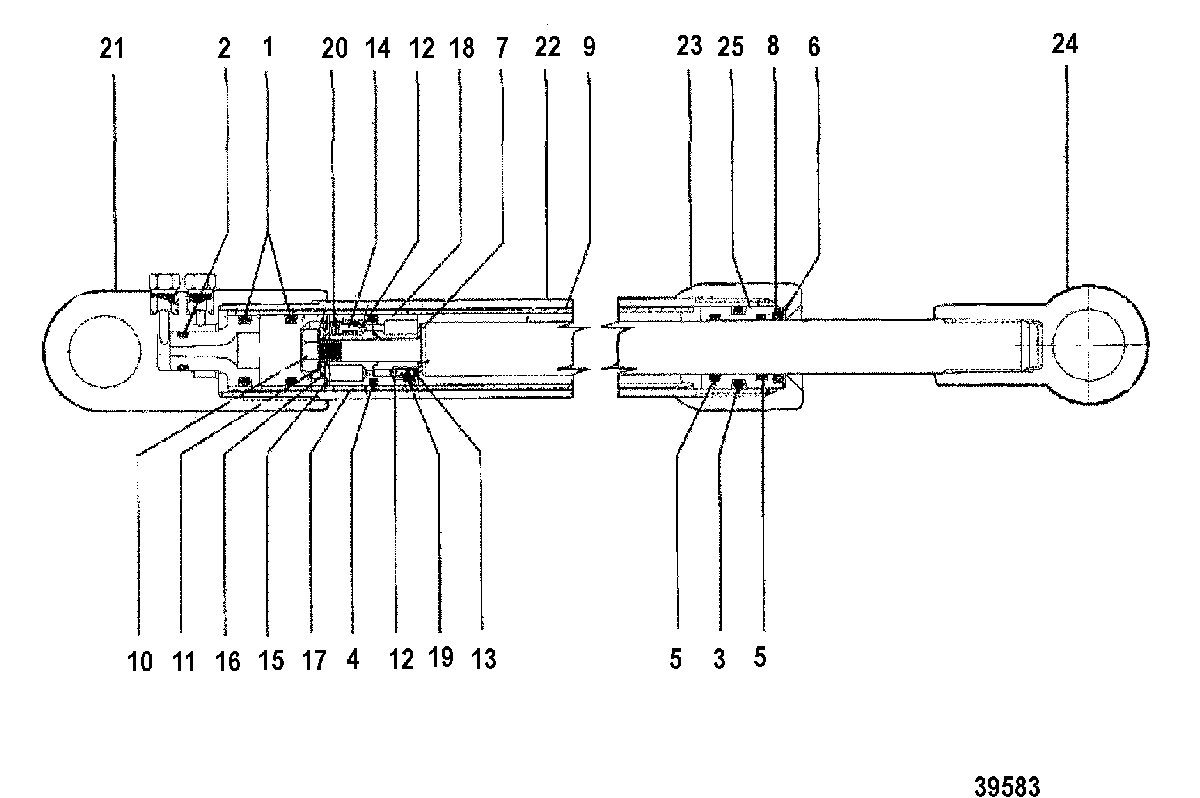

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - 470 1976-1977 4208730 THRU 4893934
-
№АртикулНазвание
-
-45522A3 REPAIR KIT, Pivot EndREPAIR KIT, Pivot End
-
-25-60342A2 O-RING KITO-RING KIT
-
1N.S.S. Not Sold Separate, O Ring (3/4" X 1 X 5/32")Not Sold Separate, O Ring (3/4" X 1 X 5/32")
-
2N.S.S. Not Sold Separate, O Ring (3/8 X 9/16" X 3/32")Not Sold Separate, O Ring (3/8 X 9/16" X 3/32")
-
3N.S.S. Not Sold Separate, O Ring (7/8" X 1 1/8" X 1/8")Not Sold Separate, O Ring (7/8" X 1 1/8" X 1/8")
-
4N.S.S. Not Sold Separate, O Ring (13/16" X 3/32 SQ.)Not Sold Separate, O Ring (13/16" X 3/32 SQ.)
-
5N.S.S. Not Sold Separate, O Ring (3/4" X 15/16" X 1/8")Not Sold Separate, O Ring (3/4" X 15/16" X 1/8")
-
6N.S.S. Not Sold Separate, WASHER, PLAIN - END CAPNot Sold Separate, WASHER, PLAIN - END CAP
-
7N.S.S. Not Sold Separate, WASHER, SEALINGNot Sold Separate, WASHER, SEALING
-
8N.S.S. Not Sold Separate, ROD SCRAPERNot Sold Separate, ROD SCRAPER
-
9N.S.S. Not Sold Separate, TUBE, INNERNot Sold Separate, TUBE, INNER
-
10N.S.S. Not Sold Separate, NUT, PISTON RODNot Sold Separate, NUT, PISTON ROD
-
11N.S.S. Not Sold Separate, WASHER, PISTON ROD NUTNot Sold Separate, WASHER, PISTON ROD NUT
-
12N.S.S. Not Sold Separate, BALL, STEELNot Sold Separate, BALL, STEEL
-
13N.S.S. Not Sold Separate, SPRING, BY-PASSNot Sold Separate, SPRING, BY-PASS
-
14N.S.S. Not Sold Separate, RIVET, TUBULARNot Sold Separate, RIVET, TUBULAR
-
15N.S.S. Not Sold Separate, WASHER, SHOCK PISTONNot Sold Separate, WASHER, SHOCK PISTON
-
16N.S.S. Not Sold Separate, WASHER, SHOCK PISTONNot Sold Separate, WASHER, SHOCK PISTON
-
17N.S.S. Not Sold Separate, PISTON, SHOCK - IMPACTNot Sold Separate, PISTON, SHOCK - IMPACT
-
18N.S.S. Not Sold Separate, PISTON, SHOCK - RETURNNot Sold Separate, PISTON, SHOCK - RETURN
-
19N.S.S. Not Sold Separate, EYELETNot Sold Separate, EYELET
-
20N.S.S. Not Sold Separate, SPRING, COMPRESSIONNot Sold Separate, SPRING, COMPRESSION
-
-77442A1 REPAIR KIT, Outer TubeREPAIR KIT, Outer Tube
-
21N.S.S. Not Sold Separate, END CAP, GIMBAL RINGNot Sold Separate, END CAP, GIMBAL RING
-
22N.S.S. Not Sold Separate, TUBE, OUTERNot Sold Separate, TUBE, OUTER
-
2377442A1 END CAPEND CAP
-
2445522T1 PIVOT ENDPIVOT END
-
2545726 BEARING, PISTON RODBEARING, PISTON ROD
