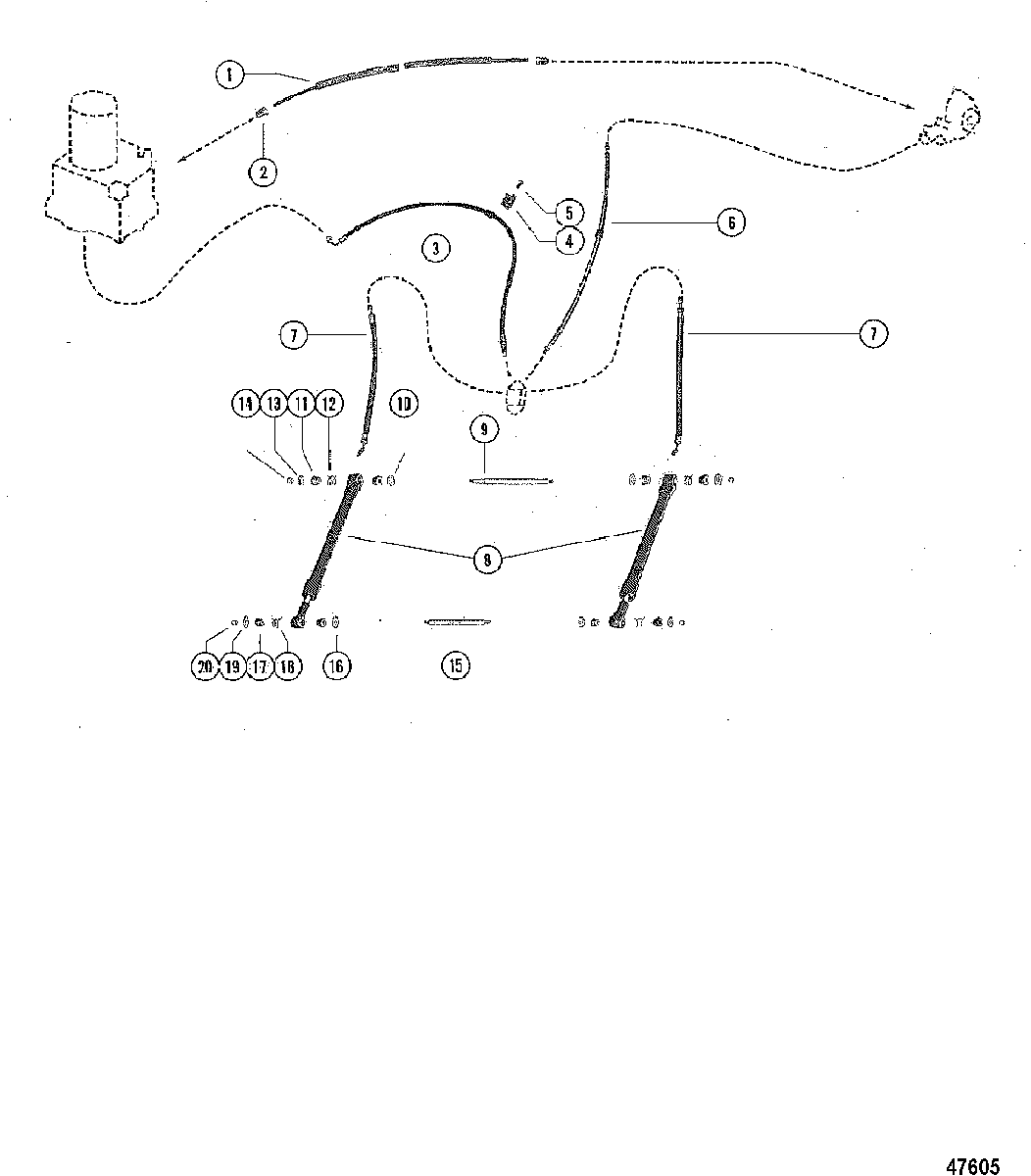

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 470 1976-1977 4208730 THRU 4893934
-
№АртикулНазвание
-
132-52951A1 HOSE, HYDRAULIC PUMP TO REVERSE VALVEHOSE, HYDRAULIC PUMP TO REVERSE VALVE
-
222-49718 NUT, NUT - HYDRAULIC TUBENUT, NUT - HYDRAULIC TUBE
-
332-55816 HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) (18")HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (BLACK) (18")
-
454-45806 CLAMP, HYDRAULIC HOSE TO TRANSOM PLATECLAMP, HYDRAULIC HOSE TO TRANSOM PLATE
-
510-35519 SCREW, (#10-16 x .500), HYDRAULIC HOSE CLAMP ATTACHING (1/2")SCREW, (#10-16 x .500), HYDRAULIC HOSE CLAMP ATTACHING (1/2")
-
632-59842 HOSE, HYDRAULIC - CONNECTOR TO VALVE (GRAY) - 29 1/2")HOSE, HYDRAULIC - CONNECTOR TO VALVE (GRAY) - 29 1/2")
-
732-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
-
845706A14 TRIM CYLINDER ASSEMBLY, COMPLETETRIM CYLINDER ASSEMBLY, COMPLETE
-
-45522A3 REPAIR KIT, Pivot End, TRIM CYLINDERREPAIR KIT, Pivot End, TRIM CYLINDER
-
-77442A1 REPAIR KIT, Outer Tube, TRIM CYLINDERREPAIR KIT, Outer Tube, TRIM CYLINDER
-
-25-60342A2 O-RING KIT, TRIM CYLINDERO-RING KIT, TRIM CYLINDER
-
917-45735 PIN, Front Anchor, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, Front Anchor, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
1012-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1123-89574 BUSHING, RUBBER - FRONT ANCHOR PINBUSHING, RUBBER - FRONT ANCHOR PIN
-
1224-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1312-46765 WASHER, (.390 x 1.50 x .120), FRONT ANCHOR PINWASHER, (.390 x 1.50 x .120), FRONT ANCHOR PIN
-
1411-82671013 NUT, (.375-24), FRONT ANCHOR PINNUT, (.375-24), FRONT ANCHOR PIN
-
1517-45738 PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HOUSING (7 1)
-
1612-45737 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1723-89574 BUSHING, RUBBER - REAR ANCHOR PINBUSHING, RUBBER - REAR ANCHOR PIN
-
1824-46312 SPRING, REAR ANCHOR PINSPRING, REAR ANCHOR PIN
-
1912-46765 WASHER, (.390 x 1.50 x .120), REAR ANCHOR PINWASHER, (.390 x 1.50 x .120), REAR ANCHOR PIN
-
2011-82671013 NUT, (.375-24), REAR ANCHOR PINNUT, (.375-24), REAR ANCHOR PIN
