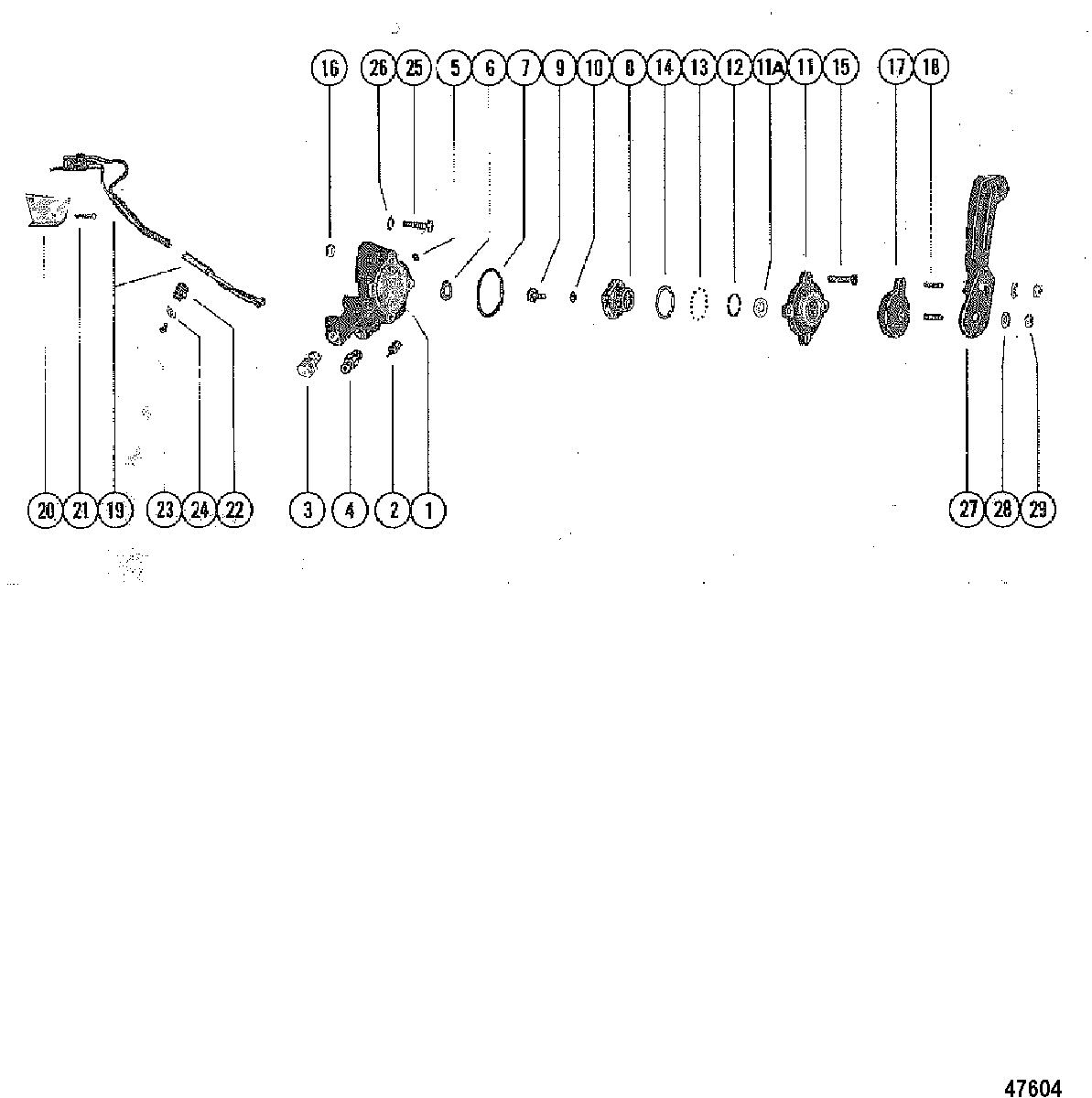

REVERSE LOCK VALVE ASSEMBLY для Mercruiser - 470 1976-1977 4208730 THRU 4893934
-
№АртикулНазвание
-
176812T4 VALVE ASSEMBLY, Reverse LockVALVE ASSEMBLY, Reverse Lock
-
245709 FOLLOWER, CAMFOLLOWER, CAM
-
322-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
422-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
522-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
613-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
725-457101 O-RING, (1.424 x .103), REVERSE LOCK VALVEO-RING, (1.424 x .103), REVERSE LOCK VALVE
-
845526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
910-46736 SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")SCREW, (0.5 In.), CAM TO CAM LEVER (1/2")
-
1013-26996 LOCKWASHER, (#10) Stainless Steel, CAM SCREWLOCKWASHER, (#10) Stainless Steel, CAM SCREW
-
1145528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
11A12-59570 WASHER, REVERSE LOCK VALVE COVERWASHER, REVERSE LOCK VALVE COVER
-
1225-45711 O-RING, (.612 x .103), VALVE COVERO-RING, (.612 x .103), VALVE COVER
-
1330-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1412-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1510-45716 SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE (15/16")SCREW, (#10-32 x .9375), COVER TO REVERSE LOCK VALVE (15/16")
-
1611-20110 NUT, (#10-32), COVER SCREWNUT, (#10-32), COVER SCREW
-
1746732A1 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1816-45715 STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, (10-32 x .718), SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
1946482A2 SWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVESWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVE
-
2045717 SHIELD, CUT-OUT SWITCHSHIELD, CUT-OUT SWITCH
-
2110-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
2254-22740 CLIP, CUT-OUT SWITCH LEADCLIP, CUT-OUT SWITCH LEAD
-
2310-35519 SCREW, (#10-16 x .500), CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, (#10-16 x .500), CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
2254-648552 CLAMP, CUT-OUT SWITCH LEADCLAMP, CUT-OUT SWITCH LEAD
-
2310-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHINGSCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING
-
248M0084613 D WASHER, CLIP ATTACHING SCREWD WASHER, CLIP ATTACHING SCREW
-
2510-25299 SCREW, (.312-18 x .75), REVERSE LOCK VALVE (3/4")SCREW, (.312-18 x .75), REVERSE LOCK VALVE (3/4")
-
2613-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
2766397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
-
2812-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
2911-20110 NUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, (#10-32), SHIFT CONTROL LEVER TO CAM LEVER STUD
