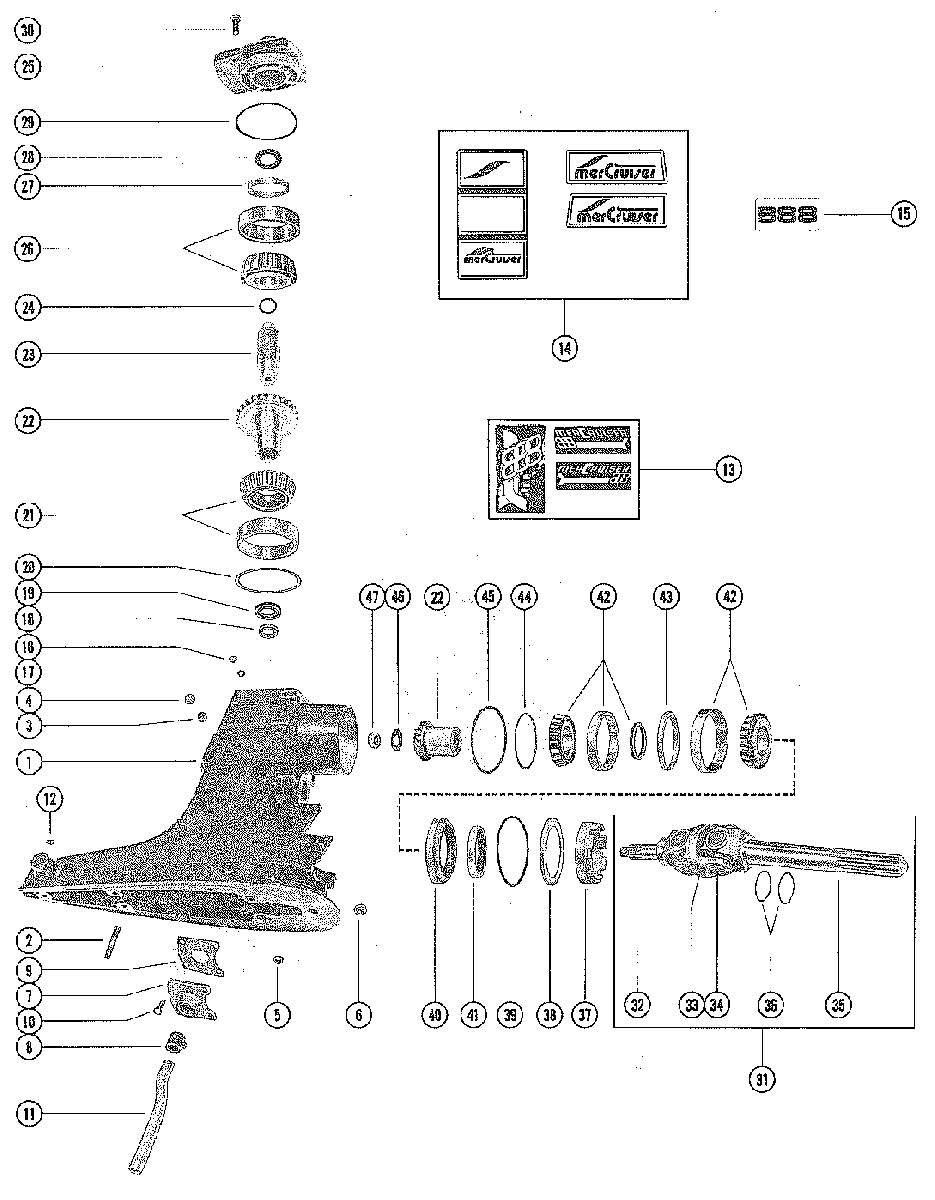

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 888 1971-1977 3106717 AND UP
-
№АртикулНазвание
-
11547-9412A18 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
216-56295 ,STUD,DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16"),STUD,DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
-
322-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)
-
419-32652 WELCH PLUG, DRIVE SHAFT HOUSINGWELCH PLUG, DRIVE SHAFT HOUSING
-
523-32632 BUSHING, DRIVE SHAFT HOUSINGBUSHING, DRIVE SHAFT HOUSING
-
611-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
742724A3 COVER ASSEMBLY, WATER POCKET COVERCOVER ASSEMBLY, WATER POCKET COVER
-
826-36557 SEAL, RUBBER - WATER POCKET COVERSEAL, RUBBER - WATER POCKET COVER
-
927-558101 GASKET, WATER POCKET COVERGASKET, WATER POCKET COVER
-
1010-28668 SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
-
1132-54236 TUBE, WATER - WATER POCKET COVERTUBE, WATER - WATER POCKET COVER
-
1219-32298 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSINGPLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
-
1337-70658A1 DECAL SET, DRIVE SHAFT HOUSING
SERIAL 00000000-04009299DECAL SET, DRIVE SHAFT HOUSING
SERIAL 00000000-04009299 -
1337-70658A1 DECAL SET, DRIVE SHAFT HOUSING
SERIAL 04009300-04193999DECAL SET, DRIVE SHAFT HOUSING
SERIAL 04009300-04193999 -
1337-70658A1 DECAL SET, DRIVE SHAFT HOUSING
SERIAL 00419400-04634109DECAL SET, DRIVE SHAFT HOUSING
SERIAL 00419400-04634109 -
1437-76731A1 DECAL SET, DRIVE SHAFT HOUSING
SERIAL 04634110-09999999DECAL SET, DRIVE SHAFT HOUSING
SERIAL 04634110-09999999 -
1537-76752 DECAL, DRIVE SHAFT HOUSING "888"
SERIAL 04634110-09999999DECAL, DRIVE SHAFT HOUSING "888"
SERIAL 04634110-09999999 -
1610-79953Q04 SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLESCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
-
1712-191833 WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCREWASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
-
1826-965031 OIL SEAL, DRIVE SHAFT HOUSING - LOWEROIL SEAL, DRIVE SHAFT HOUSING - LOWER
-
1926-32511 OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSINGOIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING
-
2015-36178A02 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-10-15)SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-10-15)
-
2131-35990A1 TAPERED ROLLER BEARING ASSSENBLY, PINION GEARTAPERED ROLLER BEARING ASSSENBLY, PINION GEAR
-
2243-18411A2 GEAR ASSEMBLY, COMPLETE (20-22 GEAR RATIO)GEAR ASSEMBLY, COMPLETE (20-22 GEAR RATIO)
-
2345-55796 DRIVE SHAFT, UPPERDRIVE SHAFT, UPPER
-
2425-55801 "O" RING, UPPER DRIVE SHAFT"O" RING, UPPER DRIVE SHAFT
-
2576098A1 COVER, TOP - DRIVE SHAFT HOUSING
SERIAL 00000000-03248347COVER, TOP - DRIVE SHAFT HOUSING
SERIAL 00000000-03248347 -
2631-32575T1 BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 00000000-03248347BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 00000000-03248347 -
2723-55798 SPACER,UPPER DRIVE SHAFT
SERIAL 00000000-03248347SPACER,UPPER DRIVE SHAFT
SERIAL 00000000-03248347 -
2824-55797 SPRING, UPPER DRIVE SHAFT (TOP COVER)
SERIAL 00000000-03248347SPRING, UPPER DRIVE SHAFT (TOP COVER)
SERIAL 00000000-03248347 -
2576098A1 COVER ASSEMBLY, TOP - DRIVE SHAFT
SERIAL 03248348-03472477COVER ASSEMBLY, TOP - DRIVE SHAFT
SERIAL 03248348-03472477 -
2631-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 03248348-03472477BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 03248348-03472477 -
2824-55797 SPRING, UPPER DRIVE SHAFT (TOP COVER)
SERIAL 03248348-03472477SPRING, UPPER DRIVE SHAFT (TOP COVER)
SERIAL 03248348-03472477 -
2576098A1 COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
SERIAL 03472478-04433199COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
SERIAL 03472478-04433199 -
2631-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 03472478-04433199BEARING ASSEMBLY, DRIVE SHAFT
SERIAL 03472478-04433199 -
2815-45691A1 SHIM, BEARING CUP TO TOP COVER
SERIAL 03472478-04433199SHIM, BEARING CUP TO TOP COVER
SERIAL 03472478-04433199 -
2576098A1 COVER ASSEMNLY, TOP - DRIVE SHAFT HOUSING
SERIAL 04433200-09999999COVER ASSEMNLY, TOP - DRIVE SHAFT HOUSING
SERIAL 04433200-09999999 -
2631-61100A1 BEARING ASSEMNLY, DRIVE SHAFT
SERIAL 04433200-09999999BEARING ASSEMNLY, DRIVE SHAFT
SERIAL 04433200-09999999 -
2815-45691A1 SHIM, BEARING CUP TO TOP COVER
SERIAL 04433200-09999999SHIM, BEARING CUP TO TOP COVER
SERIAL 04433200-09999999 -
2925-32546 "O" RING, TOP COVER SEALING"O" RING, TOP COVER SEALING
-
3010-8M0113174 SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
-
31814819A2 UNIVERSAL JOINT ASSEMBLY, DRIVE GEARUNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
-
3246020T02 YOKE, UNIVERSAL JOINT - GEAR ENDYOKE, UNIVERSAL JOINT - GEAR END
-
33393831 SOCKET, CENTER - UNIVERSAL JOINTSOCKET, CENTER - UNIVERSAL JOINT
-
3475832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINTCROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
-
3559830A7 YOKE ASSEMNLY, UNIVERSAL JOINT - COUPLING ENDYOKE ASSEMNLY, UNIVERSAL JOINT - COUPLING END
-
3625-25439 "O" RING, UNIVERSAL JOINT"O" RING, UNIVERSAL JOINT
-
378168112 RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINTRETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT
-
3835983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIERRING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
-
3925-70937 "O" RING, OIL SEAL CARRIE"O" RING, OIL SEAL CARRIE
-
4066081A2 CARRIER ASSEMBLY, OIL SEAL
SERIAL 00000000-03784374CARRIER ASSEMBLY, OIL SEAL
SERIAL 00000000-03784374 -
4066081A2 CARRIER ASSEMNLY, OIL SEAL
SERIAL 03784375-09999999CARRIER ASSEMNLY, OIL SEAL
SERIAL 03784375-09999999 -
4126-823894 OIL SEAL, CARRIEROIL SEAL, CARRIER
-
4231-35988A12 TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEARTAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR
-
4323-35985 SPACER, DRIVE GEAR ROLLER BEARING CUPSSPACER, DRIVE GEAR ROLLER BEARING CUPS
-
4415-35980A1 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-15)SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-15)
-
4523-8M0124132 SHIM, BEARING CUP TO DRIVE SHAFT HOUSINGSHIM, BEARING CUP TO DRIVE SHAFT HOUSING
-
4612-45810 WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUTWASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
-
4711-22339 NUT, DRIVE GEAR TO UNIVERSAL JOINTNUT, DRIVE GEAR TO UNIVERSAL JOINT
