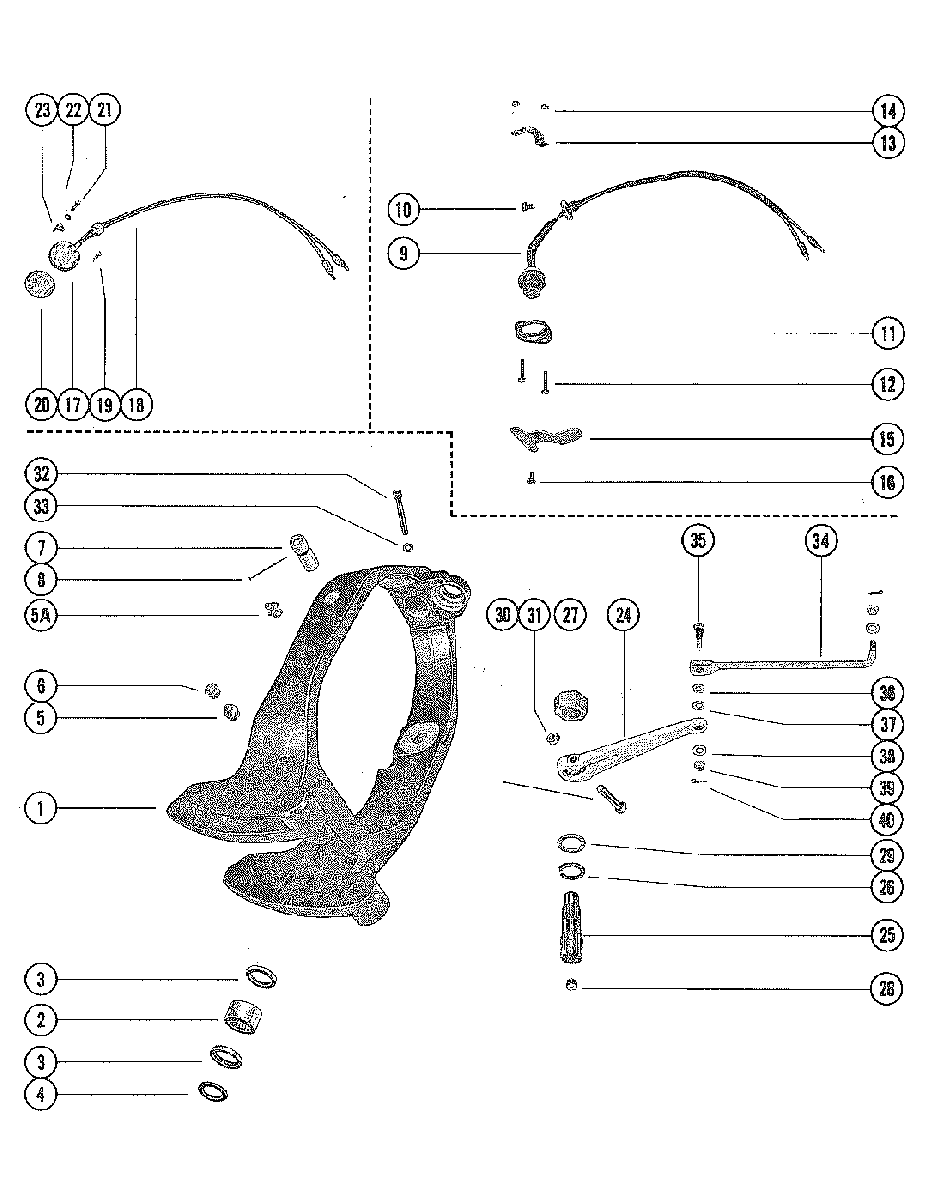

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 888 1971-1977 3106717 AND UP
-
№АртикулНазвание
-
187356A1 GIMBAL RING ASSEMBLY (WITHOUT GIBAL TRIM SENDER)GIMBAL RING ASSEMBLY (WITHOUT GIBAL TRIM SENDER)
-
188302A1 GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)
-
188302A1 GIMBAL RING ASSLEBLY (WITH GIMBAL TRIM SENDER AND GREASE FIT)GIMBAL RING ASSLEBLY (WITH GIMBAL TRIM SENDER AND GREASE FIT)
-
231-32538 BEARING, ROLLER - GIMBAL RINGBEARING, ROLLER - GIMBAL RING
-
326-32541 OIL SEAL, GIMBAL RINGOIL SEAL, GIMBAL RING
-
423-39273 SPACER, GIMBAL RINGSPACER, GIMBAL RING
-
522-69059 FITTING, GREASE - GIMBAL RING (1/8-27)FITTING, GREASE - GIMBAL RING (1/8-27)
-
5A22-74036 FITTING, GREASE - GIMBAL RING (1/4-28) - USED WITH B-77124AFITTING, GREASE - GIMBAL RING (1/4-28) - USED WITH B-77124A
-
619-77633Q LUBRICAP, GIMBAL RING GREASE FITTINGLUBRICAP, GIMBAL RING GREASE FITTING
-
717-77361A1 PIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDERPIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDER -
817-77039 PIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDERPIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
777123 PIN, HINGE - THREADED (WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDERPIN, HINGE - THREADED (WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDER -
777123 PIN, HINGE - THREADED (WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDERPIN, HINGE - THREADED (WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDER -
945942A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING
WITHOUT GIMBAL TRIM SENDERTILT STOP SWITCH ASSEMBLY, GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1010-20367 SCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDERSCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDER -
1131899 PLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDERPLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1210-45862 SCREW, PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDERSCREW, PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDER -
1332637 STRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDERSTRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDER -
1411-20110 NUT, PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDERNUT, PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDER -
1549343 LEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDERLEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER -
1610-31903 SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDERSCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDER -
1764947 SENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDERSENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDER -
1884-19280 HARNESS, DUMMY SENDER
WITH GIMBAL TRIM SENDERHARNESS, DUMMY SENDER
WITH GIMBAL TRIM SENDER -
1910-46942 SCREW, HANESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDERSCREW, HANESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDER -
1763115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDERSWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDER -
1884-19292 HARNESS, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDERHARNESS, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDER -
1910-63400 SCREW, HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDERSCREW, HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDER -
2085-63990 INSULATOR, SWITCH AMD SENDER
WITH GIMBAL TRIM SENDERINSULATOR, SWITCH AMD SENDER
WITH GIMBAL TRIM SENDER -
2110-37978 SCREW, SWITCH AND SENDER TO GIMNAL RING (3/4")
WITH GIMBAL TRIM SENDERSCREW, SWITCH AND SENDER TO GIMNAL RING (3/4")
WITH GIMBAL TRIM SENDER -
2213-26996 LOCKWASHER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDERLOCKWASHER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER -
2357008 RETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDERRETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER -
2488433 STEETING LEVER (USE WITH LINK ROD NOT DRILLED FOR COTTER PIN)STEETING LEVER (USE WITH LINK ROD NOT DRILLED FOR COTTER PIN)
-
2488433 STEERING LEVER (USE WITH LINK ROD DRILLED FOR COTTER PIN)STEERING LEVER (USE WITH LINK ROD DRILLED FOR COTTER PIN)
-
2532582 SHAFT, UPPER SWIVEL (WITHOUT GIMBAL TRIM SENDER)SHAFT, UPPER SWIVEL (WITHOUT GIMBAL TRIM SENDER)
-
2588302A1 SHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDERSHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDER -
2653-72413 RETAINING RING, UPPER SWIVEL SHAFT WITH GIMBAL TRIM SENDER
WITH GIMBAL TRIM SENDERRETAINING RING, UPPER SWIVEL SHAFT WITH GIMBAL TRIM SENDER
WITH GIMBAL TRIM SENDER -
2711-8M2014641 NUT, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDERNUT, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER -
2822-32561 PLUG,PIPE - UPPER SWIVEL SHAFTPLUG,PIPE - UPPER SWIVEL SHAFT
-
2912-32996 WASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDER -
2912-32997 WASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDER -
2912-47683 WASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDER -
2912-32997 WASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDER -
3010-807204 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")
-
3111-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREWNUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
-
3210-45833 SCREW, UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDERSCREW, UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDER -
3312-20546 WASHER, UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDERWASHER, UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDER -
3478790A6 LINK ROD, STEERING
LINK ROD NOT DRILLED FOR COTTER PINLINK ROD, STEERING
LINK ROD NOT DRILLED FOR COTTER PIN -
3510-54488 SCREW, LEVER TO LINK ROD
LINK ROD NOT DRILLED FOR COTTER PINSCREW, LEVER TO LINK ROD
LINK ROD NOT DRILLED FOR COTTER PIN -
3612-34966 WASHER, STEERING LINK ROD (NYLON)
LINK ROD NOT DRILLED FOR COTTER PINWASHER, STEERING LINK ROD (NYLON)
LINK ROD NOT DRILLED FOR COTTER PIN -
3713-54667 WASHER, SPRING - STEERING LINK ROD
LINK ROD NOT DRILLED FOR COTTER PINWASHER, SPRING - STEERING LINK ROD
LINK ROD NOT DRILLED FOR COTTER PIN -
3812-20086 WASHER, STEERING LINK ROD (STEEL)
LINK ROD NOT DRILLED FOR COTTER PINWASHER, STEERING LINK ROD (STEEL)
LINK ROD NOT DRILLED FOR COTTER PIN -
3911-8M0042636 NUT, STEERING LINK ROD
LINK ROD NOT DRILLED FOR COTTER PINNUT, STEERING LINK ROD
LINK ROD NOT DRILLED FOR COTTER PIN -
3478790A6 STEERING LINK ROD ASSEMBLY
LINK ROD DRILLED FOR COTTER PINSTEERING LINK ROD ASSEMBLY
LINK ROD DRILLED FOR COTTER PIN -
3510-66389 SCREW, LEVER TO LINK ROD
LINK ROD DRILLED FOR COTTER PINSCREW, LEVER TO LINK ROD
LINK ROD DRILLED FOR COTTER PIN -
3612-34966 WASHER, STEERING LINK ROD (NYLON)
LINK ROD DRILLED FOR COTTER PINWASHER, STEERING LINK ROD (NYLON)
LINK ROD DRILLED FOR COTTER PIN -
3713-54667 WASHER, SPRING - STEERING LINK ROD
LINK ROD DRILLED FOR COTTER PINWASHER, SPRING - STEERING LINK ROD
LINK ROD DRILLED FOR COTTER PIN -
3812-20086 WASHER, STEERING LINK ROD (STEEL)
LINK ROD DRILLED FOR COTTER PINWASHER, STEERING LINK ROD (STEEL)
LINK ROD DRILLED FOR COTTER PIN -
3911-55438 NUT, STEERING LINK ROD
LINK ROD DRILLED FOR COTTER PINNUT, STEERING LINK ROD
LINK ROD DRILLED FOR COTTER PIN -
4018-45882 COTTER PIN, LINK ROD AND SCREW
LINK ROD DRILLED FOR COTTER PINCOTTER PIN, LINK ROD AND SCREW
LINK ROD DRILLED FOR COTTER PIN
