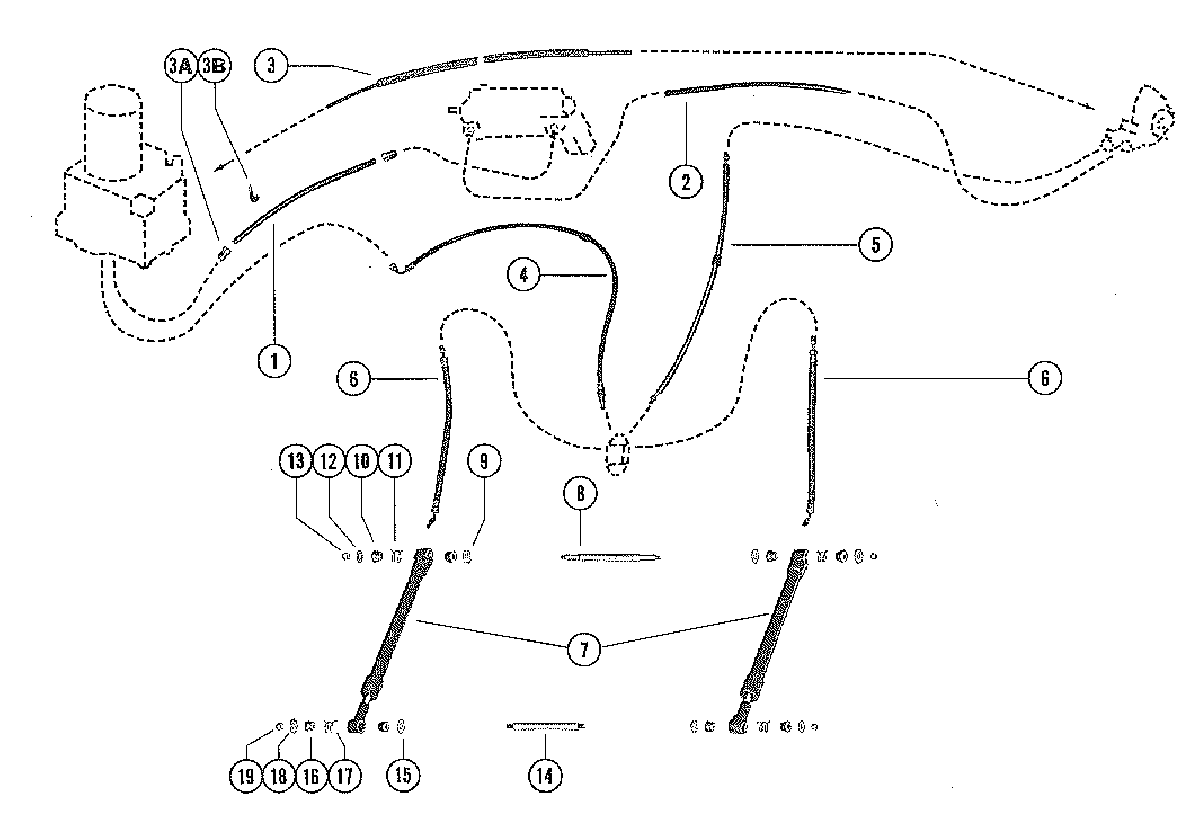

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 888 1971-1977 3106717 AND UP
-
№АртикулНазвание
-
132-8M0111655 TUGING, HYDRAULIC PUMP TO TRIM SENDER (BLACK-49")
WITHOUT GIMBAL TRIM SENDERTUGING, HYDRAULIC PUMP TO TRIM SENDER (BLACK-49")
WITHOUT GIMBAL TRIM SENDER -
232-52951A1 TUBING, TRIM SENDER TO REVERSE LOCK VALVE (BLACK-31")
WITHOUT GIMBAL TRIM SENDERTUBING, TRIM SENDER TO REVERSE LOCK VALVE (BLACK-31")
WITHOUT GIMBAL TRIM SENDER -
332-8M0111655 TUBING, HYDRAULIC PUMP TO VALVE (WITH GIMBAL TRIM SENDER)TUBING, HYDRAULIC PUMP TO VALVE (WITH GIMBAL TRIM SENDER)
-
3A22-49718 NUT, COMPRESSION - HYDRAULIC TUBE ATTACHINGNUT, COMPRESSION - HYDRAULIC TUBE ATTACHING
-
3B54-8M0090424 CLAMP,HOSECLAMP,HOSE
-
432-59841 HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (44")HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (44")
-
532-59842 HOSE, HYDRAULIC - CONNECTOR TO TRIM SENDER (29 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM SENDER (29 1/2")
-
632-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03784374HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03784374 -
632-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03784375HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
SERIAL 00000000-03784375 -
745706A14 TRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 19 FOR REPAIR KITTRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 19 FOR REPAIR KIT -
-45522A3 PIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KITPIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT -
-77442A1 OUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KITOUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT -
-25-60324A2 "O"RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT"O"RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT -
817-45735 PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
912-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1023-89574 BUSHING, RUBBER - FRONT ANCHOR PINBUSHING, RUBBER - FRONT ANCHOR PIN
-
1124-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1212-46765 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1311-82671013 NUT, FRONT ANCHOR PINNUT, FRONT ANCHOR PIN
-
1417-45738 PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE XHAFT HOUSING (7 1)PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE XHAFT HOUSING (7 1)
-
1512-45737 WASHER,REAR ANCHOR PINWASHER,REAR ANCHOR PIN
-
1623-89574 BUSHING, RUBBER - REAR ANCHOR PINBUSHING, RUBBER - REAR ANCHOR PIN
-
1724-46312 SPRING, REAR ANCHOR PINSPRING, REAR ANCHOR PIN
-
1812-46765 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1911-82671013 NUT, REAR ANCHOR PINNUT, REAR ANCHOR PIN
