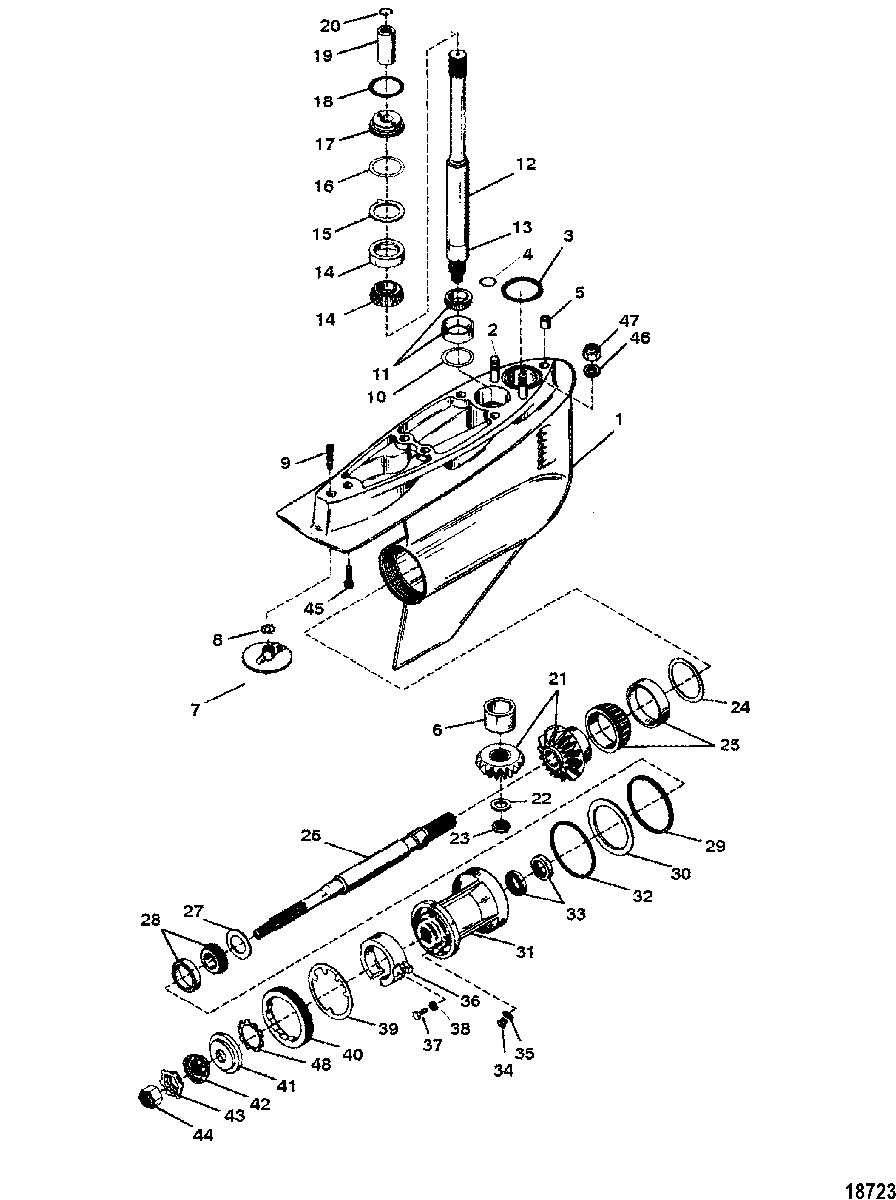

GEAR HOUSING(BRAVO I) для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000
-
№АртикулНазвание
-
-1656-8866A63 GEAR HOUSING ASSEMBLY, Complete
(STANDARD)GEAR HOUSING ASSEMBLY, Complete
(STANDARD) -
-1656-8866A55 GEAR HOUSING ASSEMBLY, Complete
(BRAVO I PERFORMANCE)GEAR HOUSING ASSEMBLY, Complete
(BRAVO I PERFORMANCE) -
11656-8866A64 GEAR HOUSING ASSEMBLY
(STANDARD)GEAR HOUSING ASSEMBLY
(STANDARD) -
11656-8866A54 GEAR HOUSING ASSEMBLY
(BRAVO I PERFORMANCE)GEAR HOUSING ASSEMBLY
(BRAVO I PERFORMANCE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-455771 SEALSEAL
-
526-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
631-86754T BEARING, RollerBEARING, Roller
-
797-76214Q5 ANODE KITANODE KIT
-
813-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
910-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1015-92914A1 SHIM KITSHIM KIT
-
1131-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1245-858517A3 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1331-815901 RACE, BearingRACE, Bearing
-
1431-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1514-86739 TAB WASHERTAB WASHER
-
1615-86749A1 SHIM KITSHIM KIT
-
1723-8M0046302 SPACERSPACER
-
1825-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
1988243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2053-88242 RING, RetainingRING, Retaining
-
2143-14063A1 GEAR SET, (15/19)GEAR SET, (15/19)
-
2212-86746 WASHERWASHER
-
2311-20739 NUT, (.750-16)NUT, (.750-16)
-
2415-87157A1 SHIM KITSHIM KIT
-
2531-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2644-41630T PROPELLER SHAFTPROPELLER SHAFT
-
2712-90886 WASHERWASHER
-
2831-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2967440T LOAD RINGLOAD RING
-
3012-42256 THRUST WASHER, (.105 Inch Thick)THRUST WASHER, (.105 Inch Thick)
-
3141641A8 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
3225-31534 O-RINGO-RING
-
3326-76868 SEALSEAL
-
3422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
3512-191833 WASHER, FiberWASHER, Fiber
-
3697-806188Q01 ANODE ASSEMBLYANODE ASSEMBLY
-
3710-806290 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
3813-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
3914-18323 TAB WASHERTAB WASHER
-
408M2000347 RETAINERRETAINER
-
4112-835467Q01 THRUST HUBTHRUST HUB
-
4212-31211Q03 WASHER, SplinedWASHER, Splined
-
4314-816629Q TAB WASHERTAB WASHER
-
4411-52707Q1 PROP NUTPROP NUT
-
4510-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
4612-861854 WASHERWASHER
-
4711-35053 NUT, (.437-20)NUT, (.437-20)
-
4813-423511 LOCKWASHER, ToothedLOCKWASHER, Toothed
-
-26-76868A04 SEAL KITSEAL KIT
