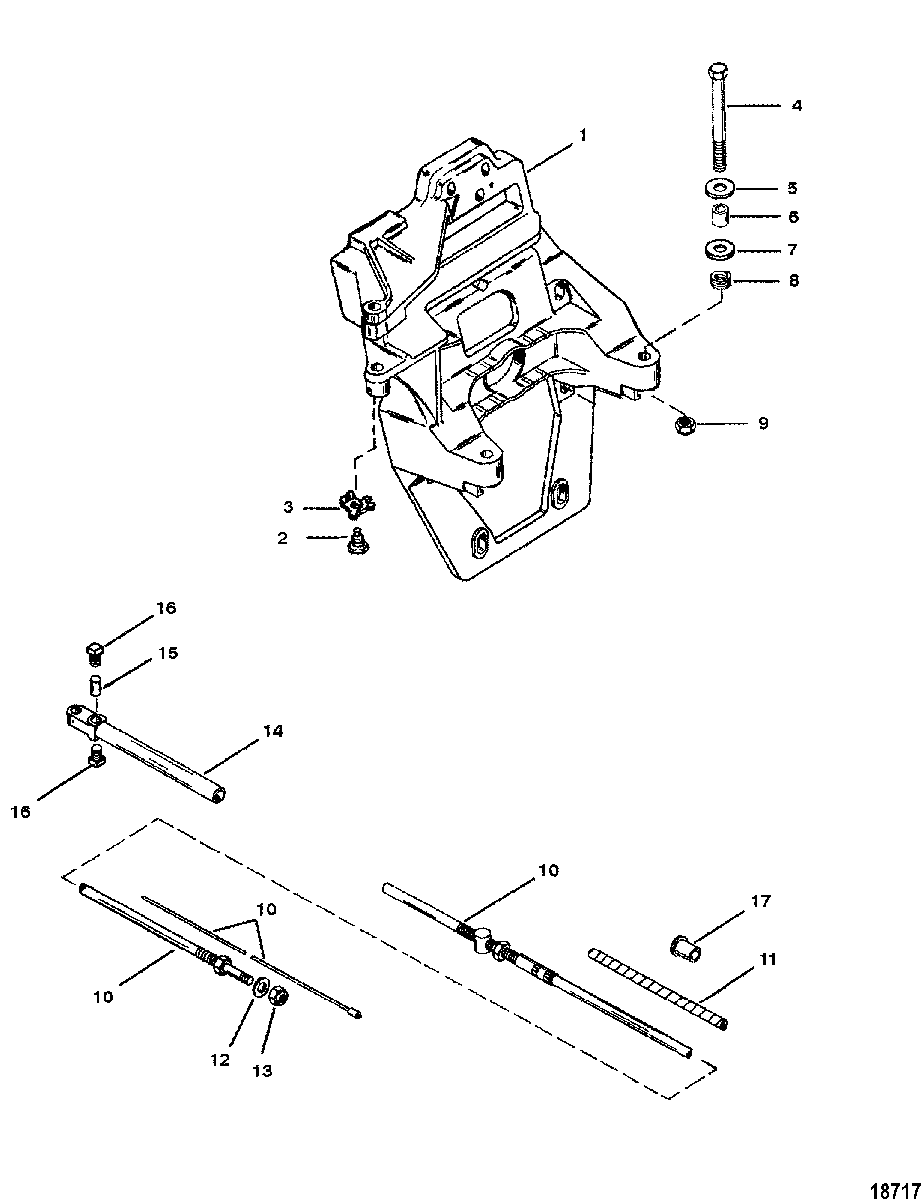

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
210-8M0113173 BOLTBOLT
-
314-42254 WASHERWASHER
-
410-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
-
512-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
623-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
712-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
813-33734 LOCKWASHER, (.500)LOCKWASHER, (.500)
-
911-863332 NUT, (.500-20)NUT, (.500-20)
-
10865437A02 CABLE ASSEMBLYCABLE ASSEMBLY
-
1190412 WRAPPING, (1.16 Feet Bulk)WRAPPING, (1.16 Feet Bulk)
-
1212-815472 WASHERWASHER
-
1311-49910 NUT, (.375-24)NUT, (.375-24)
-
-43433A01 GUIDE KITGUIDE KIT
-
1443433 GUIDEGUIDE
-
1543436 ANCHORANCHOR
-
1610-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
1714705 INSERTINSERT
