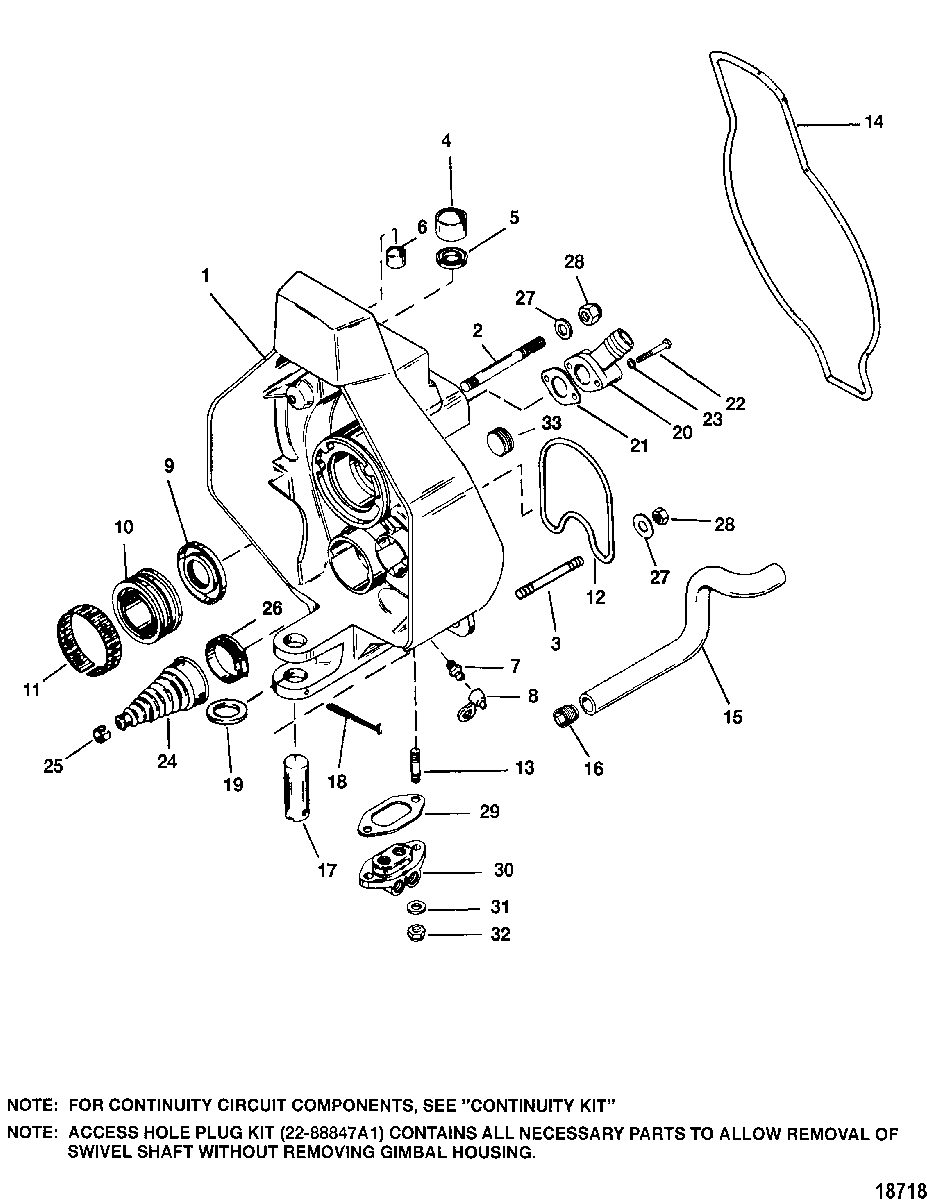

GIMBAL HOUSING для Mercruiser - BRAVO ONE 0F730000 THRU 0M100000
-
№АртикулНазвание
-
18M0096216 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
216-56296 STUD, (.437-20 x 4.750)STUD, (.437-20 x 4.750)
-
316-818834 STUD, (.437-20 x 4.250)STUD, (.437-20 x 4.250)
-
423-983571 BUSHINGBUSHING
-
526-8M2005029 SEAL, OilSEAL, Oil
-
623-98356 BUSHINGBUSHING
-
722-74036 FITTING, Grease
(With greased bearing)FITTING, Grease
(With greased bearing) -
710-8M2015913 PLUG, (.250-28 x .320)
(With non-greased bearing)PLUG, (.250-28 x .320)
(With non-greased bearing) -
819-77633Q LUBRICAPLUBRICAP
-
926-88416 SEAL, OilSEAL, Oil
-
1030-879194A01 BEARING ASSEMBLYBEARING ASSEMBLY
-
1161075 TOLERANCE RINGTOLERANCE RING
-
1241802 SEAL, RubberSEAL, Rubber
-
1316-56766 STUD, (.250-20/.250-28 x 1.380)STUD, (.250-20/.250-28 x 1.380)
-
1443713 SEALSEAL
-
1532-8M0090859 HOSEHOSE
-
1641674T INSERTINSERT
-
1717-8M0073409 SWIVEL PIN, LowerSWIVEL PIN, Lower
-
1818-54929 COTTER PINCOTTER PIN
-
1912-32518 WASHERWASHER
-
2022-8M0081543 CONNECTORCONNECTOR
-
2127-8M0109475 GASKETGASKET
-
2210-78038 SCREW, (.250-20 x 1.75)SCREW, (.250-20 x 1.75)
-
2313-21272 LOCKWASHER, (.250)LOCKWASHER, (.250)
-
2474639A2 BELLOWS, Shift CableBELLOWS, Shift Cable
-
2554-8M0090424 CLAMPCLAMP
-
2654-815504320 CLAMP, Worm GearCLAMP, Worm Gear
-
2712-34567 WASHERWASHER
-
2811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2927-988231 GASKETGASKET
-
308M0137703 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
3113-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
3211-8267119 NUT, (.250-28)NUT, (.250-28)
-
3322-428611 FITTING, Pipe - Brass (.750-14)FITTING, Pipe - Brass (.750-14)
-
-22-88847A1 PLUG KIT, Access HolePLUG KIT, Access Hole
