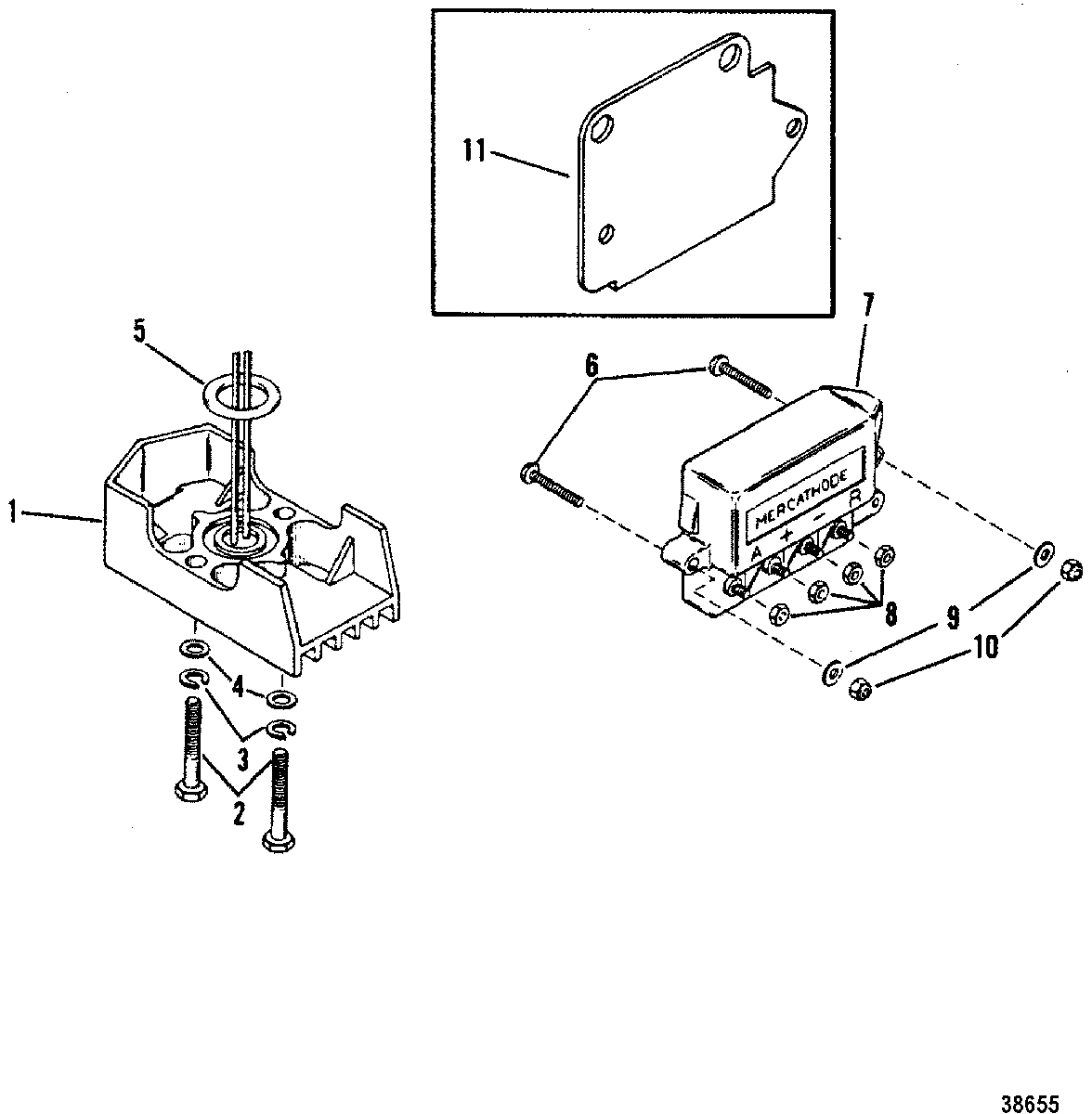

MERCATHODE KIT для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
18M0085692 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
210-69067 SCREW, (.250-20 x 1.375)SCREW, (.250-20 x 1.375)
-
313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
412-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
525-88388 O-RING
(DESIGN 1)O-RING
(DESIGN 1) -
525-805294 GROMMETGROMMET
-
682202 SCREW, (1.25 inch)SCREW, (1.25 inch)
-
610-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
742600A09 CONTROLLER ASSEMBLYCONTROLLER ASSEMBLY
-
811-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
912-21273 WASHERWASHER
-
1011-46438 NUT, (#10-32)NUT, (#10-32)
-
11806138T BRACKET
(USED ON MCM 7.3L DIESEL)BRACKET
(USED ON MCM 7.3L DIESEL)
