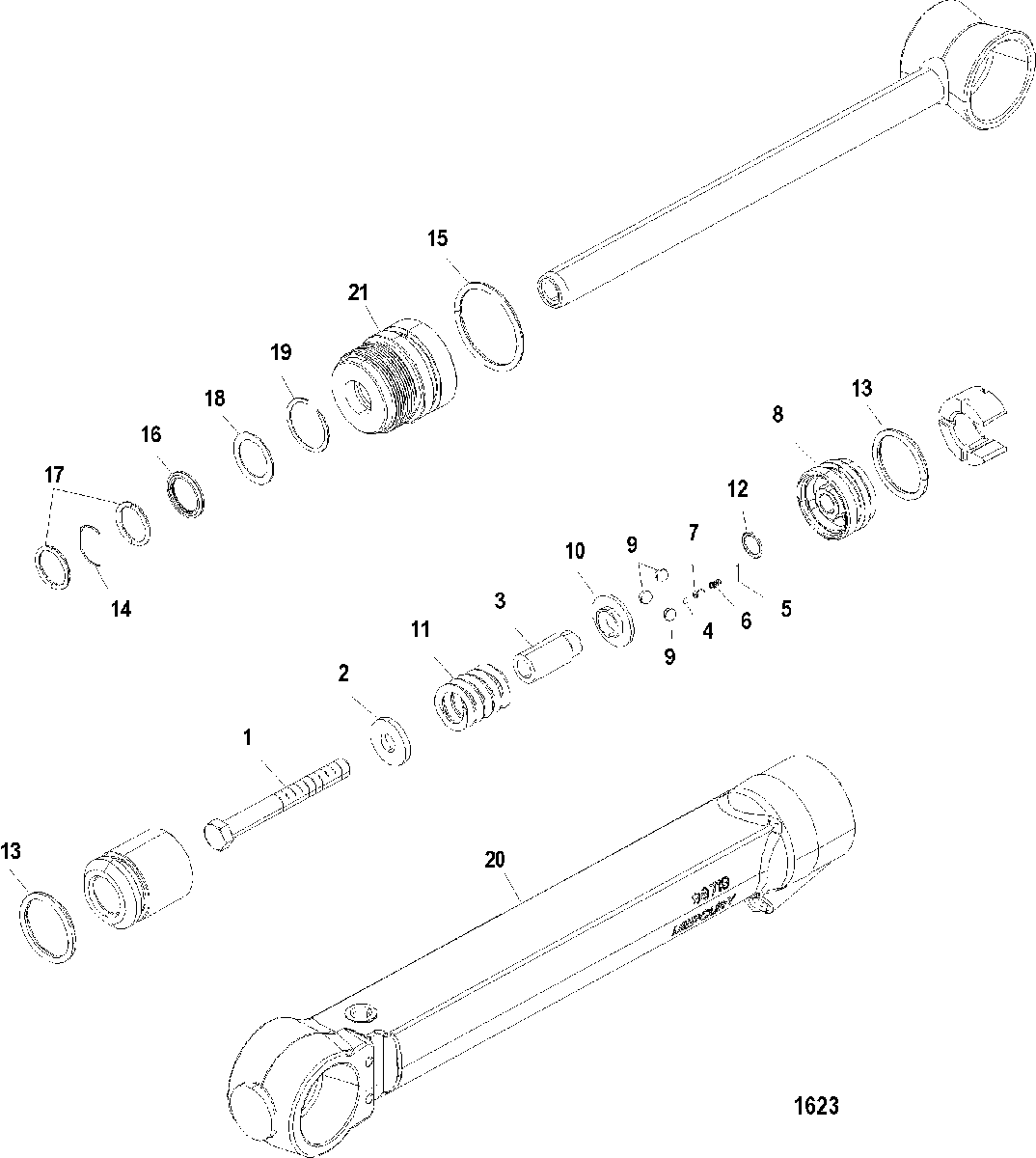

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
--87399A2 OVERHAUL KITOVERHAUL KIT
-
1N.S.S. Not Sold Separate, SCREWNot Sold Separate, SCREW
-
2N.S.S. Not Sold Separate, WASHERNot Sold Separate, WASHER
-
3N.S.S. Not Sold Separate, GUIDENot Sold Separate, GUIDE
-
4N.S.S. Not Sold Separate, STEEL BALL (.109 Diameter)Not Sold Separate, STEEL BALL (.109 Diameter)
-
5N.S.S. Not Sold Separate, PINNot Sold Separate, PIN
-
6N.S.S. Not Sold Separate, SPRINGNot Sold Separate, SPRING
-
7N.S.S. Not Sold Separate, EYELETNot Sold Separate, EYELET
-
8N.S.S. Not Sold Separate, PISTONNot Sold Separate, PISTON
-
9N.S.S. Not Sold Separate, BALL (.250 Diameter)Not Sold Separate, BALL (.250 Diameter)
-
10N.S.S. Not Sold Separate, PUSHERNot Sold Separate, PUSHER
-
11N.S.S. Not Sold Separate, SPRINGNot Sold Separate, SPRING
-
--25-87400A2 SEAL KITSEAL KIT
-
12N.S.S. Not Sold Separate, O-RINGNot Sold Separate, O-RING
-
13N.S.S. Not Sold Separate, O-RINGNot Sold Separate, O-RING
-
14N.S.S. Not Sold Separate, SPRINGNot Sold Separate, SPRING
-
15N.S.S. Not Sold Separate, O-RINGNot Sold Separate, O-RING
-
16N.S.S. Not Sold Separate, SCRAPER RODNot Sold Separate, SCRAPER ROD
-
17N.S.S. Not Sold Separate, O-RINGNot Sold Separate, O-RING
-
18N.S.S. Not Sold Separate, WASHERNot Sold Separate, WASHER
-
19N.S.S. Not Sold Separate, RETAINING RINGNot Sold Separate, RETAINING RING
-
2098703T TUBE, Port CylinderTUBE, Port Cylinder
-
2098704T TUBE, Starboard CylinderTUBE, Starboard Cylinder
-
2198-8M0118340 CAPCAP
