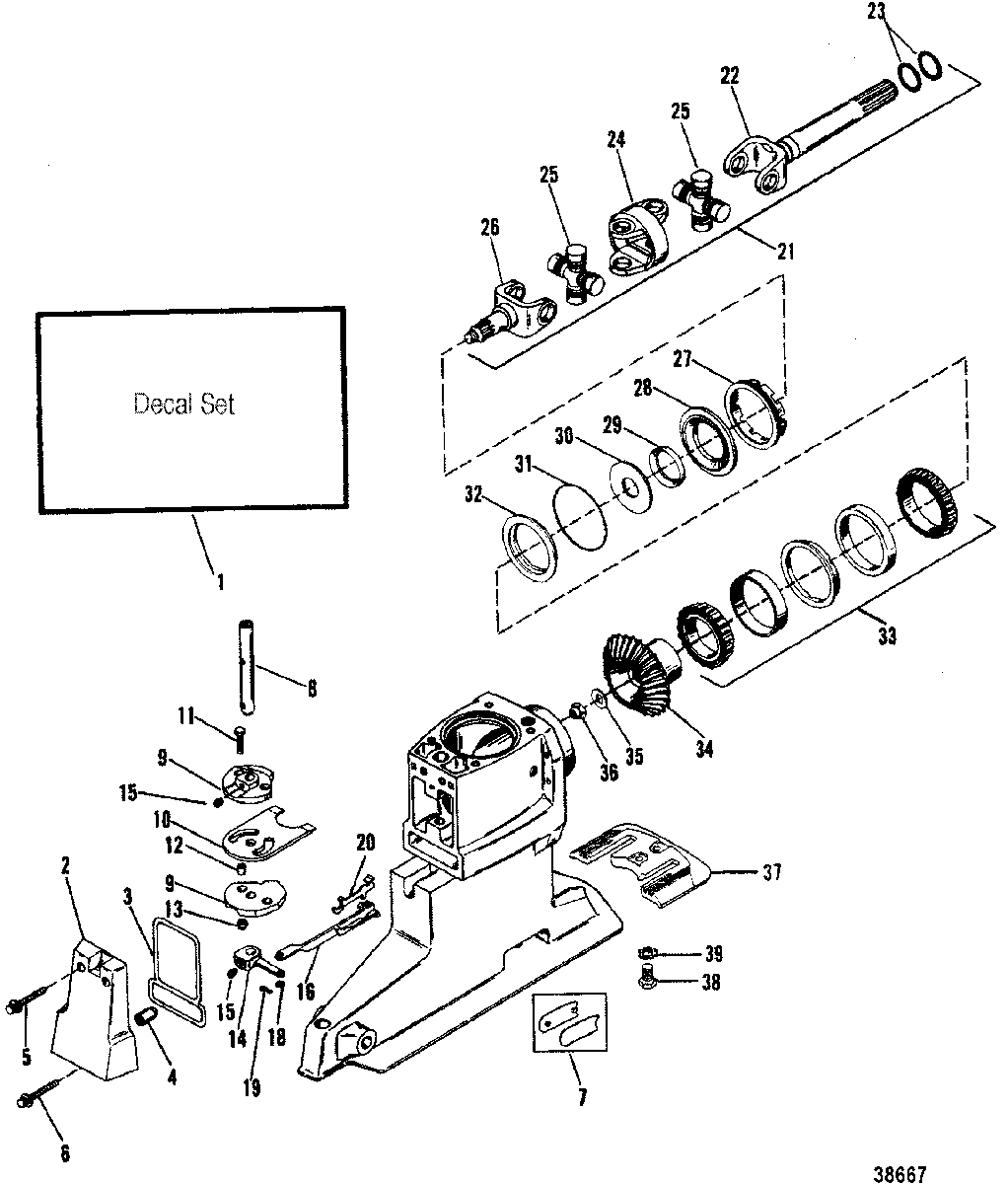

UNIVERSAL JOINT/SHIFTER COMPONENTS для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
137-15167A90 DECAL SET
(BRAVO I)DECAL SET
(BRAVO I) -
137-13722A90 DECAL SET
(BRAVO II)DECAL SET
(BRAVO II) -
137-805338A93 DECAL SET
(BRAVO III)DECAL SET
(BRAVO III) -
212717A1 COVER ASSEMBLY, RearCOVER ASSEMBLY, Rear
-
312708 SEALSEAL
-
4865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
510-8M0113174 SCREW, (.375-16 x 1.25)SCREW, (.375-16 x 1.25)
-
610-87158 SCREW, (.375-16 x 1.875)SCREW, (.375-16 x 1.875)
-
7805261A1 WEAR PAD KITWEAR PAD KIT
-
812711 SHAFTSHAFT
-
9NSS NOT SOLD SEPARATE, Shifter Cam (Part of Gear Kit)
SN# 0F345867 & BelowNOT SOLD SEPARATE, Shifter Cam (Part of Gear Kit)
SN# 0F345867 & Below -
952-807375A1 CLUTCH AND CAM KIT
(Refer to Service Bulletin 2001-17 for Replacement Parts) SN# 0F345868 & UpCLUTCH AND CAM KIT
(Refer to Service Bulletin 2001-17 for Replacement Parts) SN# 0F345868 & Up -
10NSS NOT SOLD SEPARATE, Shifter Yoke (Part of Gear Kit)
SN# 0F345867 & BelowNOT SOLD SEPARATE, Shifter Yoke (Part of Gear Kit)
SN# 0F345867 & Below -
10NSS NOT SOLD SEPARATE, Shifter Yoke
SN# 0F345868 & UpNOT SOLD SEPARATE, Shifter Yoke
SN# 0F345868 & Up -
1110-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1110-64253 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
1223-12706 SPACER, (.194 x .375)SPACER, (.194 x .375)
-
1311-826709109 NUT, (.250-28)NUT, (.250-28)
-
14861175A2 LEVER, ShiftLEVER, Shift
-
1510-38615 SCREW, (.250-28 x .750)
(Shift Lever)SCREW, (.250-28 x .750)
(Shift Lever) -
1510-805543 SCREW, (1.25 inch)
(Shift Cam)SCREW, (1.25 inch)
(Shift Cam) -
16861175A2 LINK BARLINK BAR
-
1812-20583 WASHERWASHER
-
1918-210711 COTTER PINCOTTER PIN
-
2086776 LATCHLATCH
-
21864244A2 UNIVERSAL JOINT, Coupling Yoke Has 2 O-RingsUNIVERSAL JOINT, Coupling Yoke Has 2 O-Rings
-
2259830A7 YOKE ASSEMBLY, Coupling Yoke Has 2 O-RingsYOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
-
2325-25439 O-RING, (.862 x .103), Coupling Yoke Has 2 O-RingsO-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
-
24393831 SOCKET, Center, Coupling Yoke Has 2 O-RingsSOCKET, Center, Coupling Yoke Has 2 O-Rings
-
2575832T1 CROSS AND BEARING, Coupling Yoke Has 2 O-RingsCROSS AND BEARING, Coupling Yoke Has 2 O-Rings
-
2612784 YOKE, Gear End (Coupling Yoke Has 2 O-Rings)YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
-
21864244A2 UNIVERSAL JOINT ASSEMBLY, Coupling Yoke Has 2 O-RingsUNIVERSAL JOINT ASSEMBLY, Coupling Yoke Has 2 O-Rings
-
2259830A7 YOKE ASSEMBLY, Coupling Yoke Has 2 O-RingsYOKE ASSEMBLY, Coupling Yoke Has 2 O-Rings
-
2325-25439 O-RING, (.862 x .103), Coupling Yoke Has 2 O-RingsO-RING, (.862 x .103), Coupling Yoke Has 2 O-Rings
-
2325-35027 O-RING, (1.046), Coupling Yoke Has 2 O-RingsO-RING, (1.046), Coupling Yoke Has 2 O-Rings
-
24393831 SOCKET, Center, Coupling Yoke Has 2 O-RingsSOCKET, Center, Coupling Yoke Has 2 O-Rings
-
2575832T1 CROSS AND BEARING (COUPLING YOKE HAS 3 O-RINGS)CROSS AND BEARING (COUPLING YOKE HAS 3 O-RINGS)
-
2612784 YOKE, Gear End (Coupling Yoke Has 2 O-Rings)YOKE, Gear End (Coupling Yoke Has 2 O-Rings)
-
2711-92004 RING NUTRING NUT
-
2886779A1 CARRIER ASSEMBLY, SealCARRIER ASSEMBLY, Seal
-
2926-807006 SEAL, OilSEAL, Oil
-
3012-41613 WASHERWASHER
-
3125-861844 O-RING, (3.609 x .139)O-RING, (3.609 x .139)
-
3286780 RING, SealingRING, Sealing
-
3331-8M0103472 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3443-826642T GEAR (1.50:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
(27 TEETH - MATES WITH 32 TOOTH DRIVE GEAR)GEAR (1.50:1 - 2.00:1 Ratio) (1.65:1 Ratio/BRAVO III)
(27 TEETH - MATES WITH 32 TOOTH DRIVE GEAR) -
3443-815661T GEAR, Pinion (1.81:1 - 1.36:1 Ratio)
(27 TEETH - MATES WITH 29 TOOTH DRIVE GEAR)GEAR, Pinion (1.81:1 - 1.36:1 Ratio)
(27 TEETH - MATES WITH 29 TOOTH DRIVE GEAR) -
3443-818664 GEAR, Pinion (2.20:1 Ratio) (1.65:1 Ratio/BRAVO I)
(23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR)GEAR, Pinion (2.20:1 Ratio) (1.65:1 Ratio/BRAVO I)
(23 TEETH - MATES WITH 30 TOOTH DRIVE GEAR) -
3512-44539 WASHERWASHER
-
3611-22339 NUT, (.625-18)NUT, (.625-18)
-
3797-821630Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
3810-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3913-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
-26-16709A2 SEAL KITSEAL KIT
