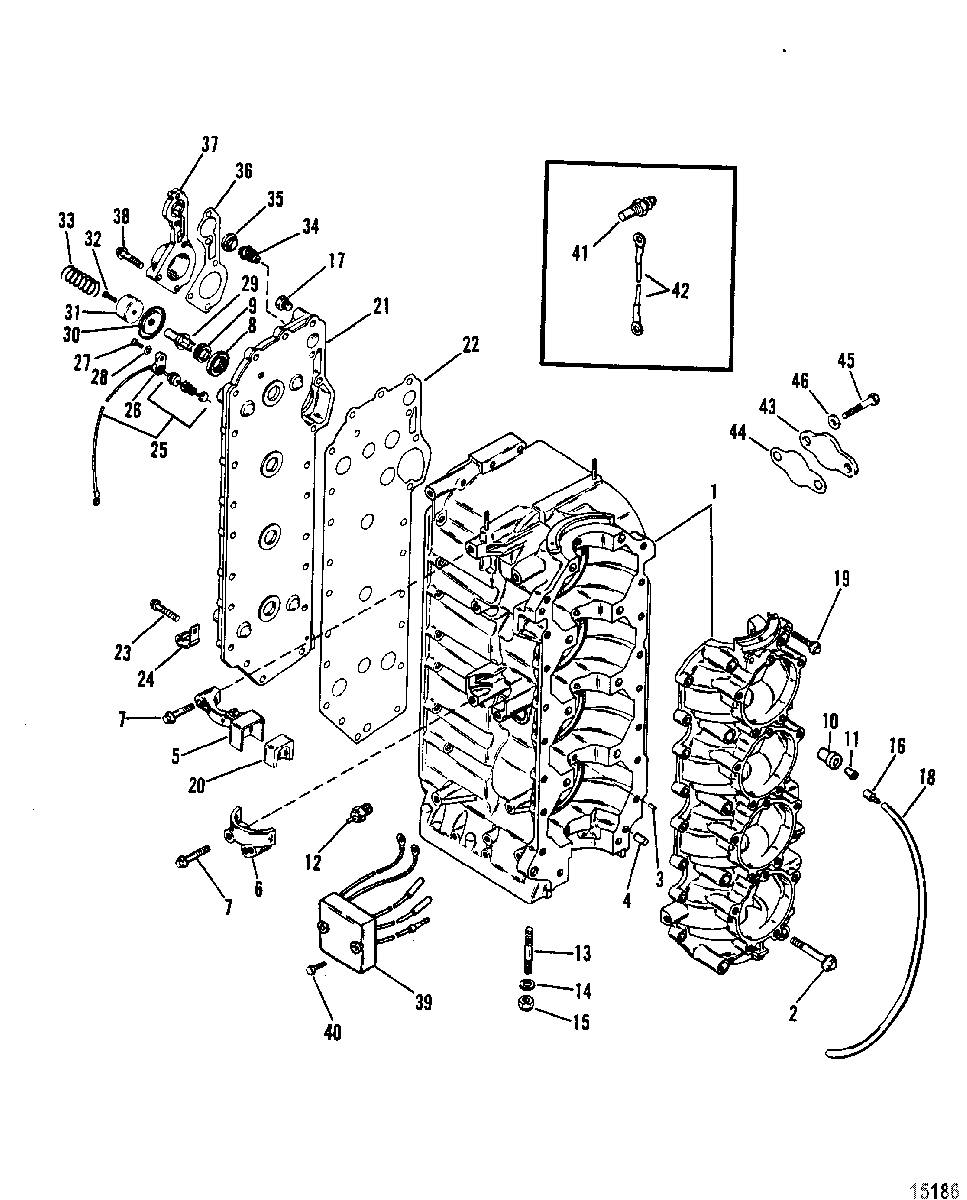

Cylinder Block And Crankcase для Mercury - 100 (4 CYL.) 0B209468 THRU 0D283221
-
№АртикулНазвание
-
1877-9191T13 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
210-4009680 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
317-8M0036405 PIN, Bearing RacePIN, Bearing Race
-
417-43044 PIN, DowelPIN, Dowel
-
5428842 COVER, TopCOVER, Top
-
676867 COVER, BottomCOVER, Bottom
-
710-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
865848 CARRIERCARRIER
-
925-64872 GROMMETGROMMET
-
1022-814204A1 BLEED SYSTEM KIT
SN# 00000000 THRU 00221999BLEED SYSTEM KIT
SN# 00000000 THRU 00221999 -
10813801A1 CARRIER ASSEMBLY
SN# 00222000 THRU 09999999CARRIER ASSEMBLY
SN# 00222000 THRU 09999999 -
1121-42657A3 CHECK VALVECHECK VALVE
-
1221-891664 CHECK VALVECHECK VALVE
-
1316-821676A1 STUD, (M6)STUD, (M6)
-
1412-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
1511-40140 NUT, (M10)NUT, (M10)
-
1621-426233 CHECK VALVE, Press-InCHECK VALVE, Press-In
-
1722-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
1832-892024122 TUBING, (20.00 Feet Bulk)TUBING, (20.00 Feet Bulk)
-
1910-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2099162001 BOOTBOOT
-
211035-9196A2 COVERCOVER
-
2227-443284 GASKETGASKET
-
2310-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2454-814634 CLAMPCLAMP
-
2578799 SENDER, Temperature (19.50 Inch)SENDER, Temperature (19.50 Inch)
-
25787991 SENDER, Temperature (37.50 Inch)SENDER, Temperature (37.50 Inch)
-
26889733 RETAINERRETAINER
-
2710-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2986596T POPPET VALVEPOPPET VALVE
-
30648771 DIAPHRAGMDIAPHRAGM
-
3112-94182 WASHERWASHER
-
3210-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
3324-42996 SPRINGSPRING
-
3475692 THERMOSTAT (143 Degrees)THERMOSTAT (143 Degrees)
-
3414586 THERMOSTAT (120 Degrees)THERMOSTAT (120 Degrees)
-
3527-62386001 GASKETGASKET
-
3627-430068 GASKETGASKET
-
378M0047619 COVERCOVER
-
3810-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3810-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3914857A16 MODULE ASSEMBLY, Oil WarningMODULE ASSEMBLY, Oil Warning
-
4010-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
4112415 SENDER, TemperatureSENDER, Temperature
-
4284-88824A6 CABLE ASSEMBLY, Sea Ray/ PowerboatCABLE ASSEMBLY, Sea Ray/ Powerboat
-
4312621 COVERCOVER
-
4427-126201 GASKETGASKET
-
4510-40007106 SCREW, (M5 x 13)SCREW, (M5 x 13)
-
4612-4002314 WASHERWASHER
