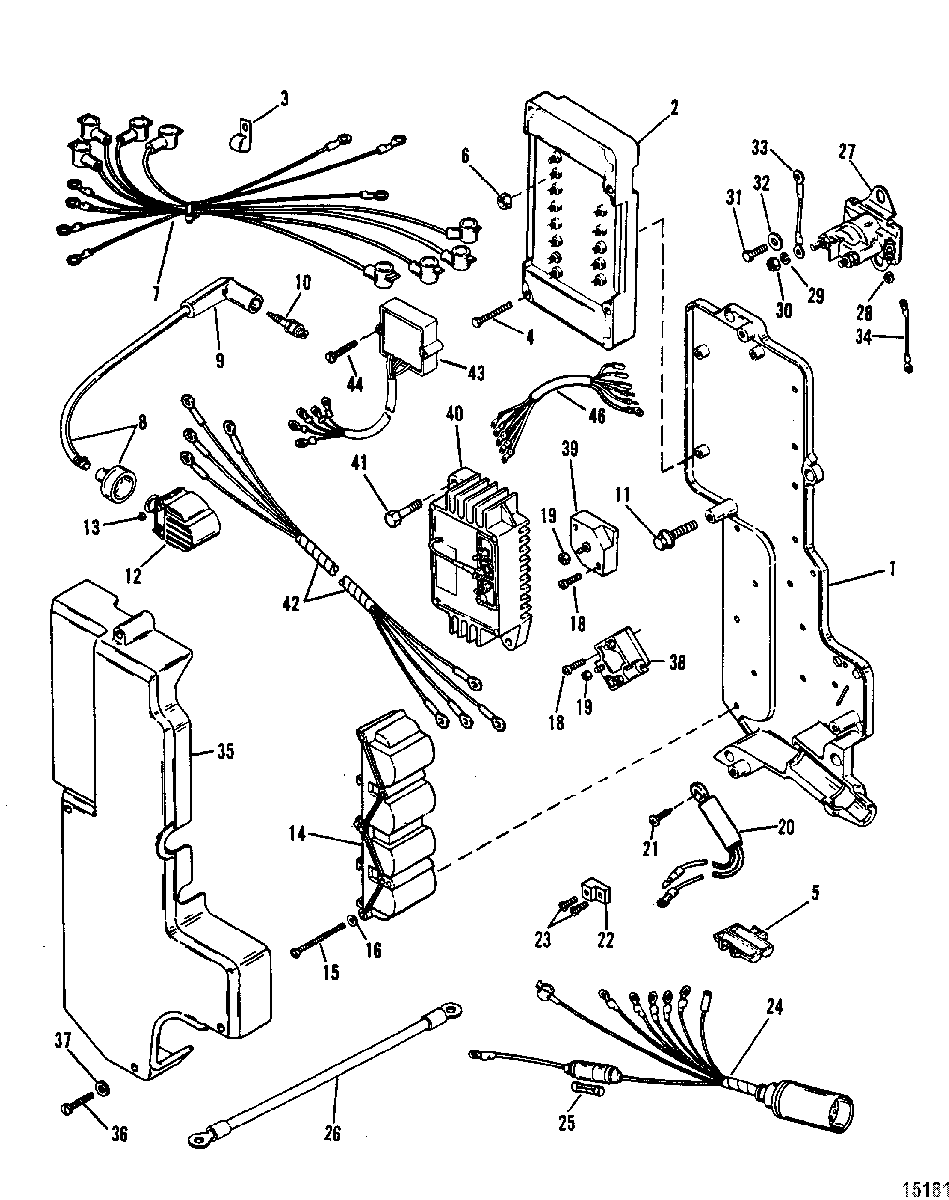

Electrical Components для Mercury - 100 (4 CYL.) 0B209468 THRU 0D283221
-
№АртикулНазвание
-
1443314 IGNITION PLATEIGNITION PLATE
-
2332-5772A7 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
354-63153 J CLIPJ CLIP
-
410-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
5134731 HOLDER, Fuse, Old DesignHOLDER, Fuse, Old Design
-
611-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
784-43442A3 HARNESS ASSEMBLY, PrimaryHARNESS ASSEMBLY, Primary
-
884-813715A8 CABLE SET, IgnitionCABLE SET, Ignition
-
985-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1033-97180Q SPARK PLUG
(NGK #BUHW)SPARK PLUG
(NGK #BUHW) -
1033-14103550 SPARK PLUG, (NGK-BUZHW)
(Canda/Belguim NGK #BUZHW)SPARK PLUG, (NGK-BUZHW)
(Canda/Belguim NGK #BUZHW) -
1033-816737Q SPARK PLUG
(NGK #BP8H-N-10) RFI Suppression)SPARK PLUG
(NGK #BP8H-N-10) RFI Suppression) -
1033-816837Q SPARK PLUG
(Canda/Belguim NGK #BPZ8H-N-10) RFI Suppression)SPARK PLUG
(Canda/Belguim NGK #BPZ8H-N-10) RFI Suppression) -
1110-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
12339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
1311-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
1487554 COVERCOVER
-
1510-40007114 SCREW, (M5 x 50)SCREW, (M5 x 50)
-
1612-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1810-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1945067 NUTNUT
-
2016731T01 MERCURY SWITCH, Old DesignMERCURY SWITCH, Old Design
-
2110-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2286-45915 TERMINAL BLOCKTERMINAL BLOCK
-
2310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
2484-43443A3 HARNESS ASSEMBLY, Engine Wiring
SN# D252460 & BelowHARNESS ASSEMBLY, Engine Wiring
SN# D252460 & Below -
2484-43443A9 HARNESS ASSEMBLY, Engine Wiring
SN# D25461 & UpHARNESS ASSEMBLY, Engine Wiring
SN# D25461 & Up -
2588-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2684-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2684-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
2789-850187T1 SOLENOID, Starter (#8-32/.250-20 Terminals)SOLENOID, Starter (#8-32/.250-20 Terminals)
-
2811-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
2913-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3011-64015 NUT, (.250-20)NUT, (.250-20)
-
2789-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
-23-818968 BUSHINGBUSHING
-
2811-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2913-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
3011-68292 NUT, (.312-18)NUT, (.312-18)
-
3110-40007106 SCREW, (M5 x 13)SCREW, (M5 x 13)
-
3212-4002314 WASHERWASHER
-
3384-88807A6 CABLE ASSEMBLY, (3.50 Inches) BlackCABLE ASSEMBLY, (3.50 Inches) Black
-
3484-88808A21 WIRE ASSEMBLY, (6.00 Inches), RedWIRE ASSEMBLY, (6.00 Inches), Red
-
3484-88808A18 WIRE ASSEMBLY, (3.00 Inches), RedWIRE ASSEMBLY, (3.00 Inches), Red
-
3513550T1 COVERCOVER
-
3610-40007114 SCREW, (M5 x 50) Stainless SteelSCREW, (M5 x 50) Stainless Steel
-
3610-40011110 SCREW, (M5 x 30) Stainless SteelSCREW, (M5 x 30) Stainless Steel
-
3712-89302 WASHER, (.203 x .406 x .040), Use Where ApplicableWASHER, (.203 x .406 x .040), Use Where Applicable
-
388M0058226 RECTIFIERRECTIFIER
-
3917602A1 TERMINAL BLOCK, Black, See NoteTERMINAL BLOCK, Black, See Note
-
3917602T02 TERMINAL BLOCK, Gray, See NoteTERMINAL BLOCK, Gray, See Note
-
40815279A2 VOLTAGE REGULATOR KIT
(Use With Black Terminal Block)VOLTAGE REGULATOR KIT
(Use With Black Terminal Block) -
4110-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
4284-12201A2 HARNESS ASSEMBLY
(Use With Black Terminal Block)HARNESS ASSEMBLY
(Use With Black Terminal Block) -
43815279A2 VOLTAGE REGULATOR KIT
(5 Ring Terminals)VOLTAGE REGULATOR KIT
(5 Ring Terminals) -
438M0084173 REGULATOR, Voltage
(2 Females/3 Male Terminals)REGULATOR, Voltage
(2 Females/3 Male Terminals) -
4410-4010635 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
4684-821546A3 HARNESS ASSEMBLY
(Use With 815279--3 Voltage Regulator)HARNESS ASSEMBLY
(Use With 815279--3 Voltage Regulator)
