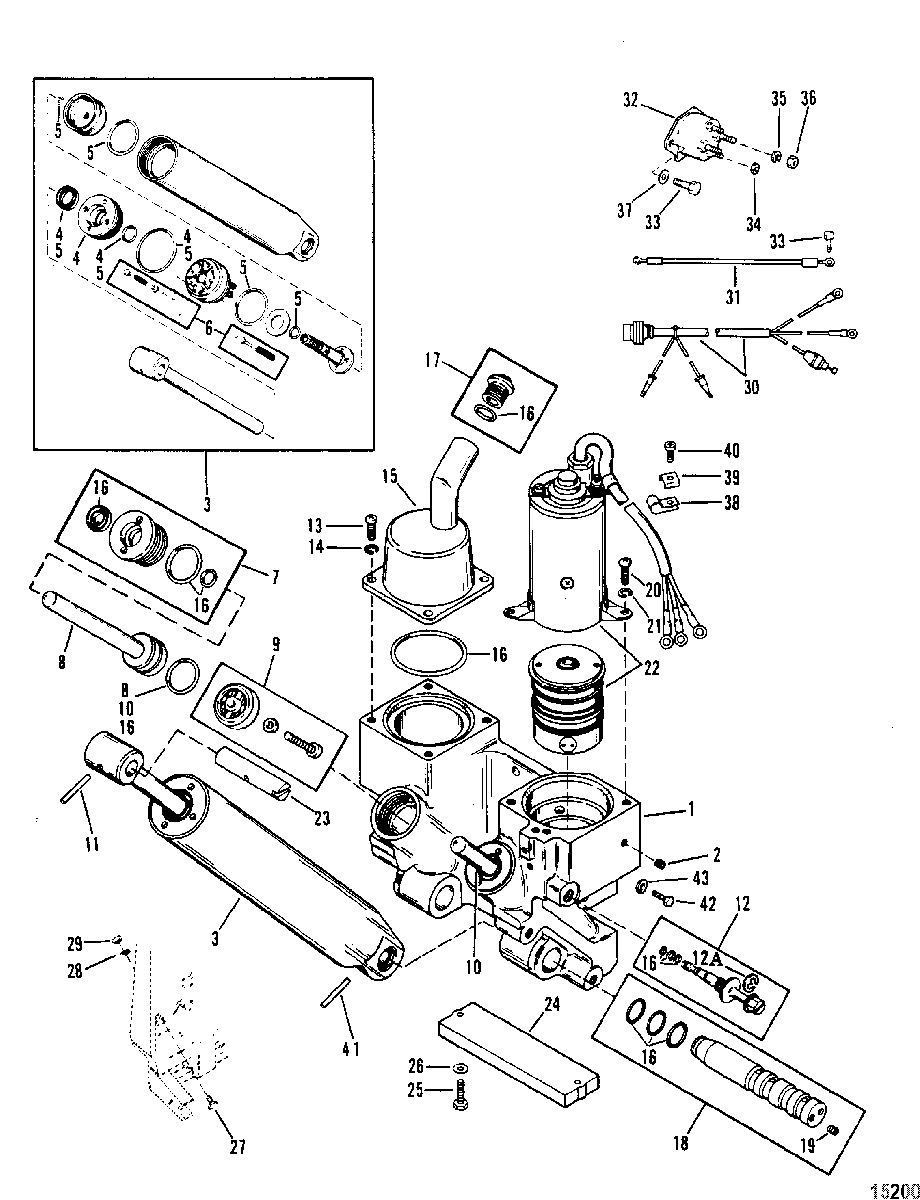

Power Trim Components(Three Ram Power Trim Design I) для Mercury - 100 (4 CYL.) 0B209468 THRU 0D283221
-
№АртикулНазвание
-
199659A21 MANIFOLD ASSEMBLY, BlackMANIFOLD ASSEMBLY, Black
-
199659A22 MANIFOLD ASSEMBLY, GrayMANIFOLD ASSEMBLY, Gray
-
199659A22 MANIFOLD ASSEMBLY, OysterMANIFOLD ASSEMBLY, Oyster
-
222-56800 PIPE PLUGPIPE PLUG
-
341493A7 TRIM CYLINDER ASSEMBLY, BlackTRIM CYLINDER ASSEMBLY, Black
-
341493A7 TRIM CYLINDER ASSEMBLY, GrayTRIM CYLINDER ASSEMBLY, Gray
-
341493A7 TRIM CYLINDER ASSEMBLY, OysterTRIM CYLINDER ASSEMBLY, Oyster
-
441492A1 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
525-41478A1 REPAIR KITREPAIR KIT
-
641482A2 CHECK VALVE KITCHECK VALVE KIT
-
71100-8M0021648 GUIDE ASSEMBLYGUIDE ASSEMBLY
-
8878413A1 PISTON/ROD ASSEMBLY, Power Trim, PortPISTON/ROD ASSEMBLY, Power Trim, Port
-
935-12184A1 TRIM FILTER ASSEMBLYTRIM FILTER ASSEMBLY
-
10878414T01 PISTON/ROD ASSEMBLY, Power Trim, StarboardPISTON/ROD ASSEMBLY, Power Trim, Starboard
-
1117-821539 PIN, Trilobe, UpperPIN, Trilobe, Upper
-
12893929A01 VALVE ASSEMBLYVALVE ASSEMBLY
-
12A53-815949001 E RINGE RING
-
1310-4000327 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1412-4002315 WASHERWASHER
-
1599642 COVERCOVER
-
1625-48462A4 O-RING KITO-RING KIT
-
1719-99609A1 PLUG ASSEMBLYPLUG ASSEMBLY
-
1899641A02 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
1922-56800 PIPE PLUGPIPE PLUG
-
2010-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
22826729A10 PUMP ASSEMBLY, Power Trim
(Refer To Power Trim Pump Section For Breakdown)PUMP ASSEMBLY, Power Trim
(Refer To Power Trim Pump Section For Breakdown) -
2399625002 SHAFTSHAFT
-
2497-818298Q1 ANODE KITANODE KIT
-
2510-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
278M0045383 STRIKER PLATESTRIKER PLATE
-
2813-58643 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2911-46335 NUT, (.375-24)NUT, (.375-24)
-
3084-17201A2 CABLE ASSEMBLY, (17.00 Inches)CABLE ASSEMBLY, (17.00 Inches)
-
3184-87379A34 WIRE, (4.25 Inch) RedWIRE, (4.25 Inch) Red
-
3184-88807A6 CABLE ASSEMBLY, (3.50 Inches) BlackCABLE ASSEMBLY, (3.50 Inches) Black
-
3184-79139A22 WIRE ASSEMBLYWIRE ASSEMBLY
-
3289-850187T1 SOLENOID, Starter (#8-32/.250-20 Terminals)SOLENOID, Starter (#8-32/.250-20 Terminals)
-
3310-40007106 SCREW, (M5 x 13)SCREW, (M5 x 13)
-
3411-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
3513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
3611-64015 NUT, (.250-20)NUT, (.250-20)
-
3712-4002314 WASHERWASHER
-
3854-22875 CLIPCLIP
-
398M0084613 C WASHERC WASHER
-
4010-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
4117-878267 PIN, Groove, LowerPIN, Groove, Lower
-
4210-4000377 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
4313-400258 LOCKWASHER, (M10) Stainless SteelLOCKWASHER, (M10) Stainless Steel
