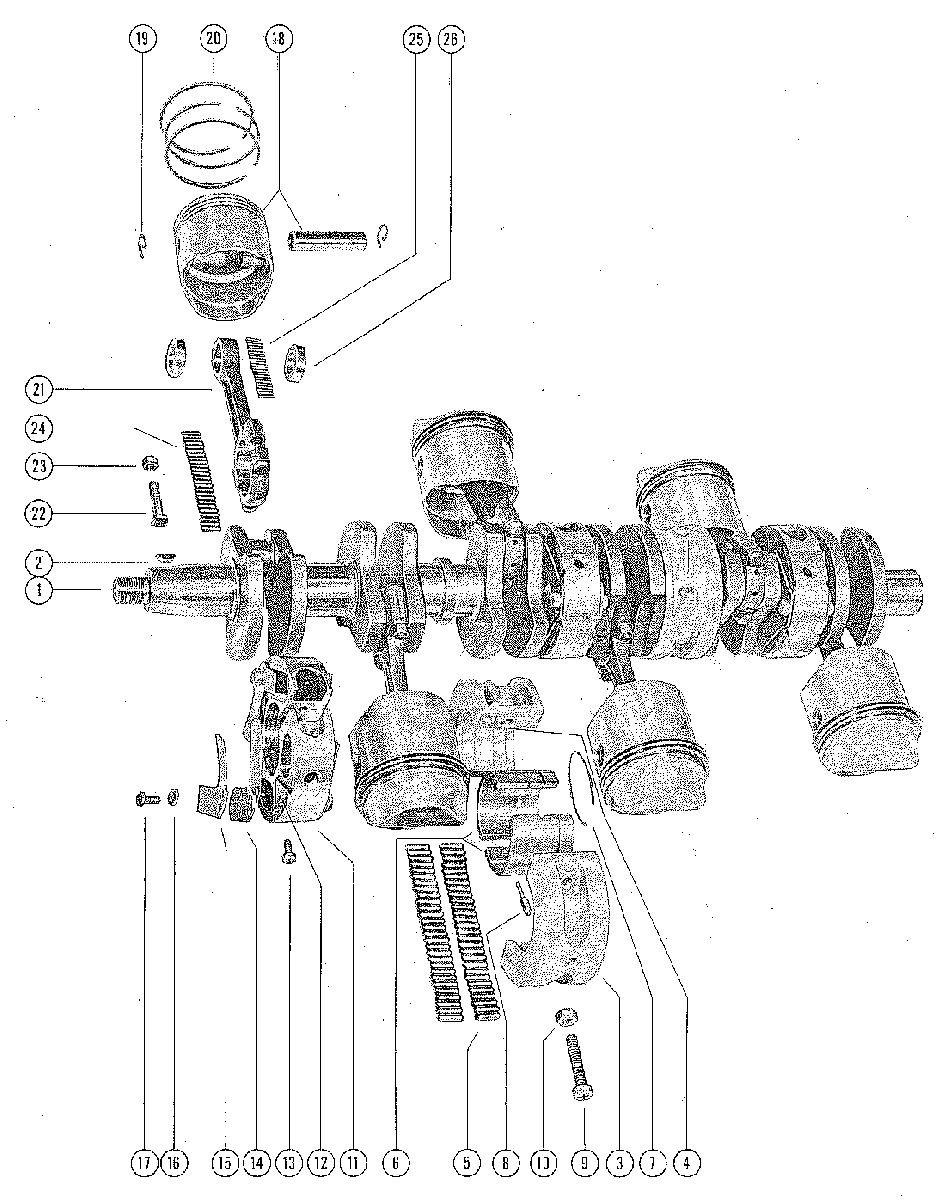

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
1420-3351A3 CRANKSHAFTCRANKSHAFT
-
228-45554 KEY, FLYWHEEL DRKEY, FLYWHEEL DR
-
3531-1884A3 CENTER MAIN BEARING ASSEMBLYCENTER MAIN BEARING ASSEMBLY
-
417-20032 DOWEL PIN, CENTER MAIN BEARINGDOWEL PIN, CENTER MAIN BEARING
-
529-714221 BEARING, NEEDLE - OUTER RACEBEARING, NEEDLE - OUTER RACE
-
626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
753-26933 RING, SNAP - OUTER RACERING, SNAP - OUTER RACE
-
817-31245 DOWEL PIN, STEPPEDDOWEL PIN, STEPPED
-
937-29968 SCREW, CENTER MAIN BEARING CLAMPINGSCREW, CENTER MAIN BEARING CLAMPING
-
1011-20184 NUT, BEARING CLAMPING SCREWNUT, BEARING CLAMPING SCREW
-
11533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPE (BRONZE)MAIN BEARING ASSEMBLY, VALVE TYPE (BRONZE)
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-30259 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
11533-2761A3 MAIN BEARING ASSEMBLY, VALVE TYPE (ALUMINUM)MAIN BEARING ASSEMBLY, VALVE TYPE (ALUMINUM)
-
1217-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
1310-25313 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
--11-29469 NUT, MAIN BEARING CLAMPING SCREWNUT, MAIN BEARING CLAMPING SCREW
-
1434-32203A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1534-64632 REED STOP, MAIN BEARING REED VALVESREED STOP, MAIN BEARING REED VALVES
-
1612-26014 WASHER, REED STOP MOUNTING SCREW- BRONZE MAIN BEARINGWASHER, REED STOP MOUNTING SCREW- BRONZE MAIN BEARING
-
1710-20055 SCREW, REED STOP MOUNTING - BRONZE MAIN BEARINGSCREW, REED STOP MOUNTING - BRONZE MAIN BEARING
-
1710-77280 SCREW, REED STOP MOUNTING -ALUMINUM MAIN BEARINGSCREW, REED STOP MOUNTING -ALUMINUM MAIN BEARING
-
--48-29468 NUT, REED STOP MOUNTING SCREW -ALUMINUM MAIN BEARINGNUT, REED STOP MOUNTING SCREW -ALUMINUM MAIN BEARING
-
18732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
1940-32118 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2039-31329A12 RING, PISTON (3/32" THICK)RING, PISTON (3/32" THICK)
-
18732-2735A2 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
1940-32118 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2039-32921A12 RING, PISTON (5/64" THICK)RING, PISTON (5/64" THICK)
-
21611-1885A4 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2210-45379 SCREW, CONNECTING RODSCREW, CONNECTING ROD
-
2311-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
2429-47897 BEARING, NEEDLE - CRANKPINBEARING, NEEDLE - CRANKPIN
-
2529-39656 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2612-29681 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
-
--732-2739A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIZE)
-
--39-32120A12 RING, PISTON (.015 OVERSIZE) - 3/32" THICKRING, PISTON (.015 OVERSIZE) - 3/32" THICK
-
--732-2739A2 PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIVE)PISTON AND PISTON PIN ASSEMBLY (.015 OVERSIVE)
-
--39-33945A12 RING, PISTON (.015 OVERSIZE) - 5/64" THICKRING, PISTON (.015 OVERSIZE) - 5/64" THICK
