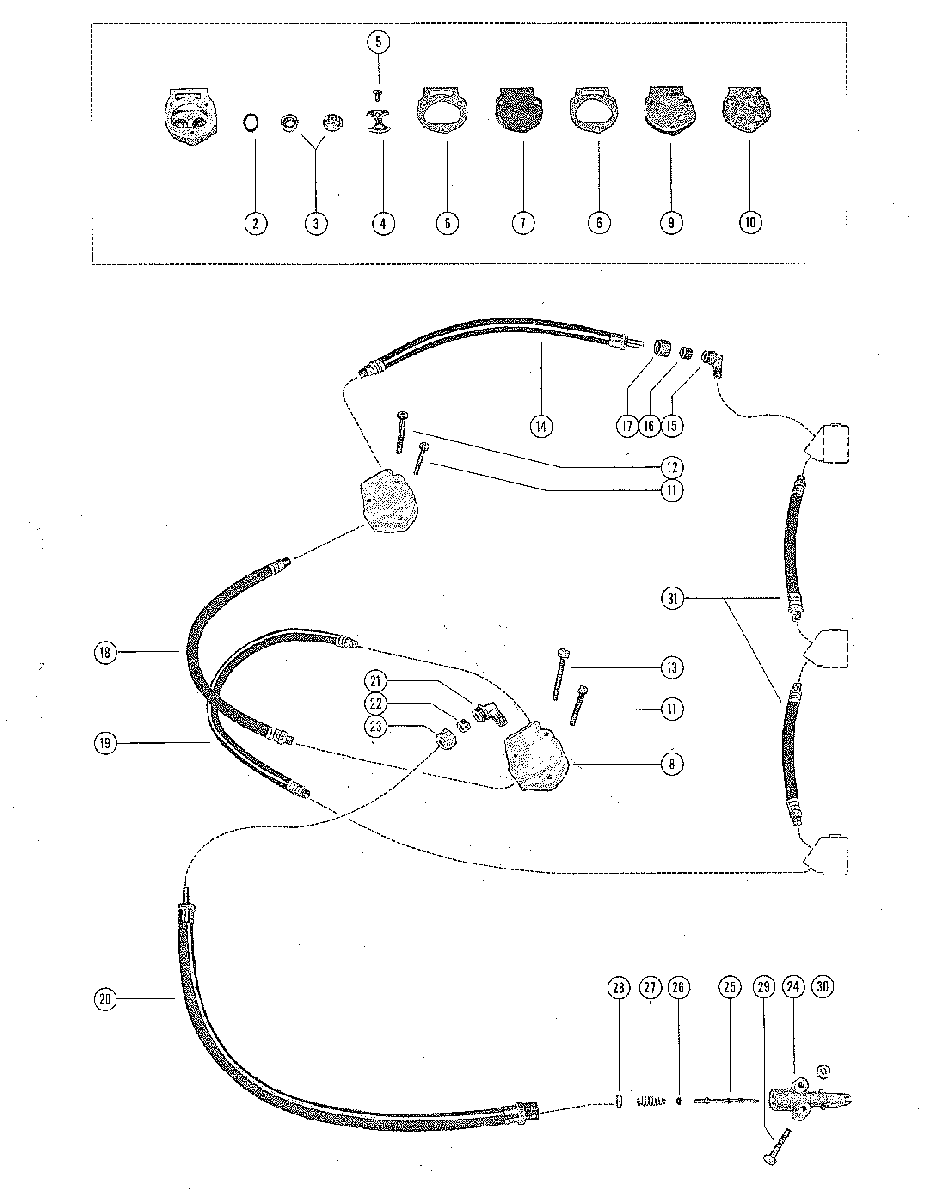

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 1000 1464949 THRU 1768403
-
№АртикулНазвание
-
130269A2 FUEL PUMP ASSEMBLY - UPPERFUEL PUMP ASSEMBLY - UPPER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK - FUEL PUMPVALVE, CHECK - FUEL PUMP
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
830461A2 FUEL PUMP ASSEMBLY - LOWERFUEL PUMP ASSEMBLY - LOWER
-
227-23005 GASKET, CHECK VALVE TO HOUSINGGASKET, CHECK VALVE TO HOUSING
-
321-8M0082362 VALVE, CHECK - FUEL PUMPVALVE, CHECK - FUEL PUMP
-
423004 RETAINER, CHECK VALVERETAINER, CHECK VALVE
-
510-43725 SCREW, RETAINER TO HOUSINGSCREW, RETAINER TO HOUSING
-
627-24863 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
723014 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
930275 COVER, FUEL PUMPCOVER, FUEL PUMP
-
1027-30276 GASKET, FUEL PUMP COVERGASKET, FUEL PUMP COVER
-
1110-29878 SCREW, FUEL PUMP MOUNTING (1 1/2")SCREW, FUEL PUMP MOUNTING (1 1/2")
-
1210-30274 SCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMPSCREW, FUEL PUMP MOUNTING (1 3/4") - UPPER PUMP
-
1310-30273 SCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMPSCREW, FUEL PUMP MOUNTING (1 7/8") - LOWER PUMP
-
1432-32256A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (11 7/8")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (11 7/8")
-
1432-32256A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (9 7/8")
-
1522-30174 ELBOW, UPPER CARBURETOR STRAINER COVERELBOW, UPPER CARBURETOR STRAINER COVER
-
1622-30175 SLEEVE, CARBURETOR STRAINER COVER ELBOWSLEEVE, CARBURETOR STRAINER COVER ELBOW
-
1722-30177 NUT, UPPER CARBURETOR STRAINER COVER ELBOWNUT, UPPER CARBURETOR STRAINER COVER ELBOW
-
1832-31552A1 FUEL LINE ASSEMBLY, PUMP TO PUMP (12 3/8")FUEL LINE ASSEMBLY, PUMP TO PUMP (12 3/8")
-
1932-31553A1 FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (19 3/4")FUEL LINE ASSEMBLY, PUMP TO CARBURETOR (19 3/4")
-
2032-30176 FUEL LINE, ADAPTOR TO LOWER FUEL PUMPFUEL LINE, ADAPTOR TO LOWER FUEL PUMP
-
2122-30174 ELBOW, LOWER FUEL PUMP INLETELBOW, LOWER FUEL PUMP INLET
-
2222-30175 SLEEVE, FUEL PUMP INLET ELBOWSLEEVE, FUEL PUMP INLET ELBOW
-
2322-30177 NUT, FUEL PUMP INLET ELBOWNUT, FUEL PUMP INLET ELBOW
-
2430186 ADAPTOR, CHECK UNIT (FUEL LINE)ADAPTOR, CHECK UNIT (FUEL LINE)
-
2530185Q3 STEM, CHECK UNIT ADAPTORSTEM, CHECK UNIT ADAPTOR
-
2625-16524 "O" RING, ADAPTOR STEM"O" RING, ADAPTOR STEM
-
2724-30189 SPRING, ADAPTOR STEMSPRING, ADAPTOR STEM
-
2830188 CUP WASHER, ADAPTORCUP WASHER, ADAPTOR
-
2910-56500 SCREW, ADAPTOR TO BOTTOM COWLSCREW, ADAPTOR TO BOTTOM COWL
-
3011-20184 NUT, ADAPTOR FASTENING SCREWNUT, ADAPTOR FASTENING SCREW
-
3132-31550A1 FUEL LINE ASSEMBLY, CARBURETOR (6")FUEL LINE ASSEMBLY, CARBURETOR (6")
